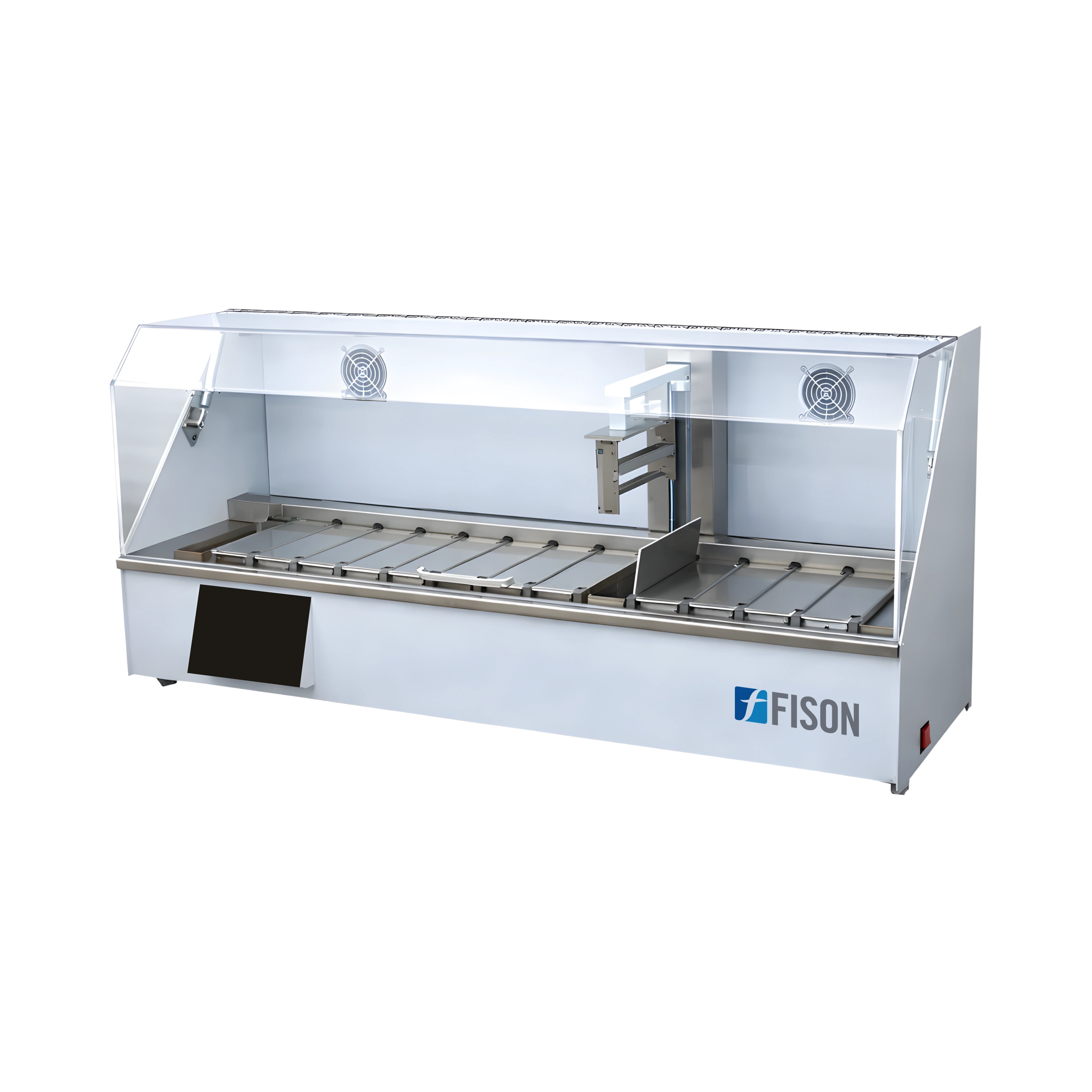

Automatic Tissue Slide Stainer FM-ATS-A107 is a compact, intelligent stainer designed with a reagent tank capacity of up to 1000ml. It can process up to 65 slides per batch with the 0 to 85°C temperature range. It features customizable staining programs, automatic water level management, and drying functions. It has multiple programmable parameters and advanced control features to ensure reproducible staining results while maintaining laboratory safety.
| Tank Volume | 1000ml |
| Slide Capacity per Frame | 65 slides per batch |
| Drying Temperature Range | 0 to 85°C |
| Staining Programs | 16 sets |
| Steps per Program | 24 steps (repeatable on the same cylinder) |
| Cylinder Positions | 14 + 1 washing + 1 drying |
| Processing Time per Cylinder | 0 to 99 min 99sec |
| Drip Residence Time | 0 to 300sec adjustable |
| Water Management | Automatic fill and drain during operation |
| Drive System | Synchronous toothed belt with photo sensor |
| Noise and Resistance | Low noise, heat, and corrosion resistant |
| Power Consumption | 300W |
| Power Supply | 220V, 50Hz ±10% |
| Dimensions(L×W×H) | 1161 × 480 × 550 mm |
| Package Dimensions(L×W×H) | 1260 × 615 × 695 mm |
| Net Weight | 80kg |
| Gross Weight | 110kg |
Automatic Tissue Slide Stainer FM-ATS-A107 is widely used in clinical laboratories, hospitals, pathology departments, research institutions, and medical colleges for routine histological and cytological staining. It is especially suitable for Hematoxylin and Eosin (H and E) staining, as well as special stains required in tissue diagnostics and cancer research.
