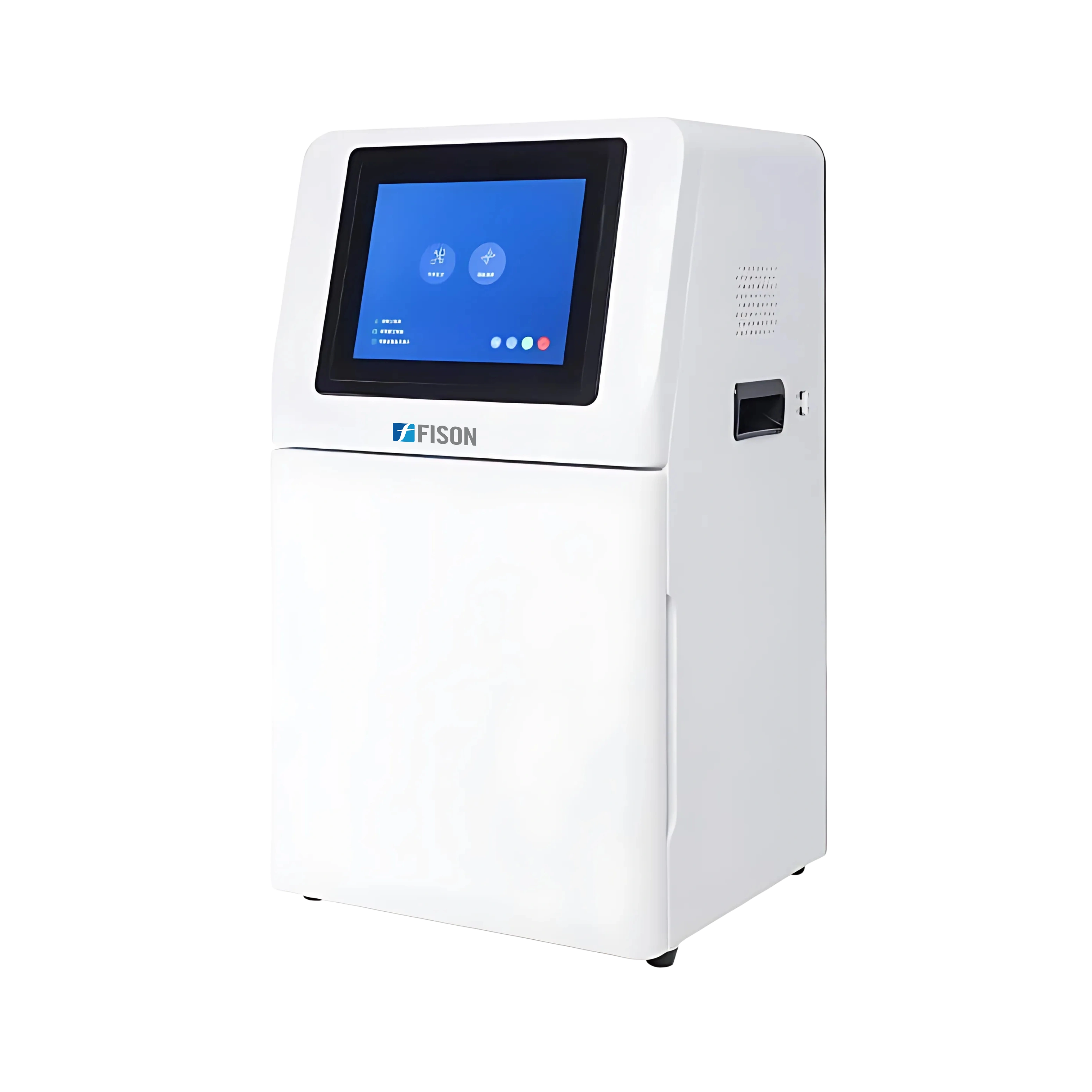

Chemiluminescence Imager FM-CI-B101 offers high-resolution imaging performance of 3000×3000 with 9 megapixels, ensuring clear and detailed image quality for precision applications. It features a powerful cooling capability that can reach a relative ambient temperature of -40 ℃. It provides uniform illumination for consistent and reliable imaging results. It is designed for effective time imaging to support advanced analytical needs.
| Resolution | 3000×3000, 9 megapixels |
| Pixel Size | 3.76×3.76 μm |
| Cooling Temperature | Relative ambient temperature -40 ℃ |
| Shooting Area | 136 × 136 mm (expandable to 200×200 mm if required) |
| Camera | Depth-cooled high sensitivity camera |
| Industrial Computer | 10.4 inches, 1024×768 Windows operating system |
| External Interface | 2 × USB 3.0 |
| Power Consumption | 100 W |
| Power Supply | 100 V to 240 V |
| Dimensions (L×W×H) | 400 × 371 × 700 mm |
| Net Weight | 25 kg |
Chemiluminescence Imager FM-CI-B101 is widely used for sensitive detection of proteins, nucleic acids, and other biomolecules in molecular biology research. It is ideal for applications such as Western blot analysis, DNA/RNA imaging, and chemiluminescent or fluorescent signal quantification.
