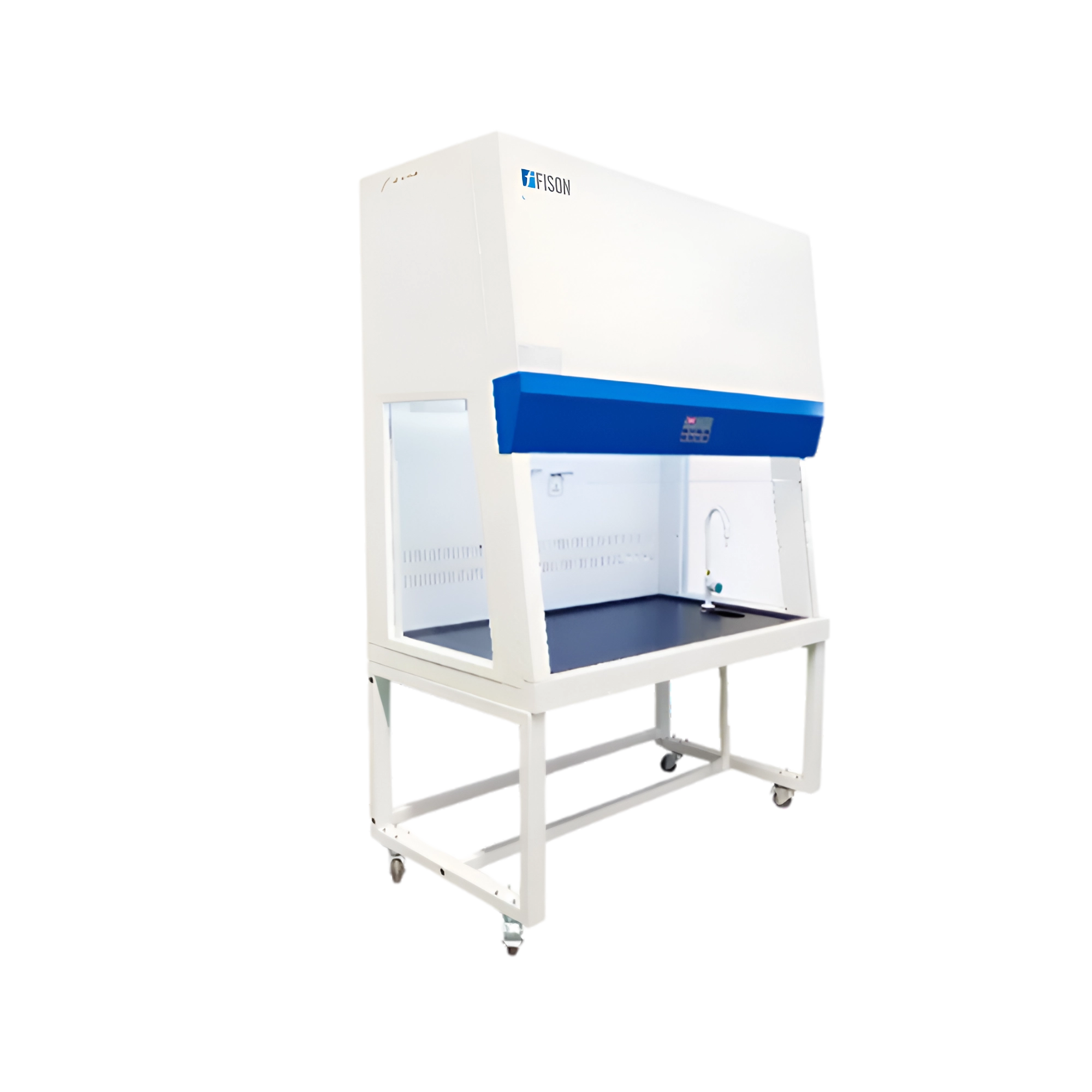

Ducted Fume Hood FM-PDF-A201

Description :

Ducted Fume Hood FM-PDF-A201 is a floor standing unit with microprocessor control system, and LED display. It comes with 1080 × 730 × 745 mm chamber dimension, 520 mm maximum opening and 9 levels adjustable air speed. Equipped with UV lamp for effective sterilization of working environment, centrifugal blower and electronic control system. Designed with three side transparent toughened glass window, anti-UV motorized sliding design front window and waterproof sockets, 4 caster wheel for easy movement, water sink, water tap, gas tap, foot switch, exhaust, active carbon filter and chemical resistant phenolic resin work table.


Features:

  • Ductless type of fume hood
  • 9 levels adjustable air speed
  • Resistance to weak acid and alkali
  • UV lamp for effective sterilization of working environment
  • Built-in centrifugal blower
  • Three side transparent glass window, anti-UV motorized sliding design front window
  • Microprocessor control system
  • Digital LED display
  • 4 Casters for easy movement
  • Chemical resistant phenolic resin work table
  • Ergonomically design 8 degree front slope
  • External material made up of cold rolled steel with anti-bacterial powder coating
  • Recovery function from power failure
  • Alarm when filter work time is 3500 hours

Specifications:

Internal dimension (W × D × H) 1080 × 730 × 745 mm
External dimension (W × D × H) 1200 × 840 × 2150 mm
Work surface height 750 mm
Maximum opening 520 mm
Air velocity 0.3 to 0.8 m/s
Noise ≤ 68 dB
LED lamp 12 W × 1
UV lamp Emission of 253.7 nm for most efficient decontamination
Blower Built-in centrifugal blower, speed adjustable with 9 levels
Front window Motorized 5 mm anti-UV toughened glass
Material
ExteriorCold-rolled steel with anti-bacteria powder coating.
Work tableChemical resistant phenolic resin
Waterproof sockets 2 pcs
Power 400 W
Power supply AC 220 V ± 10%, 50/60 Hz; 110 V ± 10%, 60 Hz
Packaging dimension (W × D × H) 1350 × 1120 × 1680 mm
Gross weight 253 kg

Applications:

Used for providing effective working environment for laboratory experiments in various fields of microbiology, chemical, biotechnology, research centers etc.


Accessories:

Accessories no. Accessories name Unit
1 Water tap 1
2 Gas tap 1
3 Water sink 1
4 Base stand 1
5 UV lamp 2
6 LED lamp 1
7 Socket
8 4 m exhaust duct 1
9 Active carbon filter 1
10 Foot switch 1


Accessories Optional:

Accessories no. Accessories name Unit
1 UV lamp 1
2 LED lamp 1
3 Active carbon filter 1
