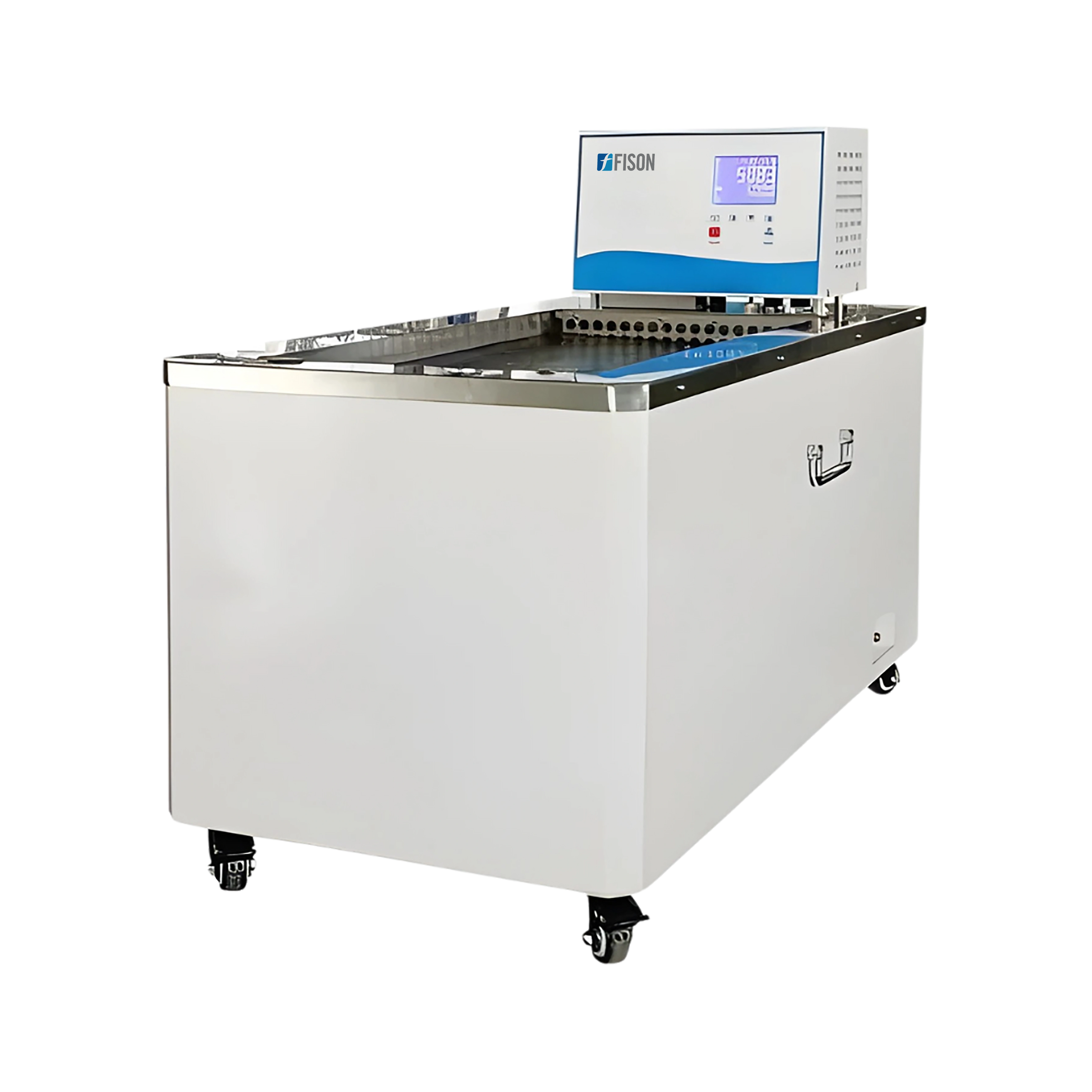

Low Temperature Circulating Bath FM-LCB-A104 is designed with a generous 75 L capacity, offering ample space to accommodate diverse samples simultaneously. It operates within a wide temperature range of -5 to 100℃, delivering optimal results. It features a circulating pump flow of 30 L/min, providing steady and uniform circulation throughout the system. Designed with a clear LCD, it ensures easy monitoring and precise control of operating parameters.
| Capacity | 75 L |
| Temperature Range | -5 to 100℃ |
| Ambient Temperature | 5 to 35 ℃ |
| Resolution | 0.1℃ |
| Precision | ±0.1℃ |
| Temperature Fluctuation | ≤ ±0.5℃ |
| Temperature Uniformity | ≤ ±1℃ |
| Slot Depth | 260 mm |
| Circulating Pump Flow | 30L/min |
| Pump Pressure | 1.5 bar |
| Time Range | 0 to 9999 mm/hr |
| Shell Material | SUS304 stainless steel table-board & working tank, other cold-rolled plate with powder coating |
| Heating Power | 3 kW |
| Power Consumption | 490 W |
| Power Supply | Single phase 220V/50Hz (customizable) |
| Tank Size (mm) | 450 × 650 × 260 mm |
| Working Slot Size (mm) | 450 × 450 × 260 mm |
| Product Dimensions (W×D×H) | 520 × 720 × 910 mm |
| Packing Dimensions (mm) | 650 × 850 × 1150 mm |
| Net Weight | 120 kg |
| Gross Weight | 160 kg |
Low Temperature Circulating Bath FM-LCB-A104 is applied in research, education, quality control, and industries such as petroleum, chemical engineering, electronics, bioengineering, medicine, life sciences, food, materials testing, and chemical analysis.
Rubber hose
Cover plate
