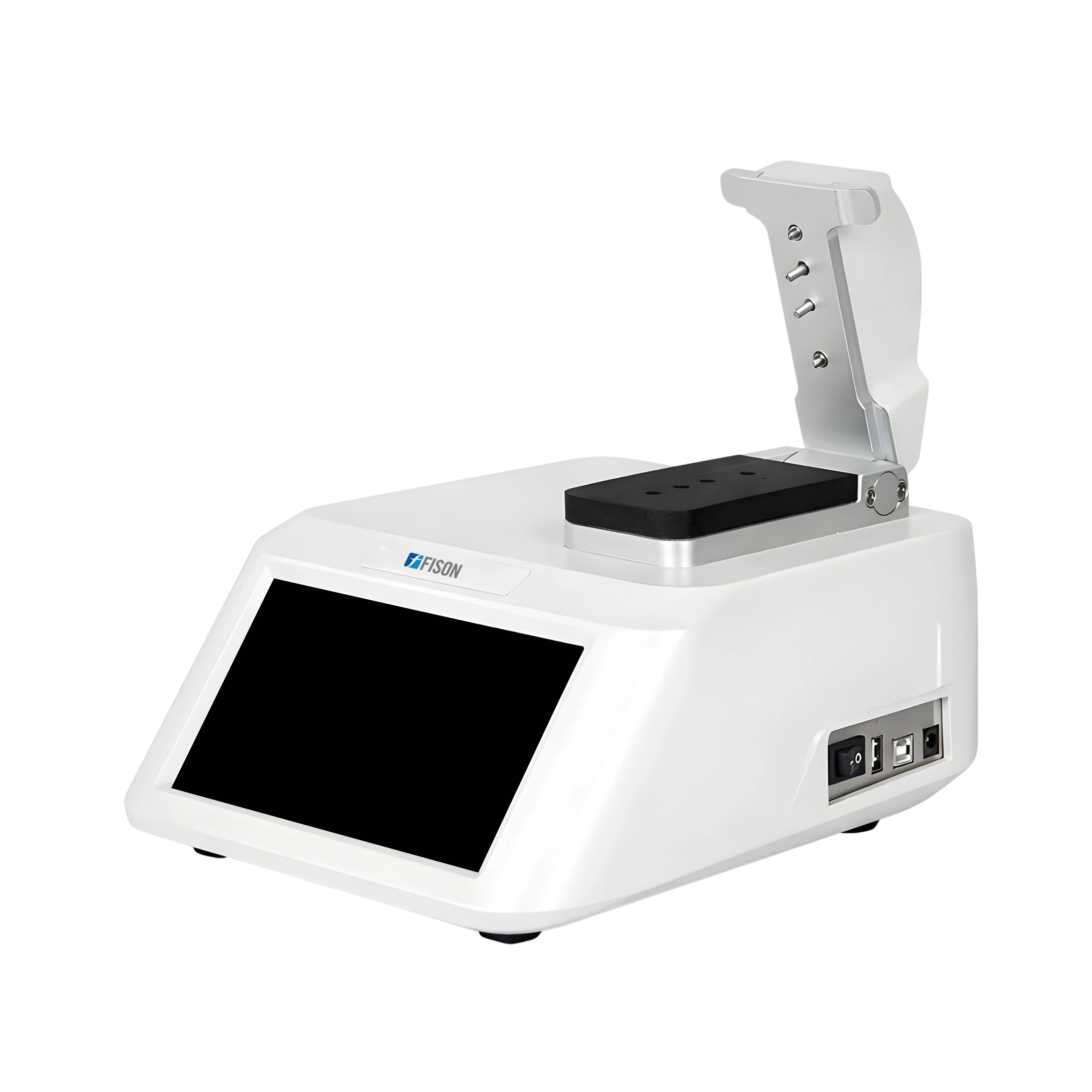

Micro Spectrophotometer FM-MS-A102 Catalog
Overview
Micro Spectrophotometer FM-MS-A102 offers a broad wavelength range of 180 to 910 nm, allowing accurate detection. It is equipped with slots for precise measurement in cuvettes. It supports a sample volume of 0.5 to 2.0 μL, allowing accurate measurement with minimal sample input. It features a sample pedestal that provides stable support for samples. It has a touchscreen panel for precise monitoring and operation.
Specifications :
| Sample Volume | 0.5 to 2.0 μL |
| Wavelength Range | 180 to 910 nmCuvette (OD600): 600 ± 8 nm |
| Nucleic Acid Detection Range | dsDNA: 2 to 15000 ng/μLssDNA: 1.32 to 9900 ng/μLRNA: 1.6 to 12000 ng/μL |
| Protein Detection Range | A280: 0.04 to 750 mg/mLBSA: 0.06 to 1119 mg/mLIgG: 0.03 to 547 mg/mLLysozyme: 0.015 to 284 mg/mL |
| Absorbance Range (10 mm equivalent) | 0.04 to 300 ACuvette (OD600): 0 ~ 4 A |
| OD600 Absorbance Range | 0 to 4.000 Abs |
| OD600 Absorbance Stability | (0 to 3): ≤ 0.5%(3 to 4): ≤ 1.5% |
| OD600 Absorbance Repeatability | (0 to 3): ≤ 0.5%(3 to 4): ≤ 1.5% |
| OD600 Absorbance Accuracy | (0 to 2): ≤ 0.005 A(2 to 3): ≤ 1%(3 to 4): ≤ 2% |
| Path Length | 0.05 mm, 0.2 mm, 1.0 mm |
| Absorbance Accuracy | ±1% (7.332 Abs at 260 nm) |
| Wavelength Accuracy | ±1 nm |
| Wavelength Precision | ±0.2 nm |
| Absorbance Precision | 0.002 Abs |
| Spectral Resolution | ≤ 1.5 nm (FWHM @ Hg 253.7 nm) |
| Measurement Time | < 6 seconds |
| Light Source | Xenon flash lamp |
| Detector | 2048-element linear CMOS array |
| Sample Pedestal | 304 Stainless Steel and Quartz Fiber |
| Operating System | Android |
| Data Export | USB |
| Power (Working/Standby) | 48 W / < 6.5 W |
| Power Adapter | 12V 4A |
| Dimensions (W×D×H) | 270 × 210 × 196 mm |
| Weight | 3.4 kg |
Features :
- Robust build
- Acute detection accuracy
- Compatible with Bluetooth
- Accurate Calibration
- Portable design
Applications :
Micro Spectrophotometer FM-MS-A102 is widely used in many fields for scientific analysis, quality control, and defect analysis.
