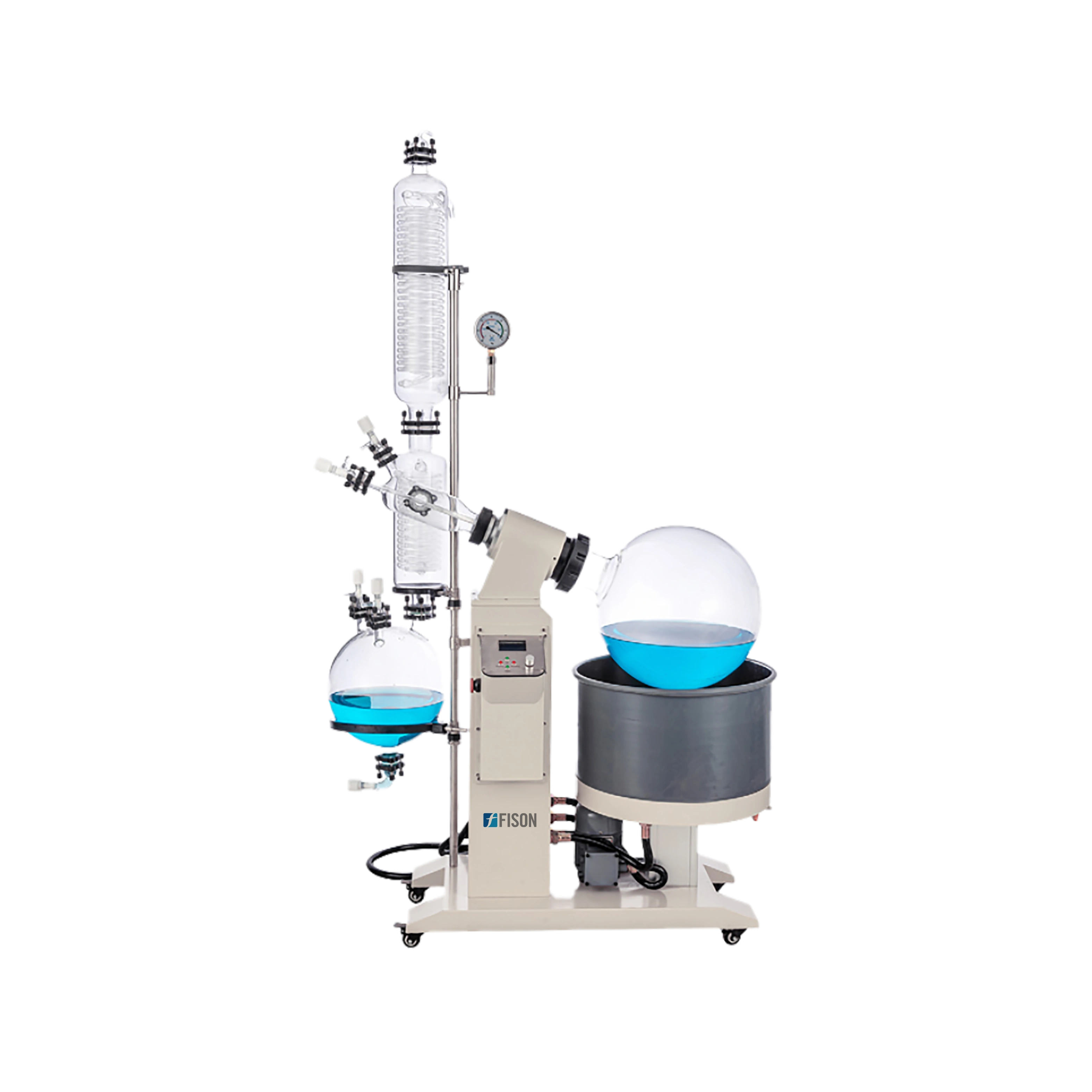

Pilot Scale Rotary Evaporator FM-PRE-A114 is designed for large-volume solvent processing with a 20-liter evaporating flask. It is equipped with a 41-liter heating bath. Its 5000 W heating system ensures rapid and stable evaporation. It is built for demanding pilot-scale applications, it provides precise, safe, and reliable solvent recovery.
| Evaporating flask | 20 liter |
| Receiving bottle | 10 liter (with discharge valve) |
| Rotation speed | 0 to 120 rpm |
| Temperature range | RT to 180°C |
| Temperature control accuracy | ±1°C |
| Lifting distance | 150 mm |
| Condenser | Vertical, main triple + auxiliary double coil |
| Bath volume | 41 L |
| Heating power | 5000 W |
| Vacuum degree | 0.098 MPa |
| Rotating motor power | 60 W |
| Lifting motor power | 40 W |
| Overall power | 5180 W |
| Power supply | 220 to 240 V, 50 Hz |
| Dimensions ( W × D × H ) | 1210 × 610 × 2170 mm |
| Weight | 84 kg |
Pilot Scale Rotary Evaporator FM-PRE-A114 used for high-volume solvent recovery, concentration, and extraction in pilot-scale pharmaceutical, chemical, and industrial laboratories.
