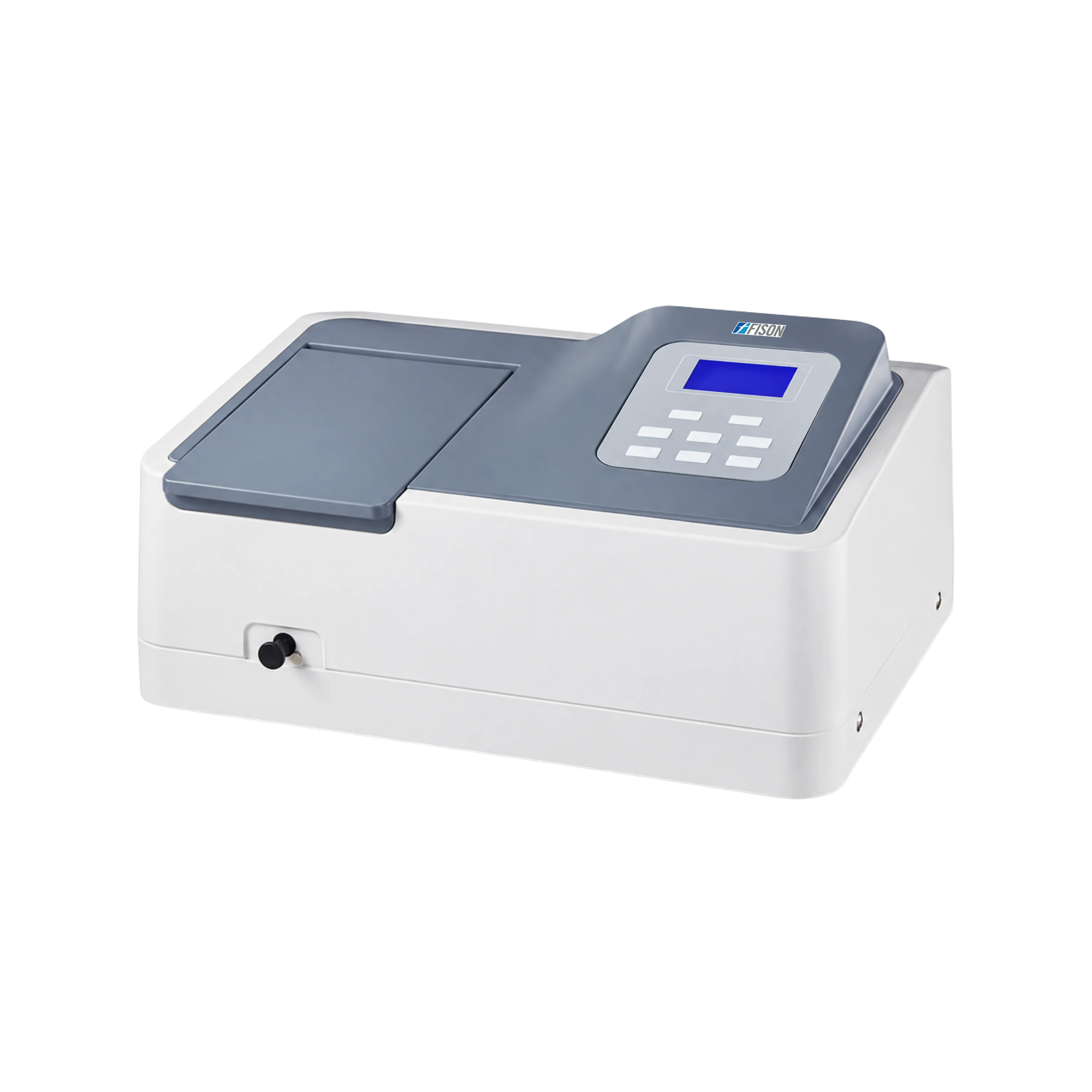

Fison Single Beam UV Visible Spectrophotometer FM-UVS-A200 uses a single-beam optical system with tungsten and deuterium lamps for UV-Vis spectrophotometric measurement. This single beam spectrophotometer provides a 200 to 1000 nm wavelength range, 4 nm spectral bandwidth, and 4-position sample holder with 10 mm path length cuvettes. Automatic lamp switching and wavelength setting support absorbance and transmittance measurement of liquid and solid samples.
| Wavelength range | 200 to 1000 nm |
| Spectral bandwidth | 4 nm |
| Optical system | Single beam |
| Wavelength accuracy | ± 2 nm |
| Wavelength repeatability | ≤ 1 nm |
| Photometric range | -0.3 - 3.0 A, 0 to 200%T |
| Photometric accuracy | ±0.003 A @ 0.5 A±0.006 A @ 1.0 A, ±0.5%T @ 100%T |
| Light source | Tungsten lamp and deuterium lamp |
| Stray light | ≤0.2%T @ 360nm |
| Stability | ≤0.002 A/h @ 500 nm ( after preheat 2 hours) |
| Display | LCD |
| Standard cell holder | 4 positions |
| Sample compartment | 10 mm path length cuvette |
| Output | USB port and parallel port (printer) |
| Power requirement | AC 110 / 220 V, 50 / 60 Hz |
| Power | 120 W |
| Dimensions (W × D × H) | 490 × 360 × 210 mm |
| Weight | 14 kg |
Single Beam UV-Visible Spectrophotometer for detection of impurities, functional groups, and quality analysis and research across biochemistry, biotechnology, microbiology, chemistry, pharmacy, water testing, environmental and food science industries etc.
Square glass cuvettes 10mm × 4 pc
Square quartz cuvettes 10 mm × 2 pc
Software
4 cell holders: 10 mm, 50 mm, 100 mm
Cylindrical cell holder
10 mm water jacketed holder: 1 cell and 4 cell
Micro cell holder
1 position Test tube holder: Φ8 to 22 mm, δ1.5 to 3 mm
8 position auto cell-changer
2 pc square glass cuvettes: 1 mm, 2 mm, 3 mm, 20 mm, 30 mm, 50 mm, 100 mm
2 pc square glass cuvettes: 1 mm, 2 mm, 3 mm, 20 mm, 30 mm, 50 mm, 100 mm
