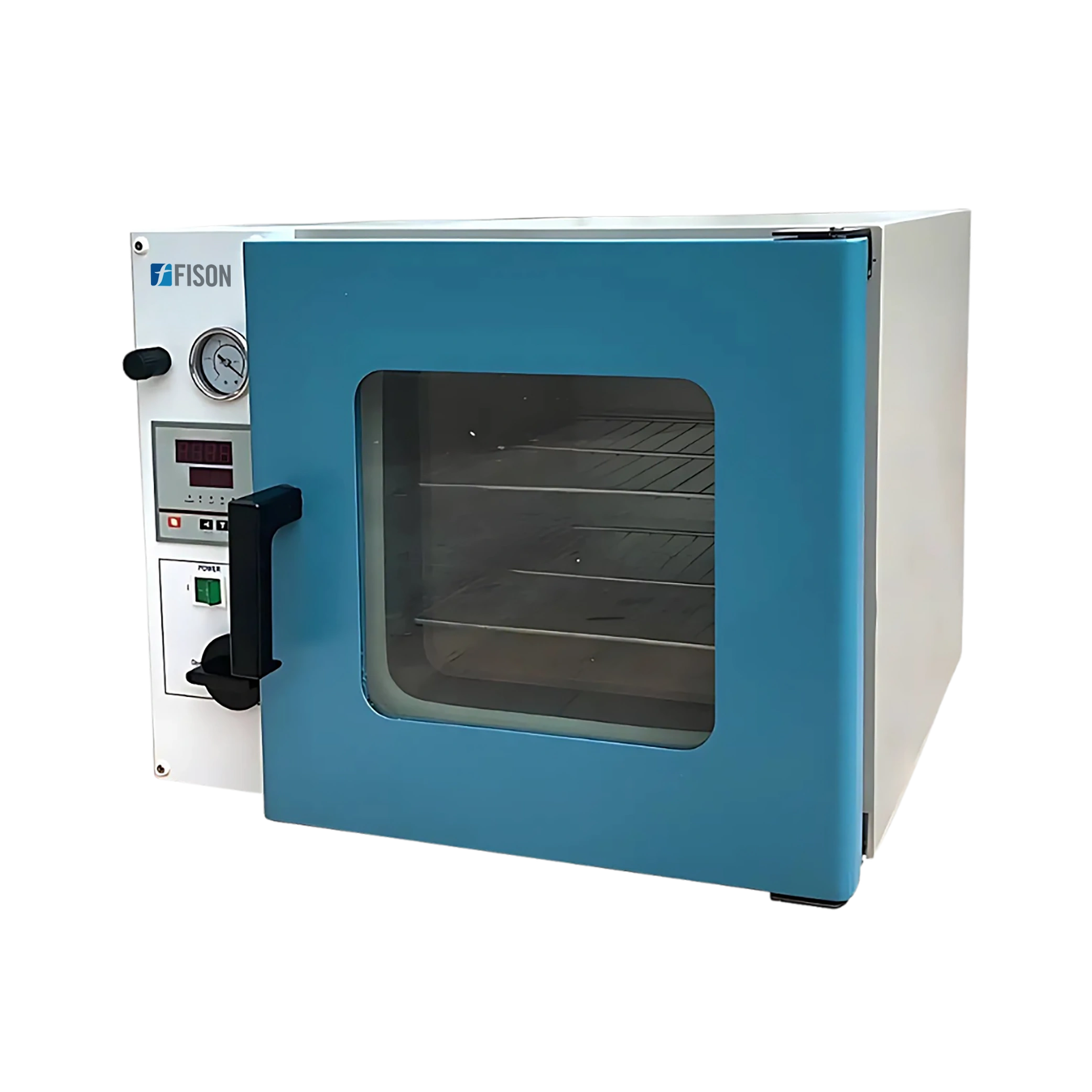

Vacuum Oven FM-VO-B101 Catalog
Overview
Vacuum Oven FM-VO-B101 supports a temperature range of 50 to 200℃, providing accurate heat control for reliable processing results. It can accommodate a wide range of sample sizes with its 50L chamber capacity. Its advanced microprocessor-based control system ensures accurate temperature regulation and reliable performance. Our oven is equipped with a digital timer display, allowing precise tracking of operation time for consistent results.
Specifications:
| Capacity | 50L |
| Temperature range | 50 to 200℃ |
| Temperature fluctuation | ±1% |
| Vacuum degree | <133Pa |
| Vacuum pump | Without |
| Timer | 0 to 999 min |
| Power Consumption | 1400W |
| Power Supply | 220V 50Hz |
| Working size | 415 × 375 × 345 mm |
| Dimension (L×B×H) | 710 × 540 × 550 mm |
| Packing Dimension (L×B×H) | 810 × 620 × 650 mm |
| Net Weight | 60 kg |
| Gross Weight | 76 kg |
Features:
- Automatic alert upon operation completion
- PID self-tuning
- Transparent glass door
- Dual temperature display
- Safety alarm for over-temperature protection
Applications:
Vacuum Oven FM-VO-B101 is suitable for drying, baking, dewaxing, sterilization, and heat treatment under vacuum conditions. It can be used in pharmaceutical laboratories, electronics manufacturing, and materials research for the heat treatment of sensitive samples.
