Vacuum Oven FM-VO-B103 Catalog
Overview

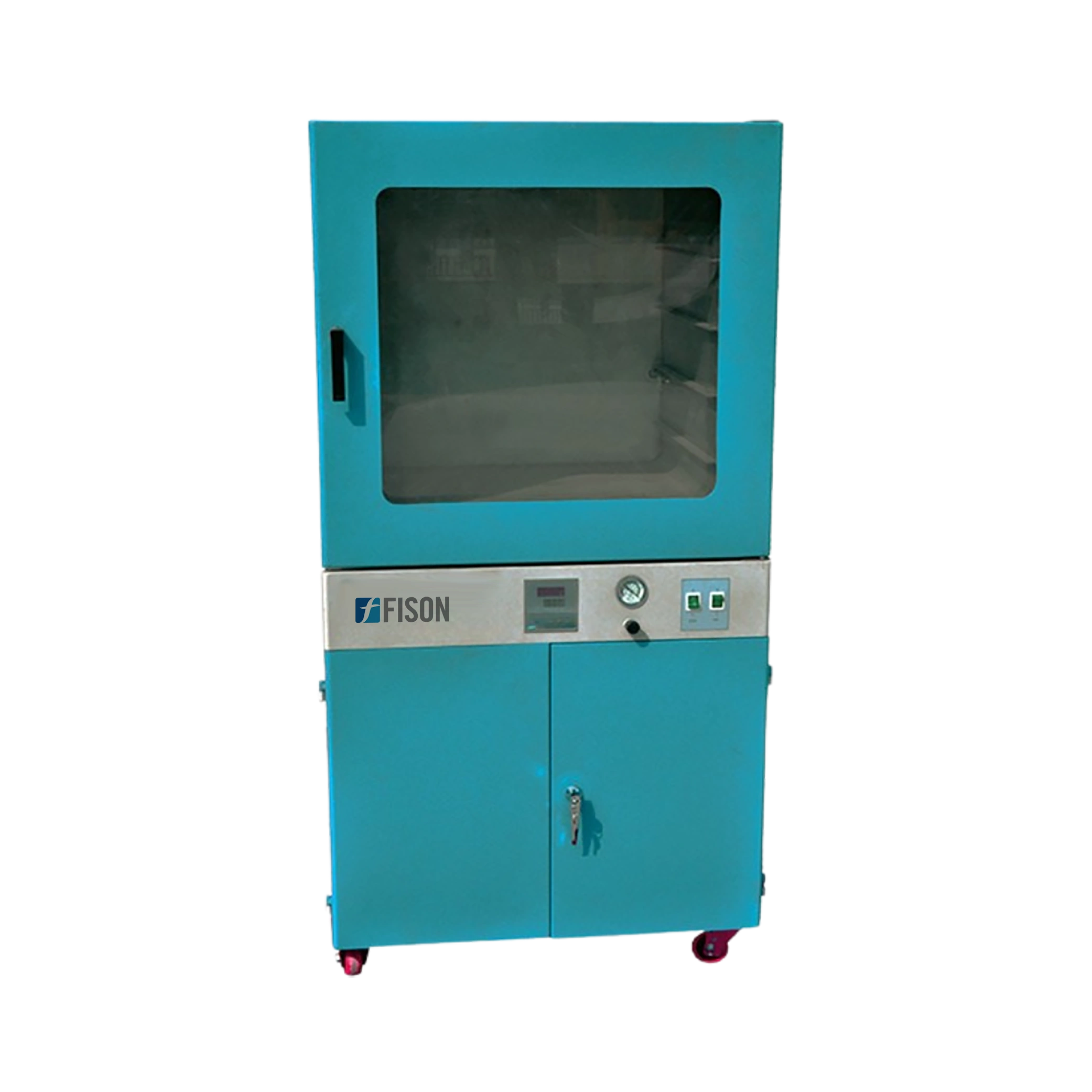

Vacuum Oven FM-VO-B103 is designed with a wide 50 to 250℃ temperature range, providing outstanding versatility for various drying and thermal treatment. It offers a spacious 210L capacity, making it ideal for handling large sample loads. Its dual temperature display allows users to monitor both the set and actual temperatures in real time for accurate process control. Our oven features a microprocessor control system for precise and reliable operation management.
Specifications:
| Capacity | 210L |
| Temperature range | 50 to 250℃ |
| Temperature fluctuation | ±1% |
| Vacuum degree | <133Pa |
| Timer | 0 to 999 min |
| Power Consumption | 2160W |
| Power Supply | 220V 50Hz |
| Working size | 560 × 640 × 600 mm |
| Dimension (L×B×H) | 810 × 720 × 1590 mm |
| Packing Dimension (L×B×H) | 890 × 840 × 1680 mm |
| Net Weight | 140 kg |
| Gross Weight | 195 kg |
Features:
- Built-in vacuum pump
- Digital vacuum gauge
- Automatic completion alarm
- Glass viewing window
- Digital timer
- PID self-tuning system
Applications:
Vacuum Oven FM-VO-B103 is suitable for drying, baking, dewaxing, sterilization, and heat treatment under vacuum conditions. It can be used in pharmaceutical laboratories, electronics manufacturing, and materials research for the heat treatment of sensitive samples.
