Vet Hematology Analyzer FM-VHA-A100 Catalog
Overview

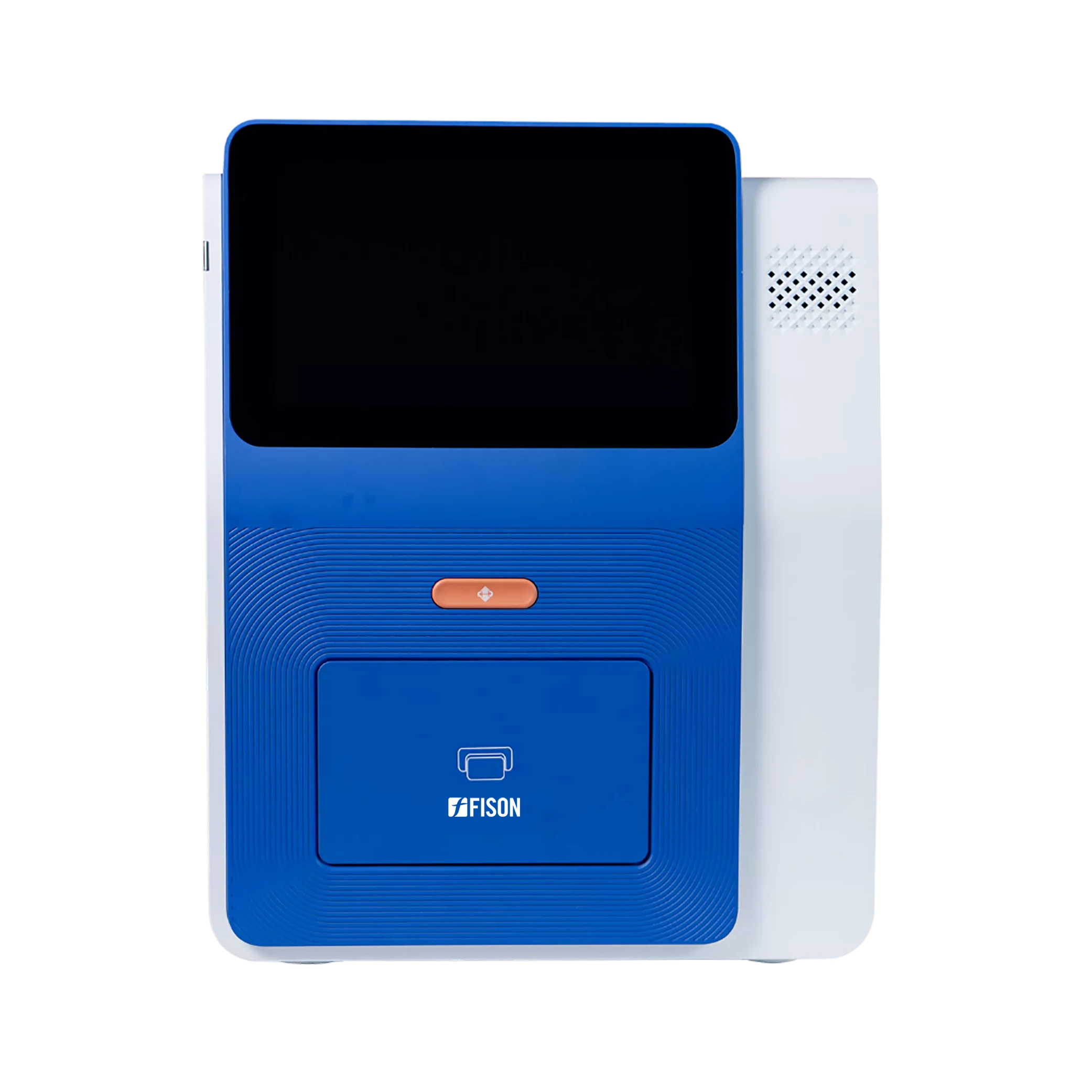

Vet Hematology Analyzer FM-VHA-A100 delivers AI-powered 7-part differential hematology analysis with unmatched accuracy. Its advanced system identifies multi-classified and abnormal cells for reliable diagnostics. Integrated urine, fecal, and immunoassay testing enhances laboratory versatility and efficiency. User-friendly design ensures faster workflow, seamless operation, and consistent performance. A complete solution engineered for precision and trusted clinical results.
Specifications:
| Throughput | 8 samples/hour |
| Sample volume | 55µl for CBC200µl for urine200µl for feces |
| Sample mode | Blood, urine, feces |
| Calibration mode | Auto calibration |
| Principle | Cell morphology for CBC/Urine/feces, FIA for immunofluorescence assay |
| Parameters | 38 parameters |
| 7-Diff CBC | WBC, NEUT#, NST#, NSG#, NSH#, LYM#, MON#, EOS#, BAS#, NEUT%, NST/WBC%, NST/NEU%, NSG%, NSH/WBC%, NSH/NEU%, LYM%, MON%, EOS%, BAS%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, HDW-CV, HDW-SD, RET#, RET%, PLT, MPV, PDW, PCT, ALTP#, P-LCC, P-LCR |
| Urine Analysis – Cast | HYA#, RBC-C#, Lc#, RTC#, GRA#, WAC#, Fc#, BC# |
| Urine Analysis - Cell | RBC#, WBC#, RTE#, SEC#, TEC#, SPE# |
| Urine Analysis - Crystal | MAP#, COMC#, COD#, CP#, UAC#, CYS#, CC#, BiliC#, AUC# |
| Urine Analysis - Microorganisms | COS#, BAC#, SAC#, FUN# |
| Urine Analysis - Others | FAT#, PHL# |
| Fecal Analysis - Parasite eggs | ALE#, ANE#, CEE#, DIP#, SPI#, TIE#, TRE# |
| Fecal Analysis - Digestive function | STA#, LfAT#, PlAT#, Af# |
| Fecal Analysis - Cell | RBC#, WBC#, EPC# |
| Fecal Analysis - Microorganisms | COS#, BAC1#, C/B, CAM#, BAC#, SSI#, SS2#, YEA# |
| Fecal Analysis - Intestinal protozoa | TR#, FLA#, COD#, COD0#, COD1#, COD2#, Tg# |
| Immunoassay - Inflammation | cCRP, fSAA |
| Immunoassay - Pancreatitis | Fat droplet, and mucus |
| Immunoassay - kidney disease | cSDMA, fSDMA, cCys-C, fCys-C |
| Immunoassay - Hormone | Cortisol, T4, HbA1c, TSH, cProg, LH |
| Immunoassay - Cardiac marke | cTnI, NT-proBNP |
| Immunoassay - Infectious disease | FeLV Ag, FIV Ab, FCoV Ag, FPV Ag, CCV Ag, CPV Ag, CDV Ag, Giardia Ag, HW Ag, E.canis Ab, AnapLAb, Lyme Ab, Toxo Ab, CIV Ag, Lepto |
| Immunoassay - Others | D-dimer |
| Immunoassay - Immune function antibody titer | CPV Ab, CDV Ab, FIV Ab, FCV Ab, FPV Ab, RV Ab, ICH Ab, CAV Ab |
| Quality control | Dry type QC card |
| Communication | 2 USB ports, LAN port, LIS |
| Display | 10.1-inch touch screen |
| Printer | Built-in thermal printer |
| Power supply | 100 to 240 V, 50/60Hz |
| Dimension (L×B×H) | 400×350×450 mm |
| Weight | 15 kg |
Features:
- Multi-parameter detection
- High throughput design
- Intelligent data processing
- Compact laboratory footprint
- Automated quality control
Applications:
Vet Hematology Analyzer FM-VHA-A100 is widely used in clinical laboratories, hospitals, and diagnostic centers. It enables accurate blood analysis, early disease detection, and supports extended testing for urine, fecal, and immunoassay needs, making it vital for modern healthcare diagnostics.
Accessories Optional:
- Kit for Sample Processing for Hematology Analysis - One kit consists of multi-in-one reagent×1, Counting chamber×1, Anticoagulant tube×1 and Tip head×2
- Sample Processing kits for Urine/Fecal Analysis - One kit consists of multi-in-one reagent×1, Counting chamber×1, tube ×1 and Tip head×2
- Kit for C-reactive protein for Canine - One kit consists of cartridge×1 and reagent×1
- Kit for Serum Amyloid A for Feline - One kit consists of cartridge×1 and reagent×1
