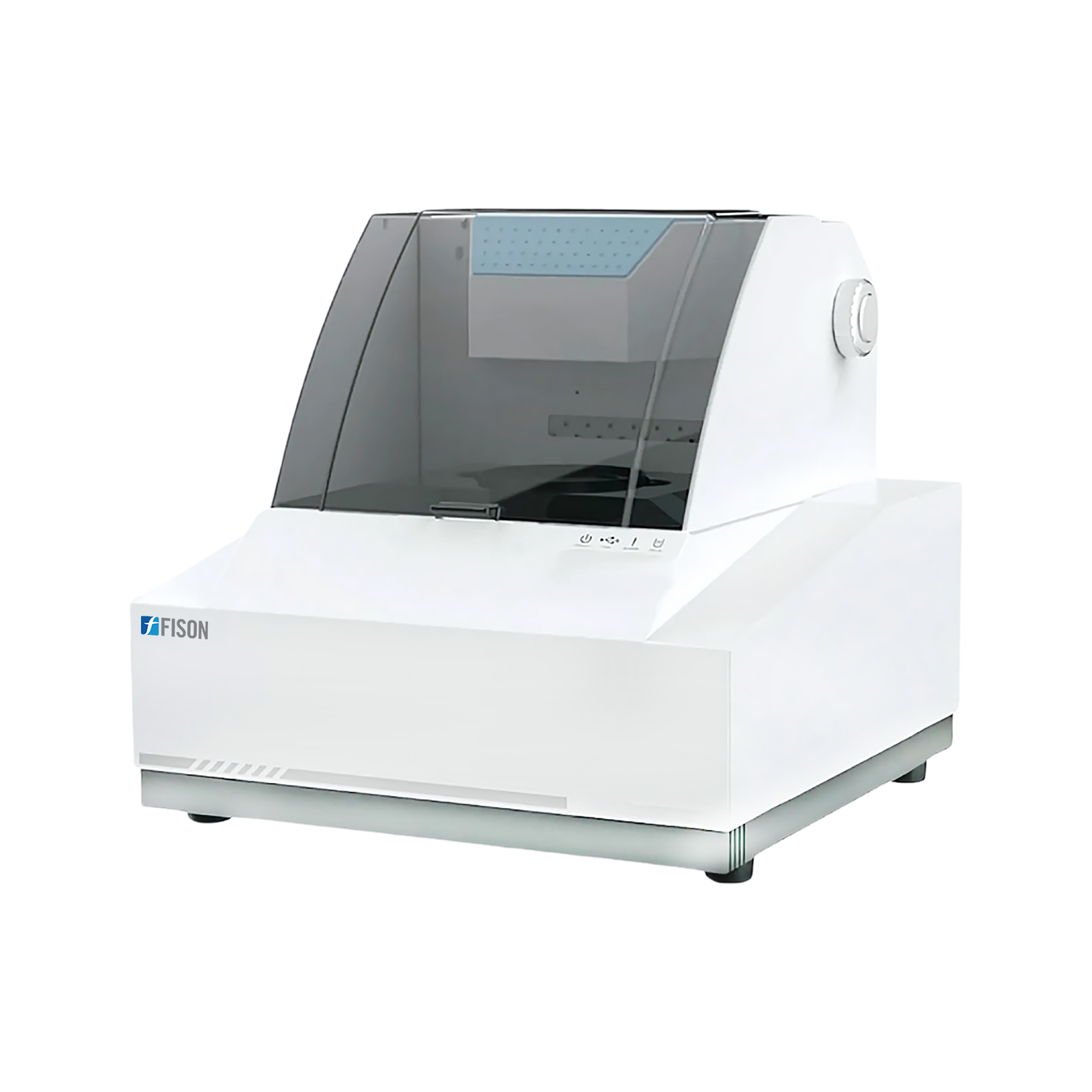

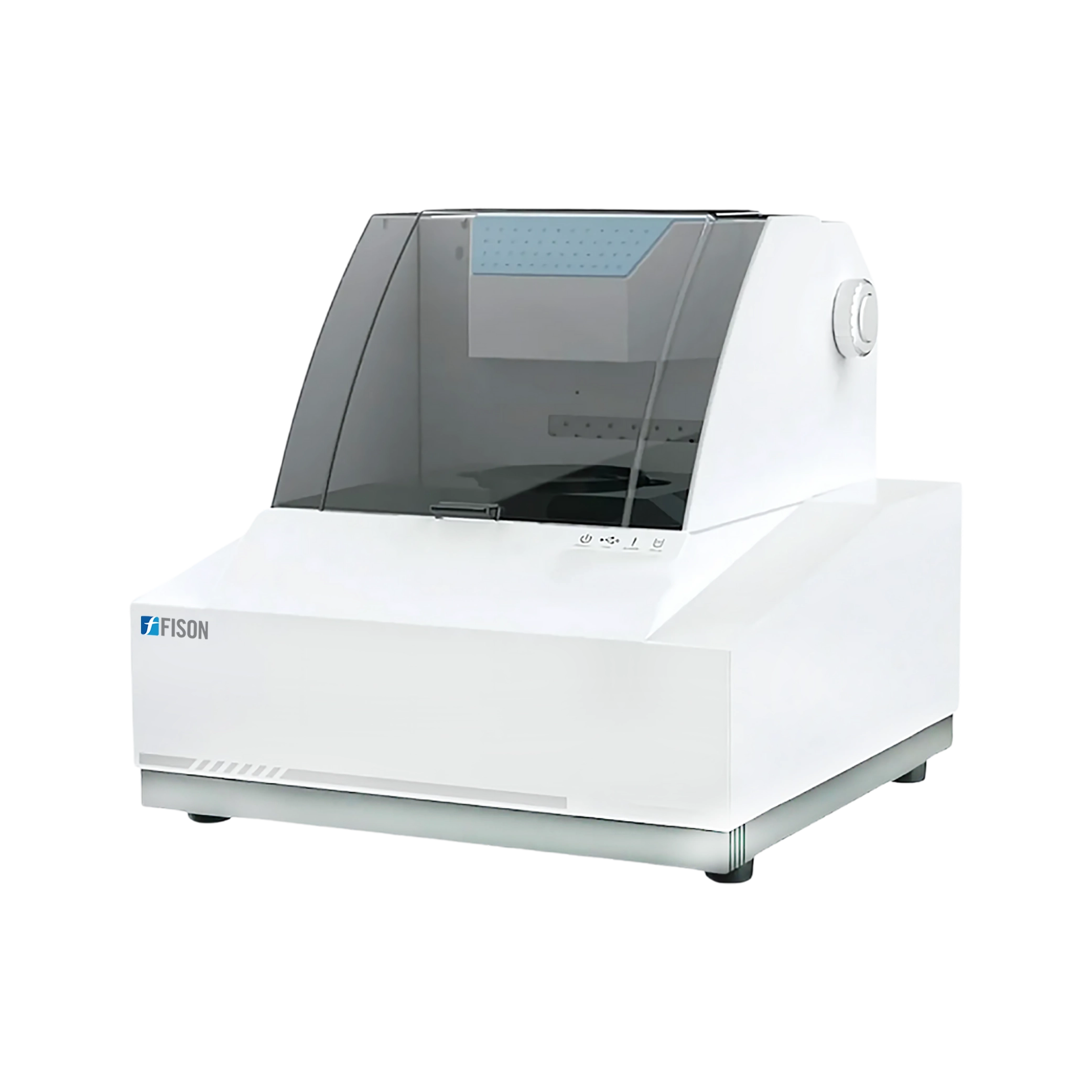

NIR- Food Analyzer FM-NIF-A100 operates in the 1000-1800 nm wavelength range. It processes samples from 50 to 150 ml and includes three cup types. Each test completes in 6 to 10 seconds. It uses diffuse reflectance for measurements. Designed for ease of use, it simplifies operation with its intuitive interface. The analyzer ensures precise results with its high-performance system
$26,767.00
| Spectral range | 1000 to 1800 nm |
| Sample volume | Flexible 50 to150 ml, 3 types of sample cup |
| Illumination source | Tungsten halogen lamp >5000 hours lifespan |
| Measurement mode | Diffuse reflectance |
| Sensor | High-Performance ultra cooled InGaAs (Indium Gallium Arsenide) detector to -25℃ Dual-stage temperature stabilized |
| Spectral bandwidth | 10.95 ± 0.3 nm @ 1395.5 nm |
| Baseline noise | < 50 μA |
| Interface | USB |
| Analysis time | 6 to 10 sec |
| Spectral precision | < 0.1 nm to traceable standard reference material |
| Ambient temperature | 5 to 35 ℃ |
| Ambient humidity | <90% RH |
| Power Supply | 198 to 242 V, frequency 50 Hz, 0.5 A |
| Dimensions (L ×W ×H) | 403 ×391 ×374 mm |
| Packing Dimensions | 540 × 490 × 470 mm |
| Gross Weight | 25 Kg |
1: What parameters can the Food Analyzer FM-NIR-A100 measure for wheat (granular)?
For wheat (granular), the Food Analyzer FM-NIR-A100 can measure Moisture, Crude Protein (Wet/Dry), Wet Gluten, Hardness, Falling Number, and Dry Gluten.
2: Which parameters are analyzed for rice using the Food Analyzer FM-NIR-A100?
For rice, the Food Analyzer FM-NIR-A100 can measure Moisture, Crude Protein, Amylose, and Eating Quality.
3: What measurements can the Food Analyzer FM-NIR-A100 perform for rapeseed?
For rapeseed, the Food Analyzer FM-NIR-A100 can determine Moisture, Crude Oil, Glucosinolate, Erucic Acid, Palmitic Acid (C16:0), Eicosenoic Acid, and Crude Protein.
4: What parameters can be checked for pig feed using the Food Analyzer FM-NIR-A100?
For pig feed, the Food Analyzer FM-NIR-A100 can measure Moisture, Crude Protein, Crude Ash, Calcium, Phosphorus, Salt, Crude Oil, and Crude Fiber.
5: What does the Food Analyzer FM-NIR-A100 measure in feather meal?
For feather meal, the Food Analyzer FM-NIR-A100 can analyze Moisture, RProtein, VBN, Protein, RPRatio, Ash, Fat, and AV.
