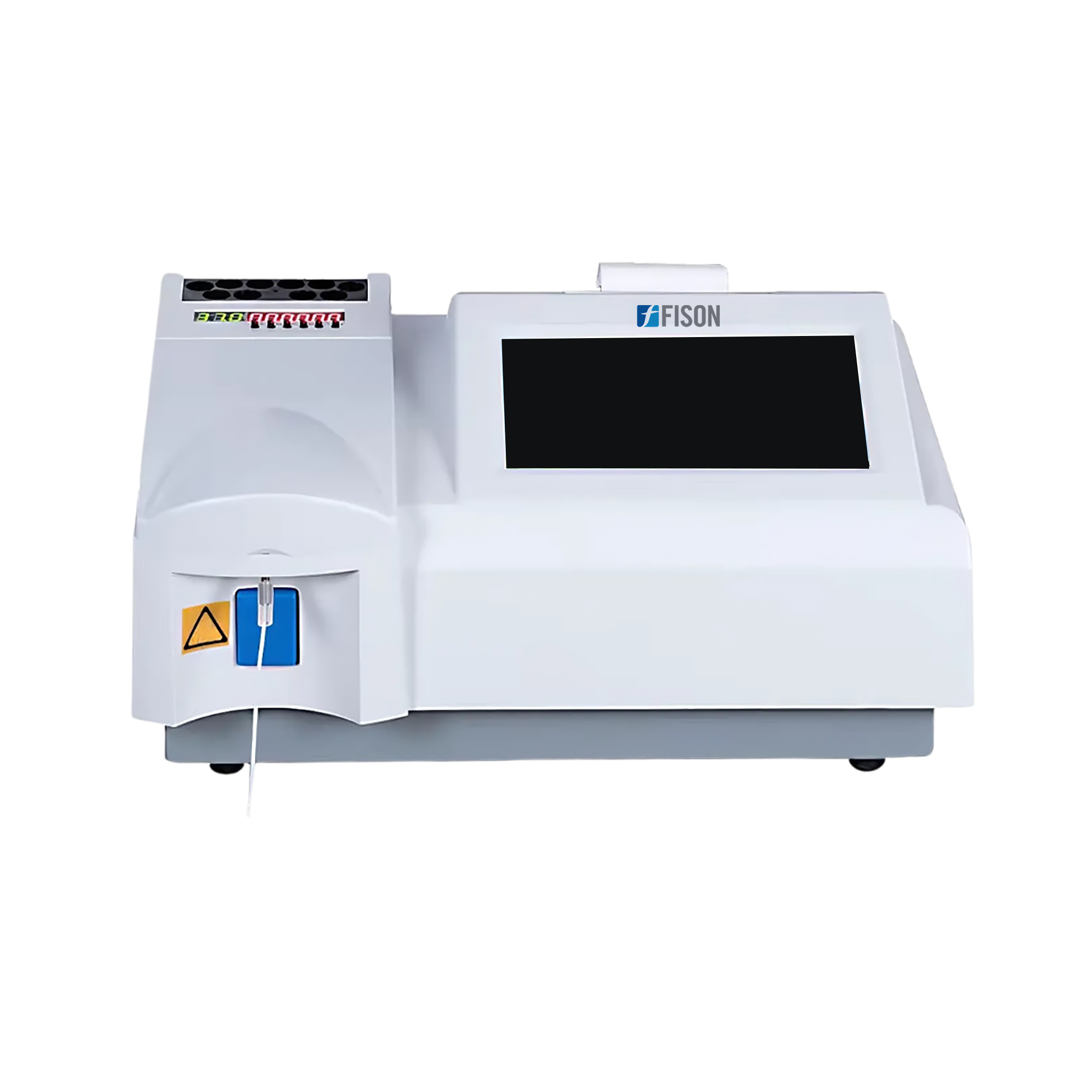

Semi-Automatic Biochemistry Analyzer FM-SAC-A100
Semi-Automatic Biochemistry Analyzer FM-SAC-A100 measures absorbance ranging from 0 to 4.500 Abs, enabling accurate detection across a broad spectrum of concentrations. It determines appropriate functioning of liver, kidney, heart, immune system proteins, and lipid profile testing. Equipped with 10 incubators set at 37 °C with a tolerance of ±0.3°C, ensuring optimal conditions for sample incubation. It covers wide range of test components, offering flexibility for diverse laboratory requirements.
$2,375.00
Specifications
| Test parameters | Liver function: ALT, AST, ALP, T-BIL, TP ALB, TTT, CHE, Nh Renal function: BUN, CRE, UA, URE, CO2-CP, γ-GT Lipids: I-CHE, TG, HDL-C, LDL-C Cardiac function: CK, CK-MB, LDH Immune proteins: IGA, IGG, IGM, C3 others: GLU,HGB, AMS |
| Test Modes | Kinetic, End point, Two-point, Absorbance |
| Sample Volume | 0-3000 µL (≥ 500 µL recommend) |
| Wavelengths | 7 standard filters, 340, 405, 492, 510, 546, 578, 630nm, 1 free position |
| Wavelength Precision | ±2 nm, width ≤ 10nm |
| Absorbance Range | 0 to 4.500 Abs |
| Absorbance precision | Outside 0.0001 Abs, inside 0.00001Abs 3 timers, precision ±0.1s |
| Carry Over | < 1% |
| Repeatability CV | < 1% |
| Flowcell incubator | 37℃, 3. ℃. 25℃ and others, precision: ±0.1℃ |
| Data storage | 10000 |
| Lamp | Philips 6V 10W Halogen Lamp with long life |
| Display | 7-inch Color LCD |
| CPU | ARM series high speed micro-CPU |
| Printer | Internal thermal sensitive printer |
| Interface | RS-232 |
| Working conditions | Temperature: 0 ℃ to 40 ℃, Humidity: 80% |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz, 100VA |
| Dimensions (L×B×H) | 340 × 270 × 160 mm |
| Weight | 5 kg |
Features
- Touch screen interface
- Intuitive operation and clear visualization of results
- Seamlessly switch between flow cell and cuvette test modes
- Efficient data management and retrieval
- Benefit from the lamp hibernate function
- PC Connectivity via RS232 interface
Applications
- Semi-Automatic Biochemistry Analyzer FM-SAC-A100 is widely used across healthcare, pharmaceuticals, beverages, environmental monitoring, etc.
