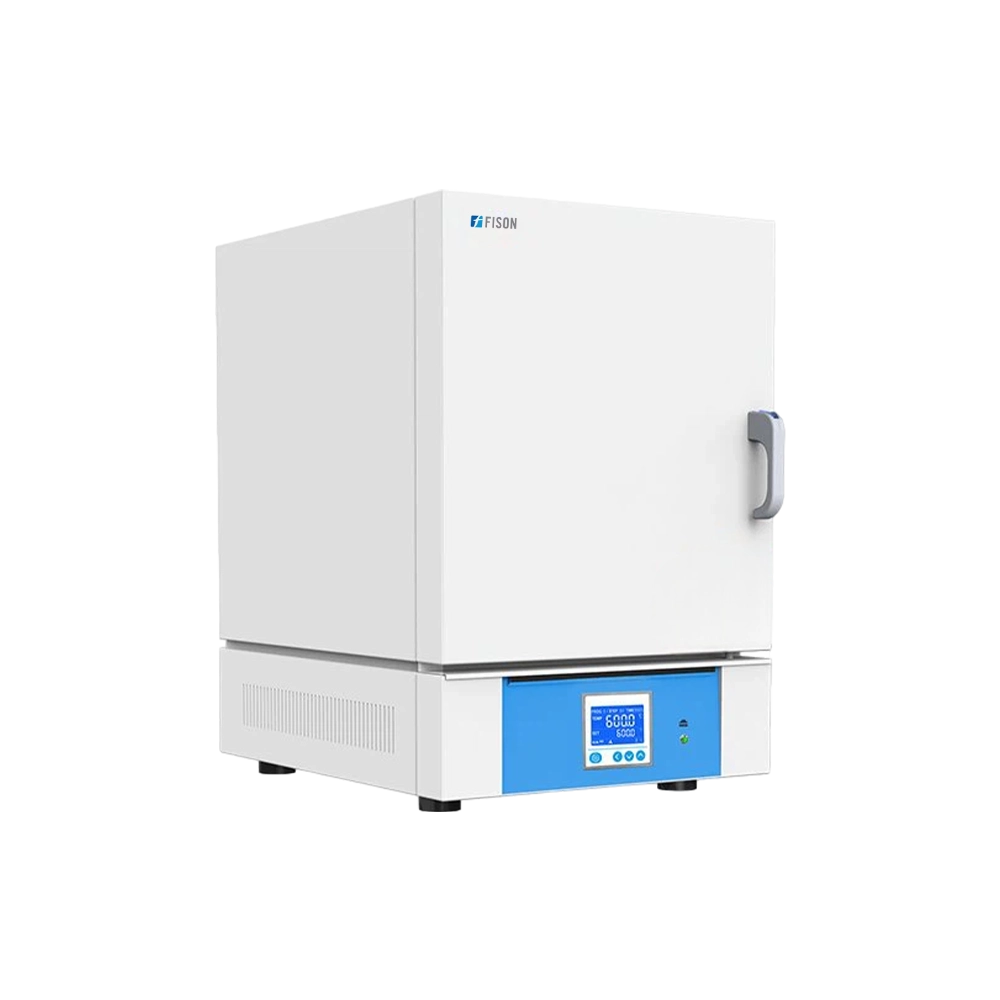

Muffle Furnace FM-MF-B100
Muffle Furnace FM-MF-B100 features a temperature of 1100⁰C to ensure quicker reaction rates and shorter processing times. Its housing is made of cold-rolled steel sheets with a powder coating to enhance energy efficiency. This unit offers overcurrent prevention and anti-scalding to ensure safe operation and prevent accidents. Our muffle furnace uses alumina ceramic fiber for high-temperature heat treatment and effective insulation.
Specifications
| Capacity | 2 L |
| Working Temperature | 1000⁰C |
| Maximum Temperature | 1100⁰C |
| Insulation Material | Alumina ceramic fiber |
| Heating Element | Fe-Cr-Al |
| Heating Time | 35-65 Mins |
| Present start and off | Yes |
| Thermocouple type | K Type |
| Programmable Controller | Yes |
| Power Consumption | 1.5 kW |
| Power Supply | 220V 50/60HZ Single Phase |
| Interior Dimensions (W×D×H) | 120×200×80 mm |
| External Dimensions (W×D×H) | 380×495×584 mm |
| Net Weight | 35 kg |
Features
- Includes microcomputer PID controller
- Integrated combustion chimney system
- Incorporated power failure memory
- Built-in start and off function
- High-quality heating element
Applications
- Muffle Furnaces are commonly used in quenching, annealing, and tempering small steel parts applied in industrial and mining enterprises, universities and research institutes. It can also be used as a pre-treatment for sintering, and ashing analysis of metal, stone, tools and ceramics.
