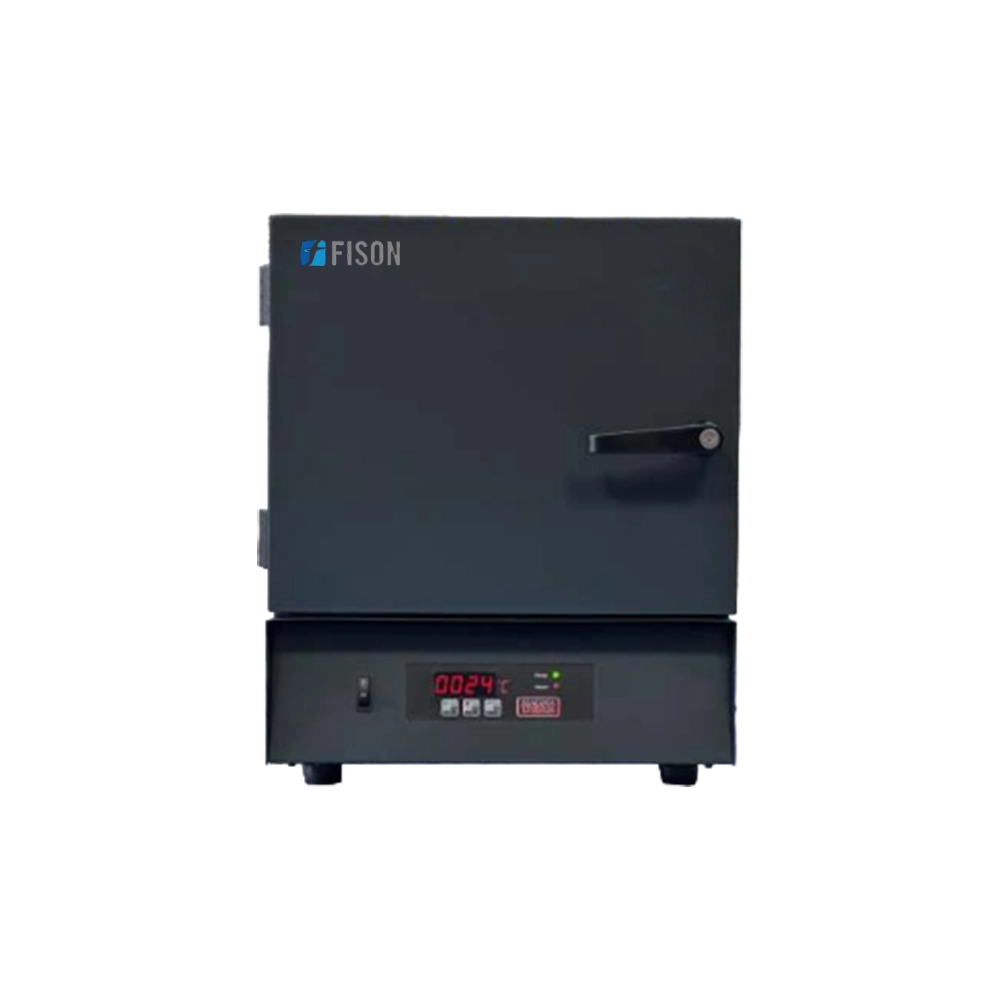

Muffle Furnace FM-MF-A202
Muffle Furnace FM-MF-A202 operates at a maximum working temperature of 1100 °C with a 30 L capacity. It features dual-shell housing for enhanced durability, and its software-based PID control ensures accurate temperature management. The furnace includes audible warnings at step changes and at the end of the program for efficient operation. Its robust design, combined with advanced heating programs, makes it an ideal choice for high-temperature laboratory tasks.
Specifications
| Maximum Working Temperature | 1100℃ |
| Capacity | 30 L |
| Continuous Working Temperature | 1050℃ |
| Display | 7 segment / 4 digit |
| Max. Current | 18 A |
| Electrical Connection | 1 Phase |
| Heating Element | Fe-Cr-Al |
| Thermocouple Type | K Type |
| Heating Element Placement | Embedded into brick walls |
| Inner Insulation Material | Ceramic fibre board or insulating fire brick |
| Front Face Insulation Material | Ceramic fibre board |
| Door Insulation Material | Ceramic fibre board |
| Housing Material | Steel sheet |
| Power | 3.9 |
| Internal Dimension W × H × D | 300 × 250 × 395 |
| External Dimension W × H × D | 554 × 615 × 640 |
| Weight | 47 kg |
Features
- Four steps heating program
- Two custom preset programs
- Step indicator
- Control unit overheating sensor
- Epoxy powder coating
Applications
- Muffle Furnace FM-MF-A202 is widely used for heat treatment, material testing, and ashing processes in laboratories, research centers, industrial facilities and metallurgy labs.
Accessories Optional
Aluminium crucible 25ml × 1pc Metal crucible 25ml × 1pc Alumina boat × 1pc Tongs × 1pc High temperature glove × 1pc K Type thermocouple × 1pc
