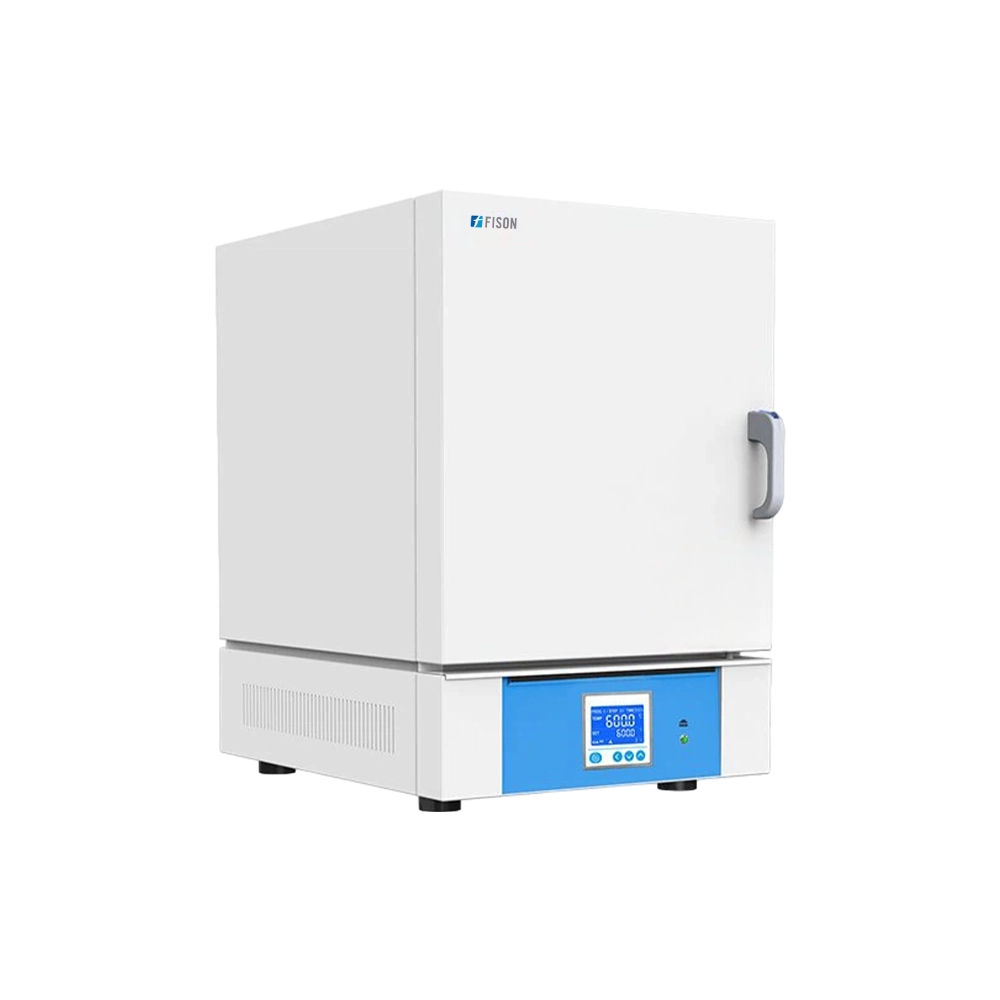

Muffle Furnace FM-MF-A208
Muffle Furnace FM-MF-A208 achieves a maximum temperature of 1200°C, ensuring consistent thermal performance. Its advanced PID controller, featuring an intuitive LCD interface, allows for accurate temperature regulation with minimal overshoot. Its robust construction incorporates high quality insulation materials, promoting energy efficiency. Designed for durability and user convenience, it stands as a reliable choice for high-temperature applications.
Specifications
| Capacity | 12 L |
| Working Temperature | 1100⁰C |
| Maximum Temperature | 1200⁰C |
| Insulation Material | Alumina ceramic fiber |
| Heating Element | Fe-Cr-Al |
| Heating Time | 30-52 Mins |
| Present start and off | Yes |
| Thermocouple type | K Type |
| Programmable Controller | Yes |
| Power Consumption | 6 kW |
| Power Supply | 380V 50/60HZ Three Phase |
| Interior Dimensions (W×D×H) | 300×200×200 mm |
| External Dimensions (W×D×H) | 490×690×730 mm |
Features
- Includes microcomputer PID controller
- Integrated combustion chimney system
- Incorporated power failure memory
- Built-in start and off function
- High-quality heating element
Applications
- Muffle Furnaces are commonly used in quenching, annealing, and tempering of small steel parts which are applied in industrial and mining enterprises, universities and research institutes. It can also be used as a pre-treatment for sintering, and ashing analysis of metal, stone, tools and ceramics.
