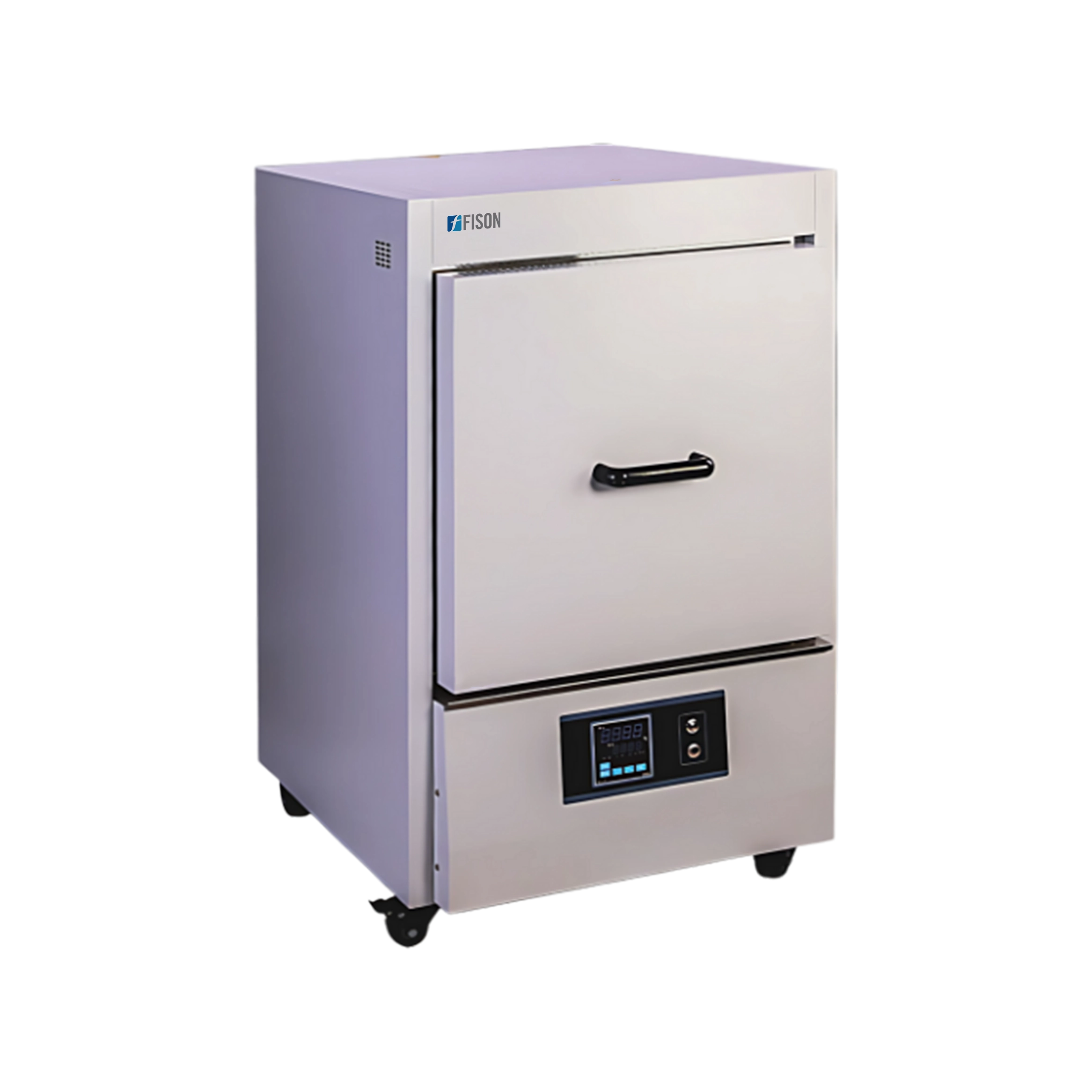

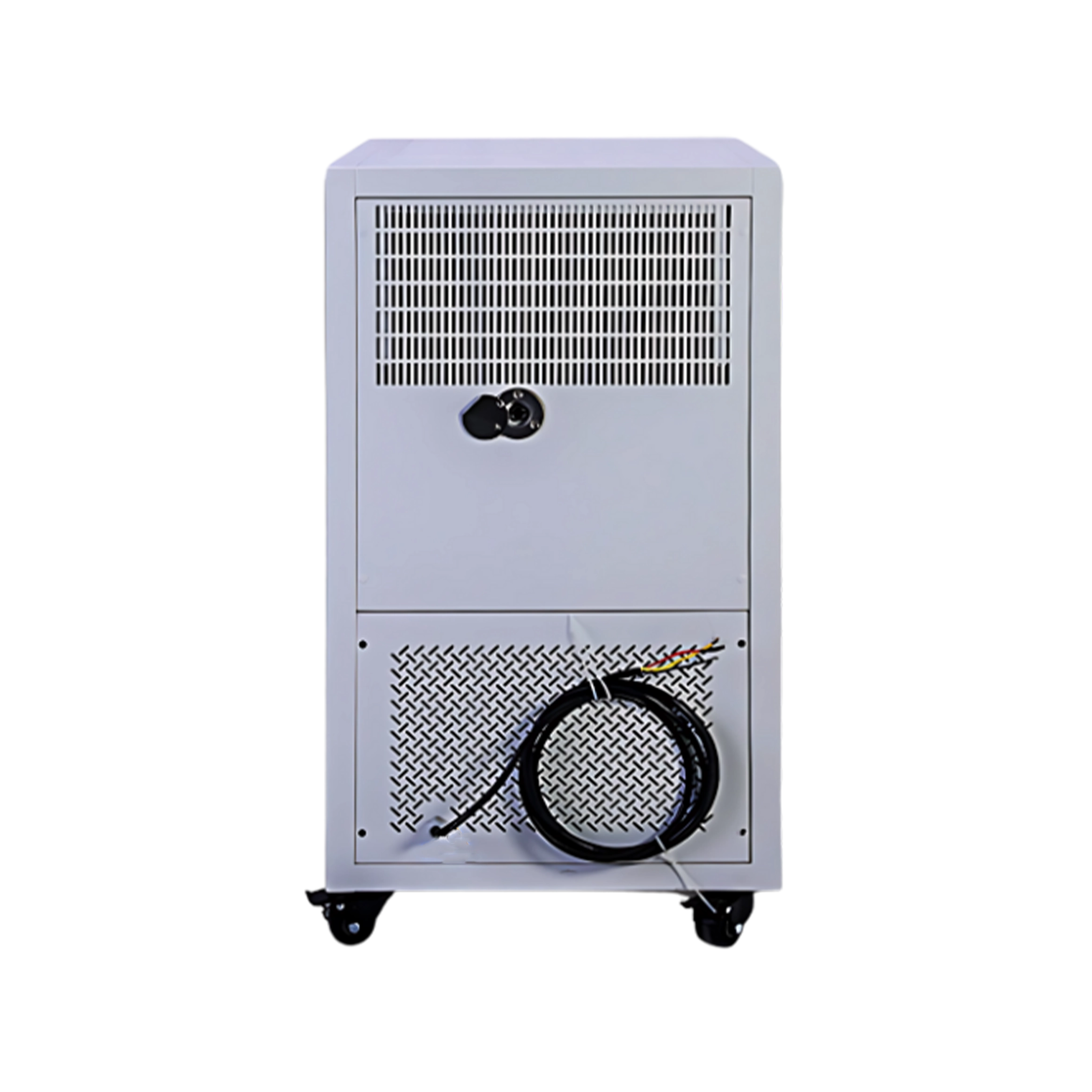

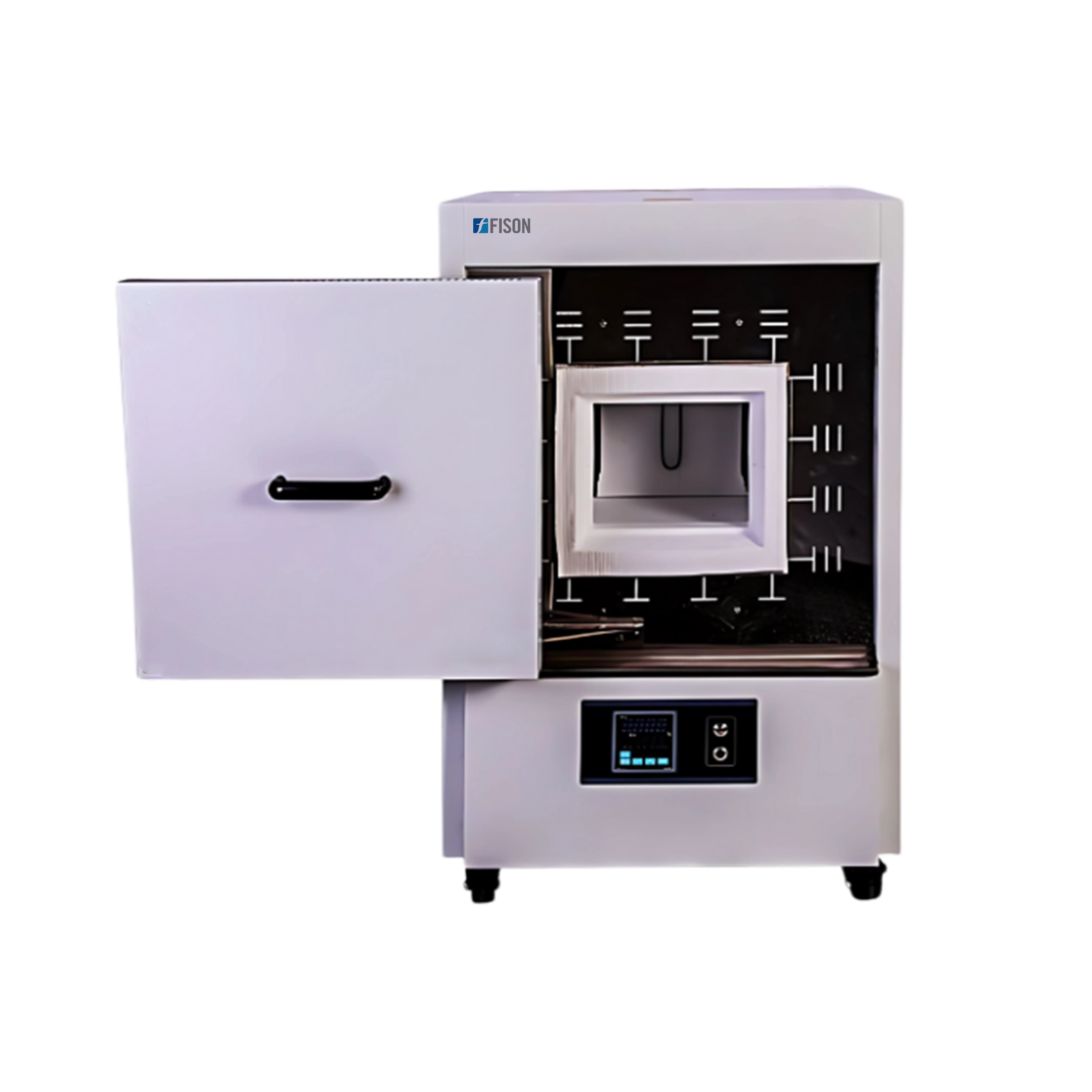

Muffle Furnace FM-MF-C100

Muffle Furnace FM-MF-C100 offers a temperature range of 300 to 1800℃, providing precise heating for various laboratory and industrial applications. This includes a vacuum-formed polycrystalline mullite fiber chamber that provides heat preservation and uniform heating. It features a PID temperature control system for stable temperature management. Our Muffle furnace has a built-in exhaust device for efficient ashing and a clean working environment.

Specifications

Temperature Range 300 to 1800℃
Resolution 1℃
Volatility ±1℃
Heating Time ≤60min
Capacity 12 L
Sensor B thermocouple
Muffle Ceramic fiber
Heater Silicon molybdenum rod
Timer 0 to 999.9 hours
Frequency 50 Hz
Power Consumption 12,000W
Power Supply AC380V
Packing Dimensions (W×D×H) 840 × 985 × 1390 mm
Dimensions (W×D×H) 680 × 858 × 1182 mm
Net Weight 150 kg
Gross Weight 170 kg

Features

  • Advanced programming options
  • Low power consumption
  • Extended lifespan components
  • Integrated alarm system
  • Multi-function control options

Applications

  • Muffle Furnace FM-MF-C100 is used for ashing biological samples, processing tissue samples, and conducting material analysis in research laboratories. It ensures accurate high-temperature treatment, essential for studies in biochemistry, molecular biology, and environmental sciences.

Accessories Optional

  • Silicon molybdenum rod
    Muffle
    Sensor

1100°C Muffle Furnace

Fison 1100°C Muffle Furnace have a combustion chimney system that safely expels gases or fumes from high-temperature operations. They have cold-rolled steel sheets with a powder coating to enhance energy efficiency. The high-quality heating element is equipped to ensure quicker reaction rates and shorter processing times. These have incorporated power failure memory to store and recall its operating settings. Our 1100?C muffle furnaces have low shell surface temperature providing an insulating effect on the ceramic fiber.

Muffle furnace FM-MF-A100

  • Capacity : 4.5 L
  • Internal dimensions : 150 × 300 × 100 mm
  • External dimensions : 420 × 540 × 570 mm
Catalog

Muffle Furnace FM-MF-B100

  • Capacity : 2 L
  • Working Temperature : 1000⁰C
  • Maximum Temperature : 1100⁰C
Catalog
Muffle Furnace FM-MF-B101
  • Capacity : 7 L
  • Working Temperature : 7 L
  • Maximum Temperature : 1000⁰C
Catalog

1200°C Muffle Furnace

Fison 1200°C Muffle Furnace features a maximum temperature is 1200?C to ensure quicker reaction rates and shorter processing times. They have high-quality heating elements to ensure quicker reaction rates and shorter processing times. Their combustion chimney system safely expels gases, fumes, or byproducts from high-temperature operations. The furnaces feature a microcomputer PID controller for convenience use. Our muffle furnaces incorporated Power failure memory to store and recall its operating settings.

Muffle Furnace FM-MF-A200
  • Capacity : 12 Liters
  • Maximum Temperature : 1100°C up to 1200°C
  • Operating Temperature Range : 300°C to 1000°C
Catalog

Muffle Furnace FM-MF-A201

  • Capacity : 7 L
  • Maximum Temperature : 1200 °C
  • Temperature Rising Time : <30 minutes
Catalog

Muffle Furnace FM-MF-A202

  • Maximum Working Temperature : 1200℃
  • Capacity : 30 L
  • Continuous Working Temperature : 1050℃
Catalog

800°C Muffle Furnace

Muffle Furnace FM-MF-A300
  • Capacity : 5 L
  • Maximum Temperature : 850°C
  • Working Temperature Range : 300 to 800°C
Catalog
