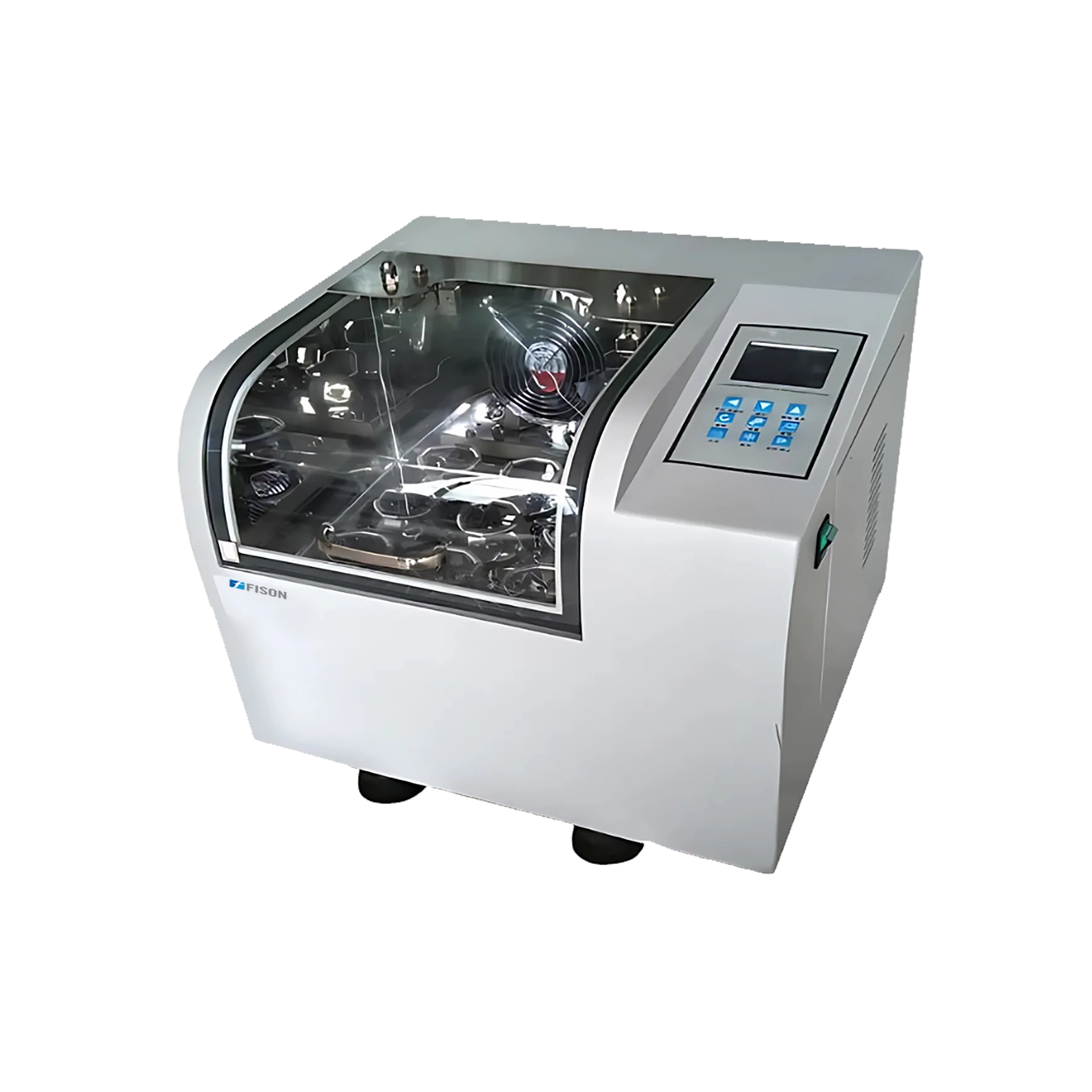

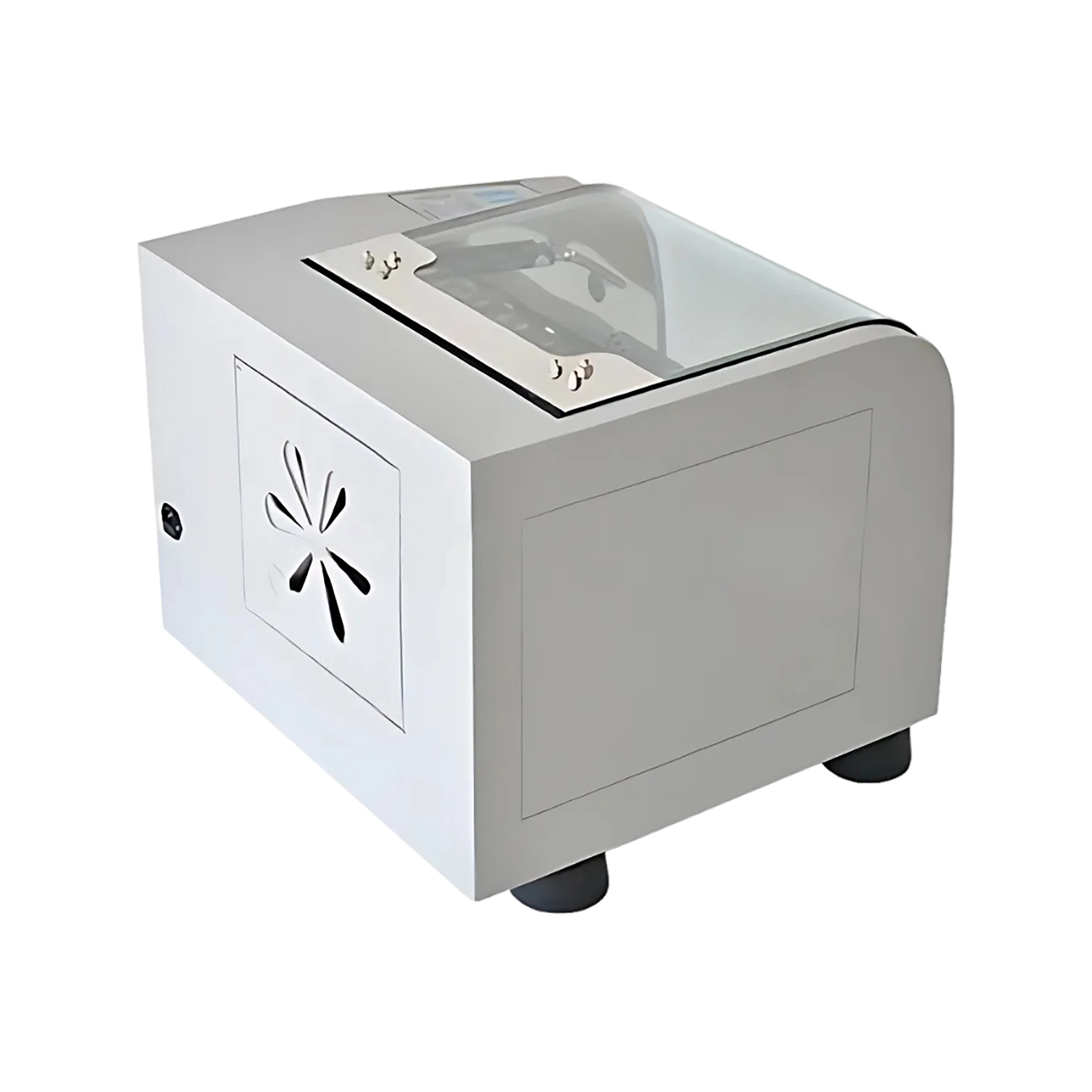

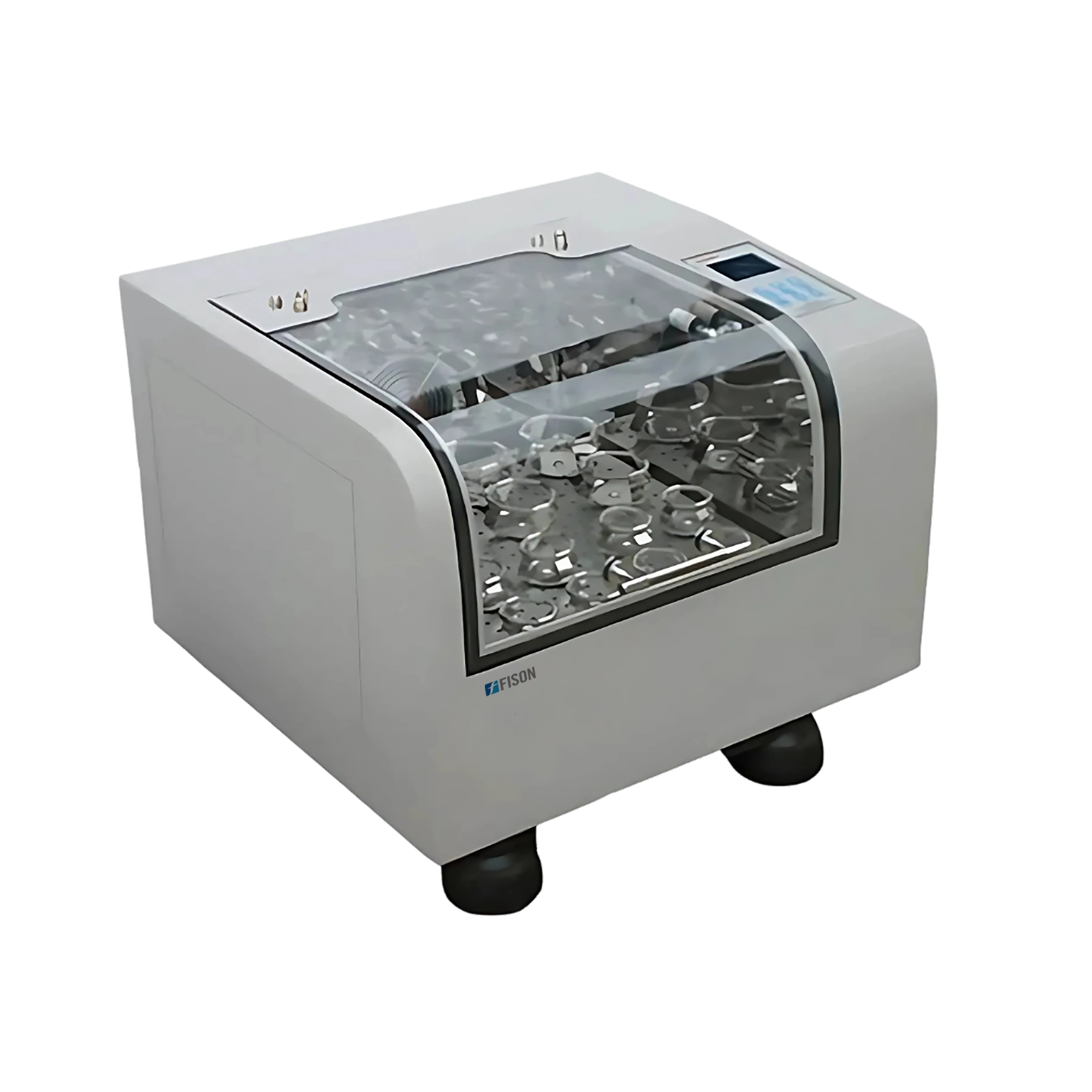

Benchtop Shaking Incubator FM-SI-A102
Benchtop Shaking Incubator FM-SI-A102 is a microprocessor controlled multifunctional incubator, integrated with incubator and shaker. It offers 70 L chamber capacity and 30 to 400 rpm speed range, performs automatic liquid shaking, separation and temperature control (incubation) function together. The shaker plate works using two techniques, low speed big range rotation or high speed point vibration. Designed with static sound, durable ABS plastic body and transparent armoured glass visual window.
Specifications
| Chamber capacity | 70 L |
| Rotating speed range | 30 to 400 rpm |
| Speed accuracy | ± 1 rpm |
| Vibration amplitude | 26 mm |
| Standard Flasks Configuration | 50 ml × 5, 100 ml × 5, 250 ml × 4, 500 ml × 3 |
| Maximum Flasks Configuration | 100 ml × 20, 250 ml × 16, 500 ml × 12, 1000 ml × 5 |
| Timing range | 0 to 999 h |
| Temperature control range | Ambient temperature 5°C to 60°C |
| Temperature uniformity | ± 1°C |
| Display mode | LCD |
| Tray dimension | 450 mm × 410 mm |
| Tray quantity | 1 pcs |
| Power | 580 W |
| Power supply | AC 220 V to 240 V, 50 Hz to 60 Hz |
| Internal dimension | 480 × 450 × 320 mm |
| External dimension | 780 × 682 × 560 mm |
| Net weight | 100 kg |
| Gross weight | 120 kg |
Features
- Equipped with ABS plastic body cover, transparent glass window and stainless steel chamber
- Back light big size LCD control panel
- Memory function for operating parameter
- Avoid repeated or mistaken operation by code lock
- Recovery with power connect uninfluenced from electricity cut off
- Auto stop protection when the door opens ensure security of operator
- Gas pull rod for easy opening of door
- Auto stop at heating and warning when temperature over pre-setting is 3°C
- Brushless DC motor for smooth functioning
- Automatic temperature adjustment avoid tedious temperature adjustment setting
- Heating rate setting as per test requirements
Applications
- Used for environmental treatment, bacterial cultivation, fermentation, hybridization, biological chemical reaction, enzyme and cell tissue culture research.
