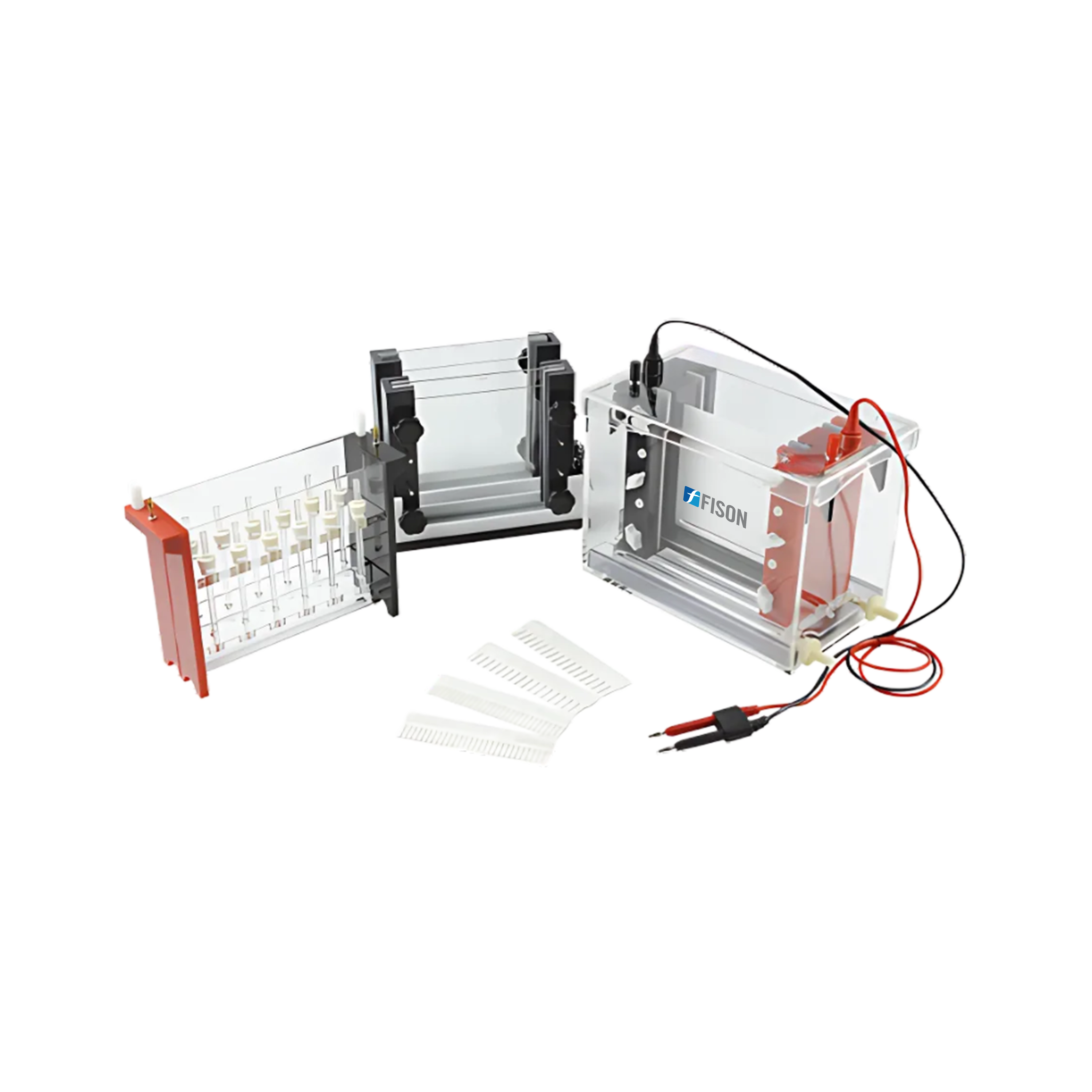

2D Gel Electrophoresis System FM-GES-A100 supports gel sizes of 143×139 mm and enables two-dimensional protein analysis by combining isoelectric focusing and SDS-PAGE separation. It accommodates 17 to 58 samples, allowing high-throughput protein separation. It operates with low current, features independent tanks for each dimension, and provides effective cooling. The easy-open lid and auto shut-off enhance user safety. It is ideal for high-resolution protein profiling and comparative proteomics applications.
$3,016.00
| Length of glass tube of 1st D Tube Gel Electrophoresis | 120mm |
| Gel diameter of 1st D Tube Gel Electrophoresis | 1.0, 2.0 mm |
| Gel size of 2nd D Tube Gel Electrophoresis (W×L) | 143×139mm |
| Gel thickness of 2nd D Tube Gel Electrophoresis | 1.0, 2.0 mm |
| Number of gels | 2 pcs |
| Number of samples | 17 to 58 |
| Total buffer volume | 2500 ml |
| Dimension (L×W×H) | 460×230×400 mm |
| Weight | 13.2 kg |
| Accessories | Quantity |
| Lid with cables | 1 |
| Body tank | 1 |
| 1st D core with electrodes | 1 |
| 2nd D core with electrodes | 1 |
| Notched glass plates | 4 |
| Spacer plate with 1.00 mm glass spacer | 2 |
| 1.0 mm thickness 21-well comb | 2 |
| 2.0 mm thickness 21-well comb | 2 |
| 1.0 mm thickness 29-well comb | 2 |
| 2.0 mm thickness 29-well comb | 2 |
| 1.0 mm diameter glass tube | 12 |
| 2.0 mm diameter glass tube | 12 |
| Rubber plug | 24 |
| Gel casting stand | 1 |
| Silica gel tube | 3 |
2D Gel Electrophoresis System combines isoelectric focusing and SDS-PAGE for high-resolution protein separation. It features separate tanks for each dimension, ensuring independent and efficient runs. With cooling compatibility and an easy-lift lid, it supports stable, user-friendly operation. It avoids the need for high-current power supply and includes safety auto shut-off. Ideal for proteomics research, protein profiling, and comparative expression studies.
