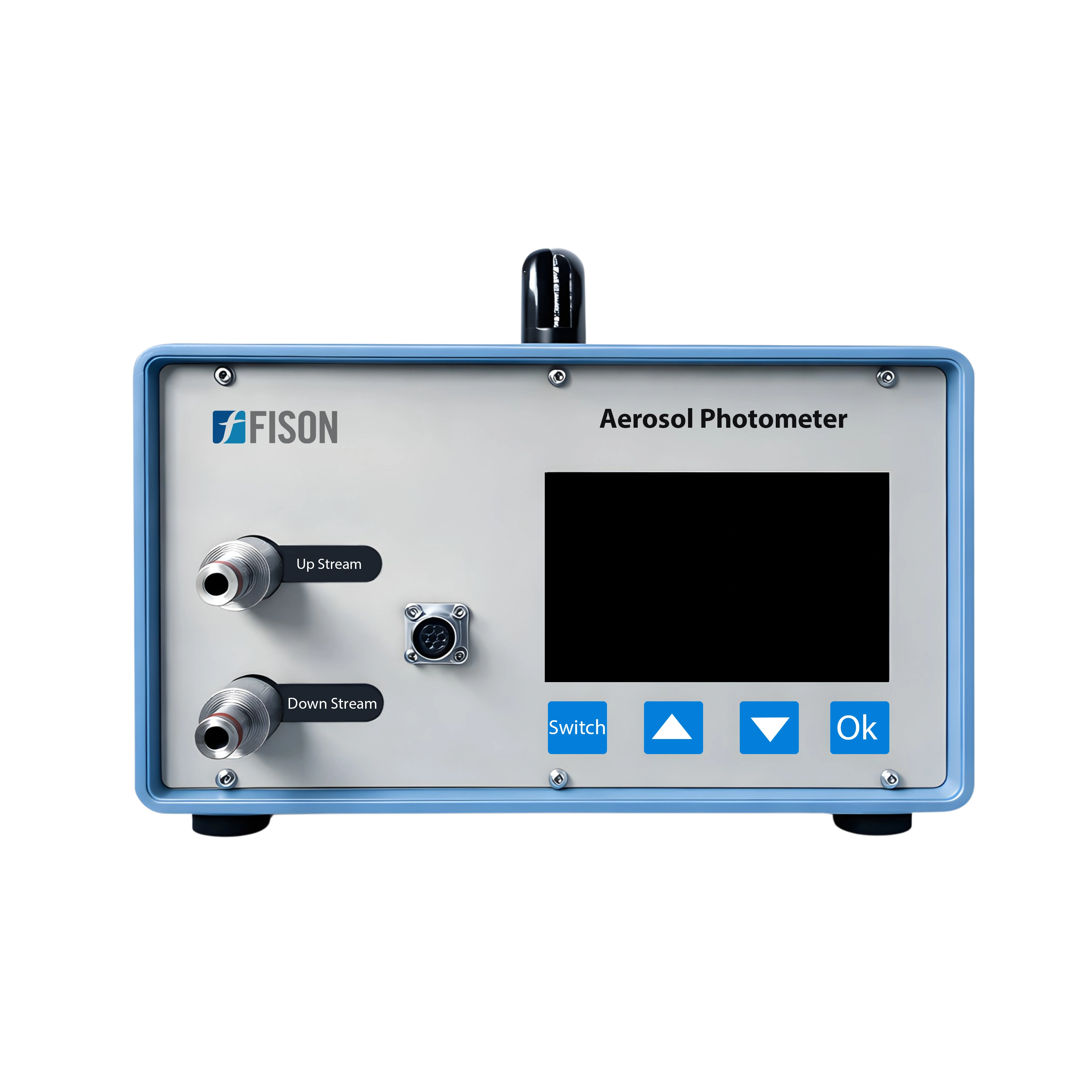

Fison Aerosol Photometer FM-APM-A100 enables accurate aerosol concentration measurement and filter integrity verification. It features a dynamic range up to 600 µg/L, an automatic range of 0.0001% to 100.0%, and the ability to detect particles as small as 0.01 µm for precise testing. The integrated HEPA filter tester capability supports leak detection and containment validation. Equipped with a solid-state scattering chamber light source, RS232 connectivity, audio and video alarms, a 2.8-inch LCD, and multiple reporting modes.
$18,387.00
| Dynamic Range | Up to 600 µg/L |
| Automatic Range | 0.0001 % to 100.0 % |
| Sensitivity | 1% of Readings for Ranges ≥0.01% to 100% |
| Repetitiveness | 0.5% of Readings for Ranges ≥0.01% to 100% |
| Illuminant | Solid-State Scattering Chamber Light Source |
| Instrument Shell | Aluminum Cast |
| Aerosol Challenge Agents | PAO, DEHS, Ondina |
| Output | RS232 Port Connection / External Printer |
| Alarm System | Audio Alarm / Video Alarm |
| Lifespan | 50,000 to 100,000 hours |
| Reporting Modes | Continuous Mode / Storage Mode / Printing Mode |
| Scanning Probe | 2.5 m Connection Assembly |
| Display | 2.8-inch LCD |
| Power Supply | 220 V, 50/60 Hz |
| Size (W × D × H) | 260 × 370 × 160 mm |
| Weight | 10.5 kg |
Aerosol Photometer FM-APM-A100 is used for HEPA filter leak testing, cleanroom certification, containment validation, HVAC system verification, pharmaceutical production areas, hospitals, and semiconductor manufacturing facilities. It helps assess filter performance and monitor airborne particle concentrations in controlled environments.
Scanning Probes Upstream Sampling Tube Power Cord
Fison Aerosol Photometer enables aerosol concentration measurement and filter integrity testing across controlled environments. It offers a dynamic range of up to 600 µg/L and an automatic measurement range from 0.0001% to 100.0%. The system delivers 1% reading sensitivity and 0.5% reading repetitiveness for consistent results. Equipped with adjustable flow settings, high-sensitivity detection, and data logging capability, it supports applications including HEPA filter testing, cleanroom validation, containment verification, and air quality monitoring. The clear interface enables efficient operation and real-time measurement tracking.
