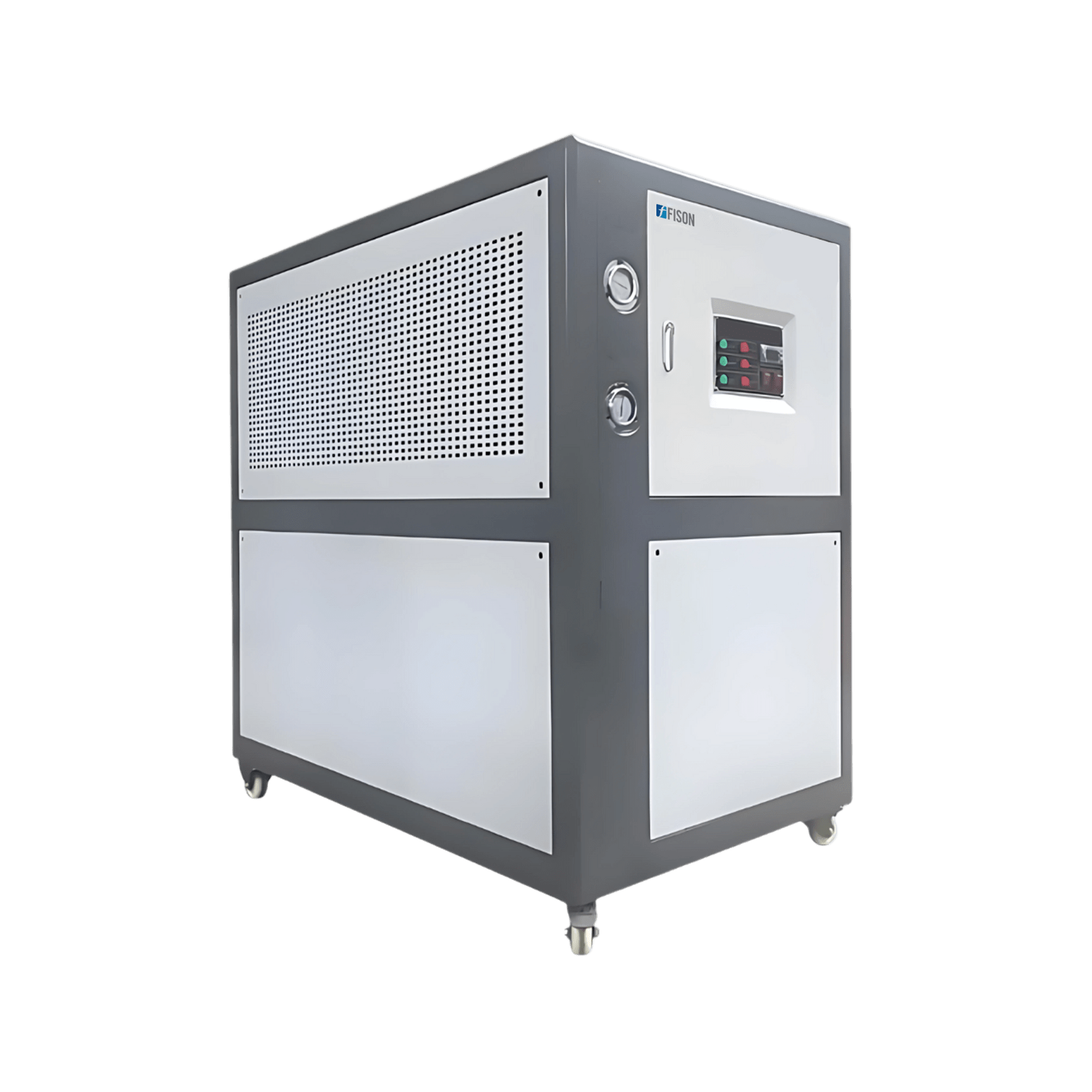

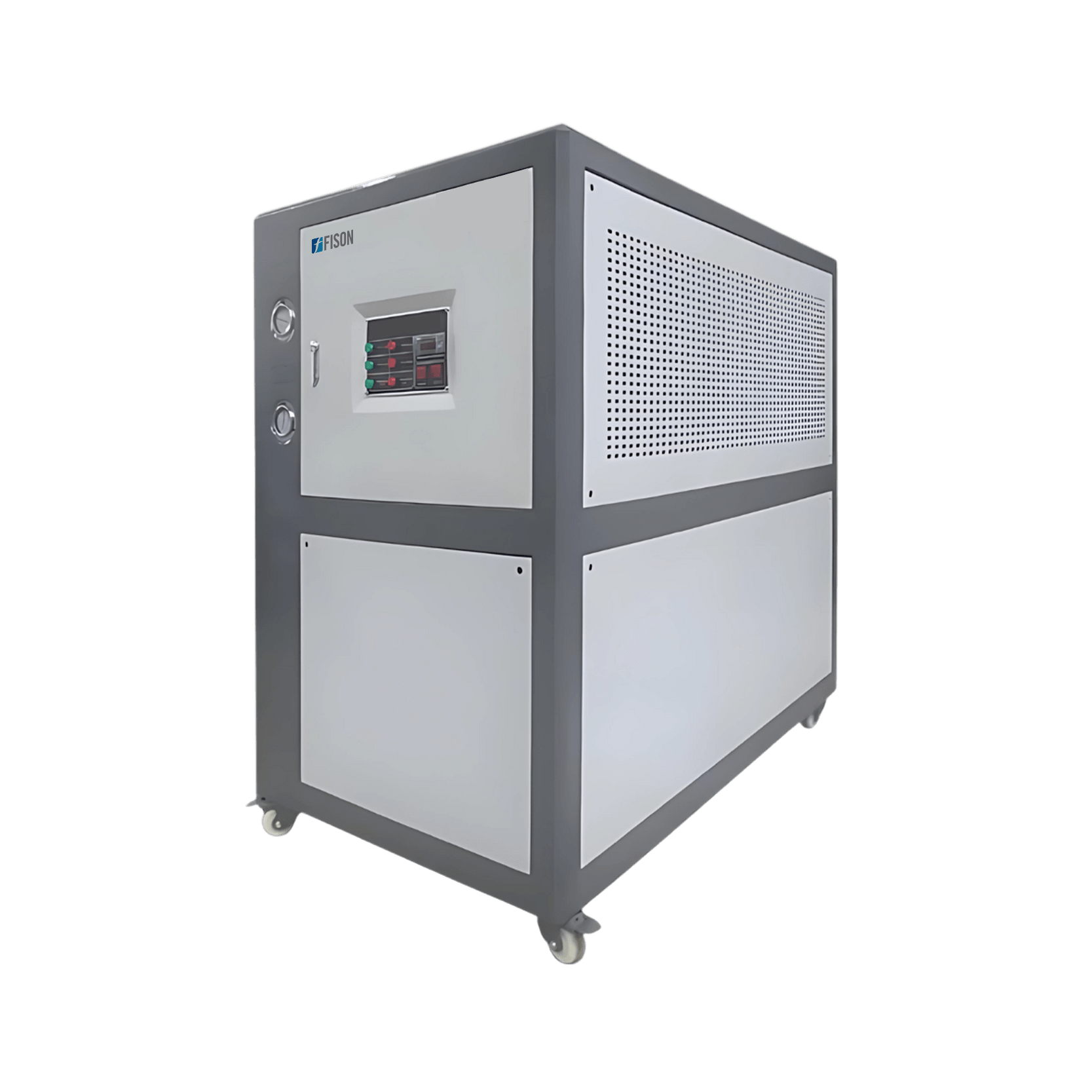

Air Cooled Chiller FM-AC-A103
Air Cooled Chiller FM-AC-A103 with a powerful 20KW cooling output producing 17,200 Kcal/h, is designed for heavy-duty thermal tasks. Powered by a hermetic scroll compressor for stable long-term usage. It operates with R404a refrigerants, paired with advanced expansion valve controls. Enhanced copper-aluminium condenser fins ensure high-speed heat exchange. It is engineered to deliver maximum efficiency and cooling stability in demanding conditions.
Specifications
| Cooling capacity | 20 KW, 17200 Kcal/h |
| Compressor type | Hermetic scroll |
| Operation power | 7.5 kw |
| Ambient temperature | Greater than 45°C |
| Refrigerant species | R404a |
| Refrigerant control mode | Expansion valve |
| Flow of refrigerated water | 3.44 m3/h |
| Pipe size | DN40 |
| Condenser | High performance copper cover aluminium fin |
| Evaporator type | Expansion valve |
| Noise lever | 60Db |
| protector | Anto-phase protection, no water protection, overload protection, compressor over temperature protection, high and low pressure protection |
| Power supply | 380V/50Hz |
| Dimension (L×B×H) | 1450×850×1450 mm |
| Weight | 210 kg |
Features
- Intelligent fault protection
- Quick start-up cycle
- Minimal vibration
- Sturdy build
Applications
- Our Air Cooled Chiller FM-AC-A103 is best suited for heavy-load industrial processes, manufacturing units, and equipment cooling that demand high-capacity refrigeration and uninterrupted temperature precision.
