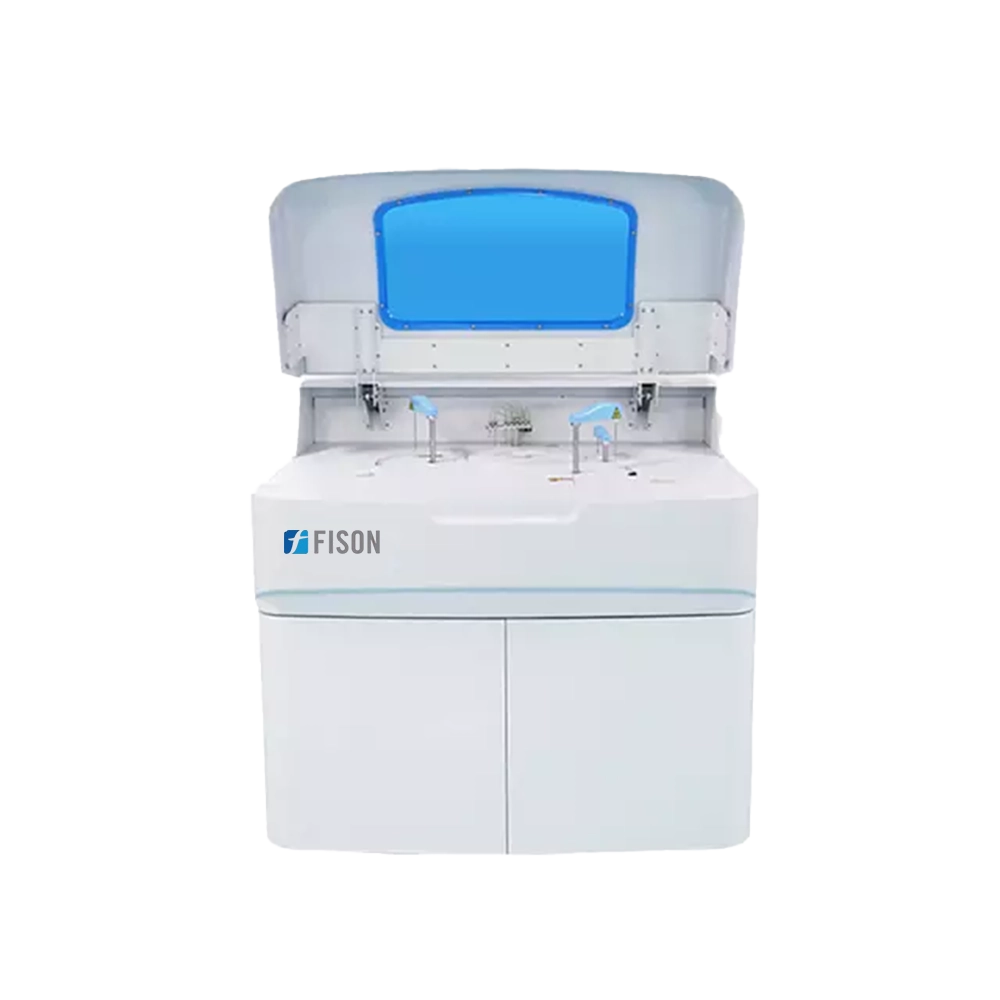

Automatic Chemistry Analyzer FM-ACA-B100
Automatic Chemistry Analyzer FM-ACA-B100 can perform 400 tests per hour with small sample volume of 1 to 70 µL. Sample probe features anti-collision and real time volume detection for accurate measurements. Stable tray temperatures facilitate efficacy of reagents during analysis. Integrated with user-friendly software for simplified data documentation. Our Chemistry Analyzer carries out end point, fixed point, kinetic and turbidimetry assays.
Specifications
| Throughput | 400 Tests / hour |
| Analysis Method | End-point, Fixed-time, Rate (Kinetic), Turbidimetry |
| Sample Volume | 1 to 70 µL |
| Number Of Sample Positions | 60 |
| Reagent Volume | 10 to 350 µL |
| Number Of Refrigerated Reagent Positions | 90 |
| Reagent Tray Temperature Range | 2 to 8 °C |
| Reaction Tray Temperature | 37 ± 0.1°C |
| Reaction Tray Temperature Control Type | Real time monitoring |
| Sample Probe | Teflon coating, anti-collision function, liquid level detection |
| Mixer Probe | Independent stirring |
| Probe Washing | 7 step automatic washing system, both interior and exterior washing |
| Cuvette Type | Reusable |
| Number Of Cuvette | 120 |
| Cuvette Optical Length | 6 mm |
| Cuvette Washing | Automatic |
| STAT Function | Yes |
| Optical System | Post-spectral spectrophotometry |
| Wavelength | 340, 405, 450, 480, 505, 546, 570, 600, 630, 700, 750, 800 nm |
| Absorbance | 0 to 3.5 |
| Light Source | Halogen-tungsten lamp, 12V/ 20W |
| Calibration | Both Linear and Non-Linear Linear: K factor, 1-point, 2-point, multipoint Non-Linear: Spline, Polygon, Logit-4P, Logit-5P |
| Quality Control | Real-time QC, Westgard multi rule, Cumulative Sum Check, Twin Plot (2D), Daily QC, Monthly QC |
| Software | Windows 7/8/10, 32 or 64bit |
| LIS System | Bi direction, supports HL7 protocol |
| Interface | LAN port access |
| Printer | External, multiple reporting modes |
| Working Temperature | 15 to 30°C |
| Operating Humidity | 40 to 85 % |
| Water Consumption | Deionized water: <12 L/h |
| Certifications | CE, FDA, ISO9001, ISO13485 |
| Power Supply | 220V ± 10% 50/60 Hz, 110V ± 10% 60 Hz, 500 VA |
| Dimensions (W × D × H) | 1170 × 775 × 1145 mm |
| Packaging Dimensions (W × D × H) | 1358 × 935 × 1387 mm |
| Net Weight | 190 kg |
| Gross Weight | 255 kg |
Features
- High-throughput processing
- Automatic sampling
- Built-in quality control mechanisms
- Real-time monitoring
- 7 step independent probe washing
- 120 reusable cuvettes
- Probe liquid level sensor
Applications
- Automatic Chemistry Analyzer conducts routine clinical tests, biomarker diagnosis and immunoassays in hospital settings. It is also utilized for nutritional, toxicological, environmental testing and quality control analysis.
