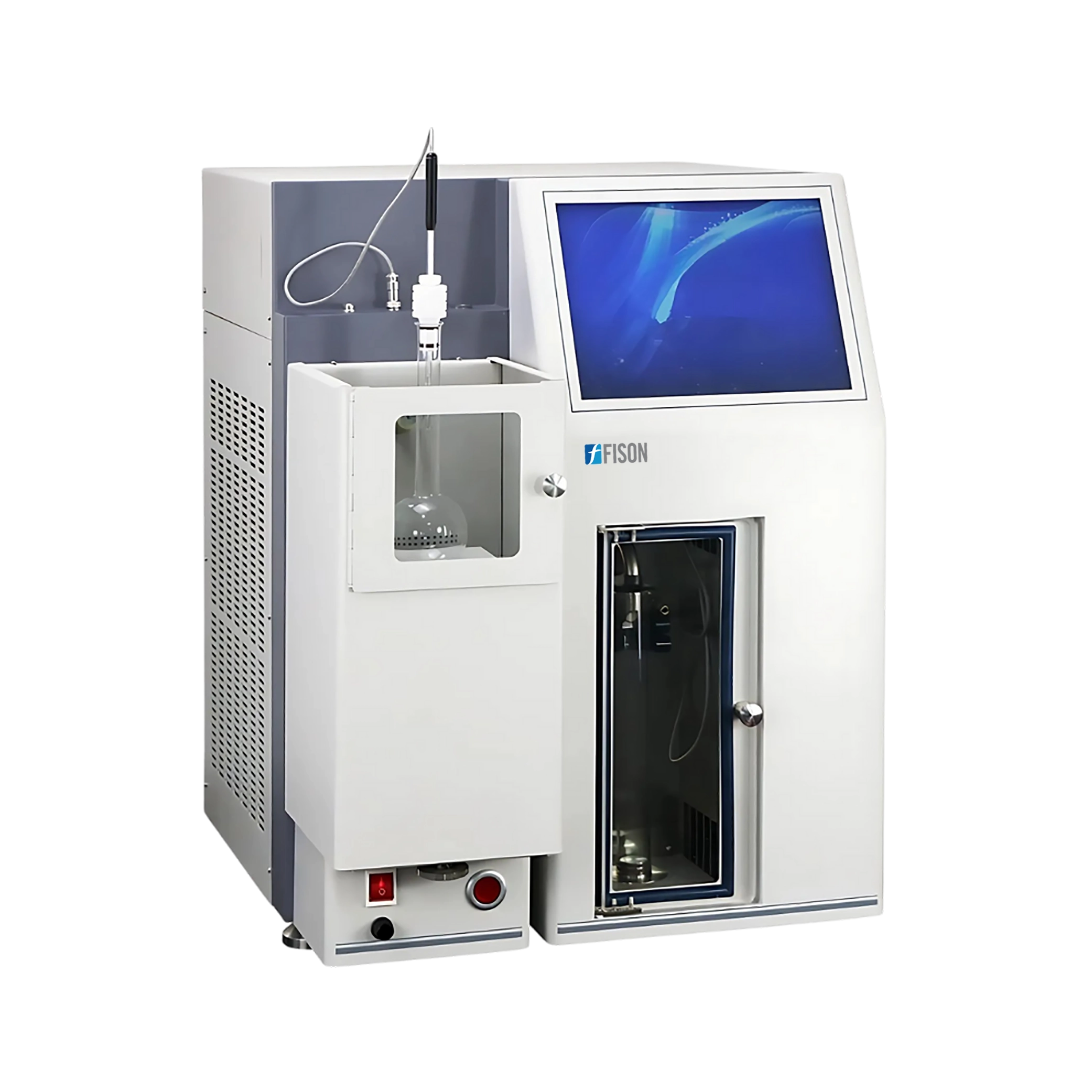

Automatic Distillation Unit FM-ADU-B100 offers a temperature range of 0 to 60°C, providing accurate temperature control. It delivers fully automated petroleum distillation analysis using advanced IPC technology and a 12.1-inch touch LCD. Its intelligent control system manages heating, cooling, and temperature tracking for consistent precision. Real-time vapor, heater, and rate curves enhance analytical accuracy and testing efficiency. Imported compressors and sensors ensure reliable, repeatable performance under varied laboratory conditions.
$23,300.00
| Temperature range of bath | 0 to 60℃ |
| Temperature control precision of bath | ±0.5℃ |
| Temperature control precision of receiving chamber | ±1℃ |
| Distillate liquid detection | 0 to100 ml Resolution 0.01ml |
| Distillate liquid detection precision | ≤ 0.1ml |
| Ambient Temperature | 10 to 35℃ |
| Relative Humidity | ≤ 80% |
| Distillation heater | 1000W, 24V |
| Power consumption | 2500W |
| Power supply | AC (220 ±10%) V, 50Hz |
| Dimension | 500 × 530 × 660 mm |
| Net weight | 85kg |
Fison Automatic Distillation Units employ fully automated evaluation of fluid boiling characteristics. They facilitate real-time monitoring of distillation parameters, such as temperature and pressure. They are incorporated with advanced AI algorithms for operational regulation. Their safety mechanisms include overheat protection, fire detection and thermal cut-off. We offer Automatic Distillation Units with barometric pressure corrected sensors and modern compressors.
