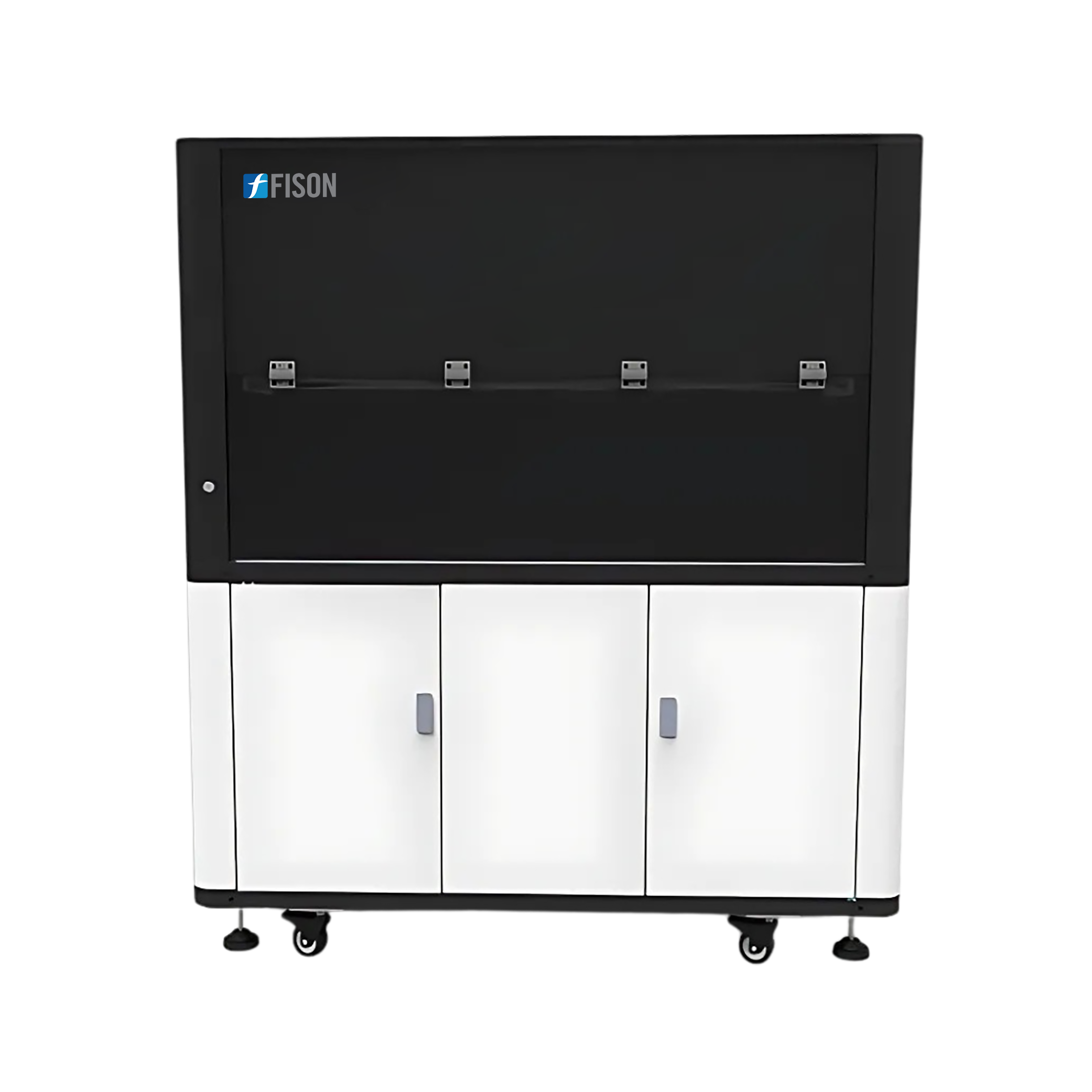

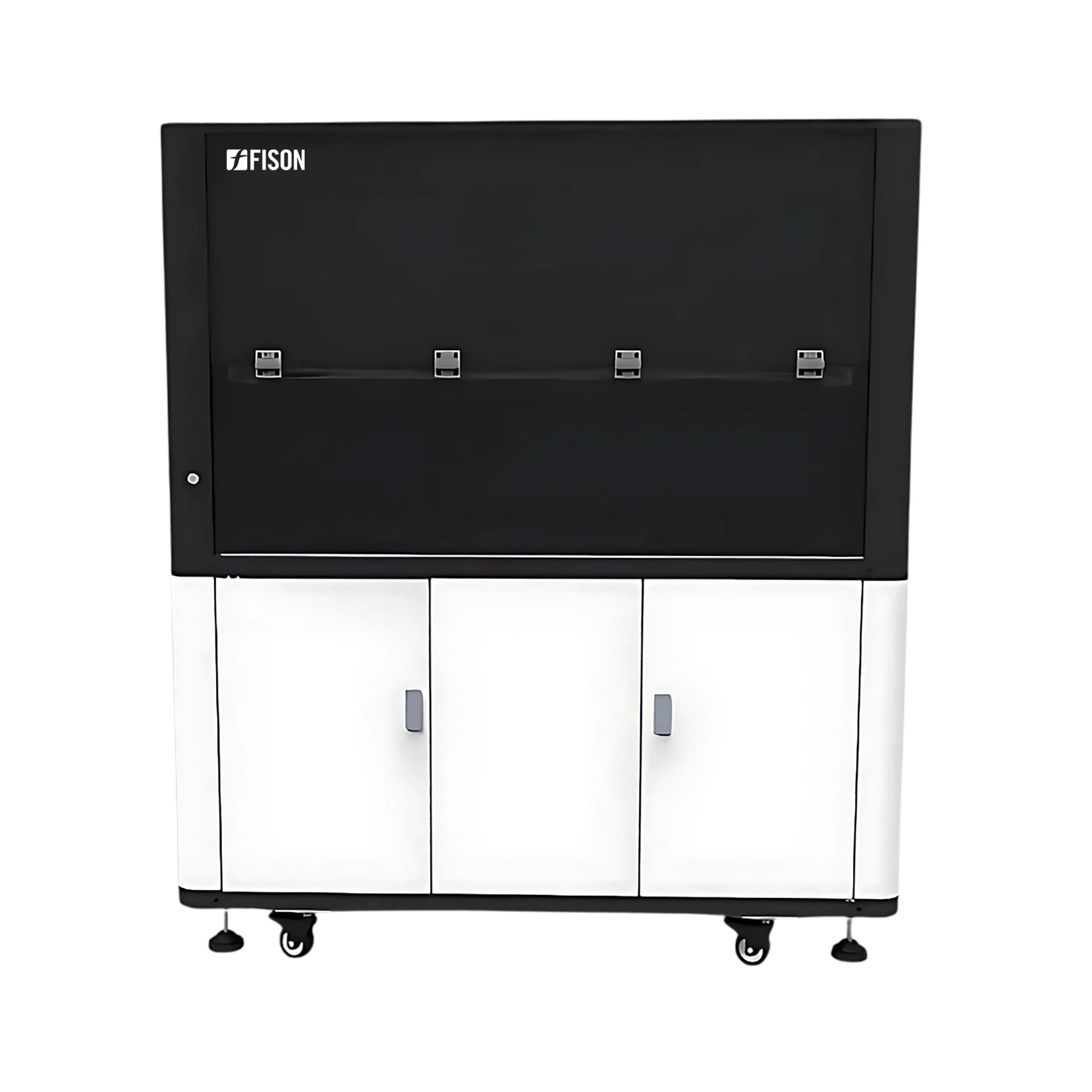

Fully Automatic Nucleic Acid Extraction System FM-NES-B100
Fully Automatic Nucleic Acid Extraction System FM-NES-B100 is equipped with a 96-throughput magnetic lifting frame and intelligent PLC control. It’s built in 4 channel pipetting system enhances accuracy while minimizing contamination risks. It has an intuitive software interface for real-time process tracking and procedure management. The anti-drip magnetic bead mechanism maintains sample integrity and prevents splash-induced errors. It is an ideal solution for high-throughput labs seeking efficient, automated nucleic acid preparation.
Specifications
| Environment condition | Temperature: 10 to 30°C RH≤80% |
| Barometric Pressure | 86 kPa to 106kPa |
| Altitude | ≤2000 m |
| Well to well variation | Well to well variation of the concentration of the extracted and purified product: greater than 2% |
| Sample dispensing accuracy | 20µL±5%; 100µL±2%; 800µL±1% |
| Sample dispensing repeatability | 20µL≤3%; 100µL≤1%; 800µL≤0.8% |
| Temperature control | Temperature is set at 65°C, the temperature value is within ±1°C of the set value and the fluctuation is not greater than 1°C |
| Plug | Meeting European standard system |
| Power supply | AC 200 to 240 V; 50/60 Hz |
| Dimension (L×B×H) | 150×90×190 cm |
| Packaging dimension (L×B×H) | 172×106×201 cm |
| Net weight | 300 kg |
| Gross weight | 392.5 kg |
Features
- Multi-mode suction monitoring
- High sampling precision
- Automatic loading function
- Adjustable fast cooling module
Accessories
Accessory Quantity Power Cord 1pc USB Cable 1pc Computer 1pc Tool Kit 1pc Control Software 1pc Waste Tip Container 1pc
Accessories Optional
Disposable Tips (300ul)
Disposable Tips (800ul)
Deep Well Plate (96 well)
Magnetic Shield (96 well)
