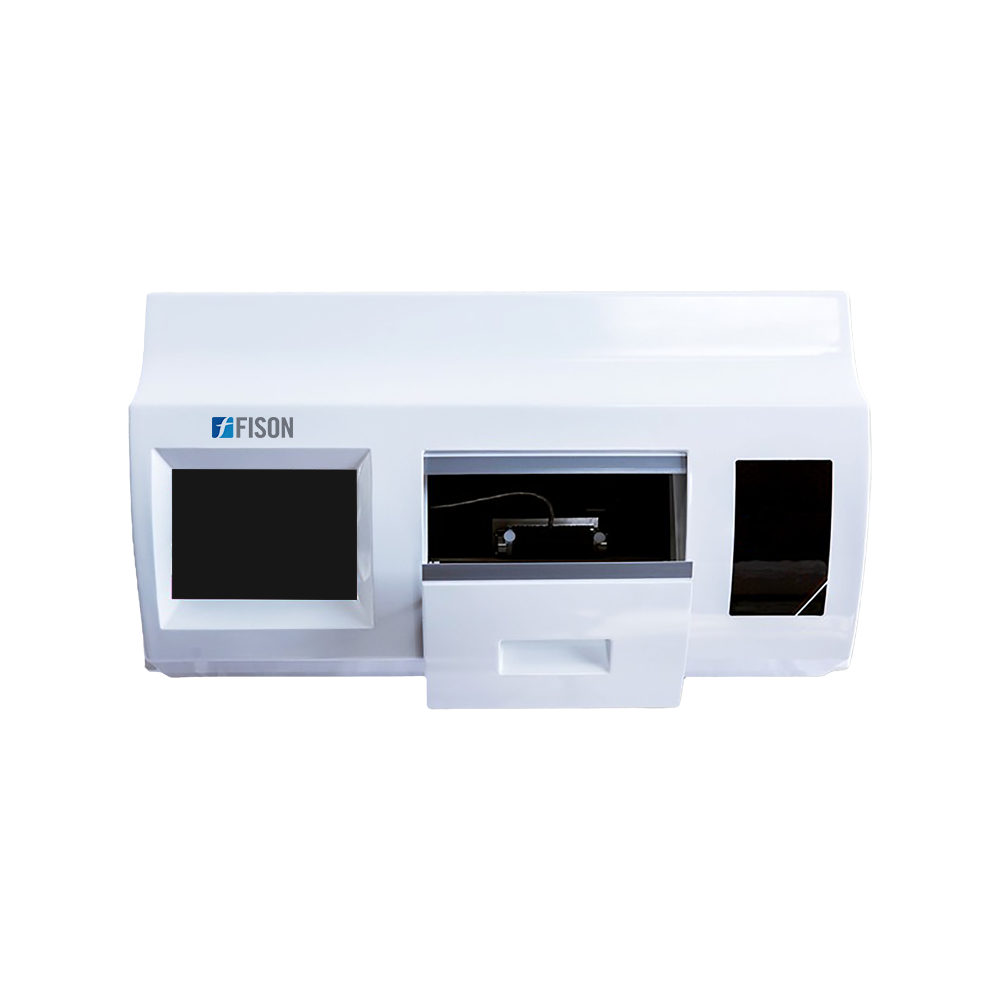

Fison Automatic Polarimeter FM-PMR-A101 features a ±90° optical rotation range, ±259°Z sugar measurement range, and 589.3 nm working wavelength for automated polarimetric analysis. This laboratory polarimeter incorporates Peltier temperature control from 10–60°C with 0.01°C resolution for controlled measurement conditions. It supports optical rotation, specific rotation, concentration, sugar content, and custom formula measurements, making it useful for controlled polarimetric analysis of optically active samples.
$10,670.00
| Measurement Modes | Optical Rotation, Specific Rotation, Concentration, Sugar Content, Custom Formula |
| Light Source | LED Cold Light Source + High-Precision Interference Filter |
| Working Wavelength | 589.3 nm |
| Measurement Range – Optical Rotation | ±90° |
| Measurement Range – Sugar | ±259°Z |
| Minimum Reading | 0.001° (0.0001° optional) |
| Accuracy | ±0.002° |
| Repeatability | 0.002° (Optical Rotation) |
| Temperature Control Range | 10–60°C, Peltier |
| Temperature Resolution | 0.01°C |
| Temperature Control Accuracy | ±0.03°C |
| Transmittance | 0.01% |
| Test Function | Single, Multiple and Continuous Measurement |
| Display | 8-inch TFT True-Color Touch Screen |
| Standard Test Tubes | 200 mm, 100 mm ordinary type, 100 mm temperature-control type |
| Data Storage | 64 GB |
| Automatic Calibration | Yes, with standard tube |
| Audit Trail | Yes |
| Electronic Signature | Yes |
| Method Library | Yes |
| Custom Formula | Yes |
| Cloud Service | Yes |
| MD5 Code Verification | Yes |
| User Management | Yes, four-level authority management |
| Data Export | PDF and Excel |
| Printing | General-purpose printer and Wi-Fi printing |
| Communication Interfaces | USB, RS232, VGA, Ethernet |
| Power Supply | 220 V ±22 V, 50 Hz ±1 Hz, 250 W |
| Instrument Level | 0.01 level |
| Dimensions (L × H × W) | 715 × 355 × 280 mm |
| Packing Dimensions (L × H × W) | 820 × 475 × 465 mm |
| Weight | 28 kg |
Automatic Polarimeter FM-PMR-A101 is used to measure the optical rotation, concentration, and purity of optically active substances such as sugars, pharmaceuticals, and chemical compounds. It supports analytical testing in pharmaceutical, chemical, food and beverage, and research laboratories.
Power cable Temperature control tube Optical rotation test tube 200mm Optical rotation test tube 100mm
Fison Automatic Polarimeter measure optical rotation, specific rotation, sugar degree, and concentration at a 589.3 nm working wavelength. With optical rotation ranges up to ±90°, these automatic digital polarimeters support multiple measurement modes for efficient and consistent polarimetric testing.
