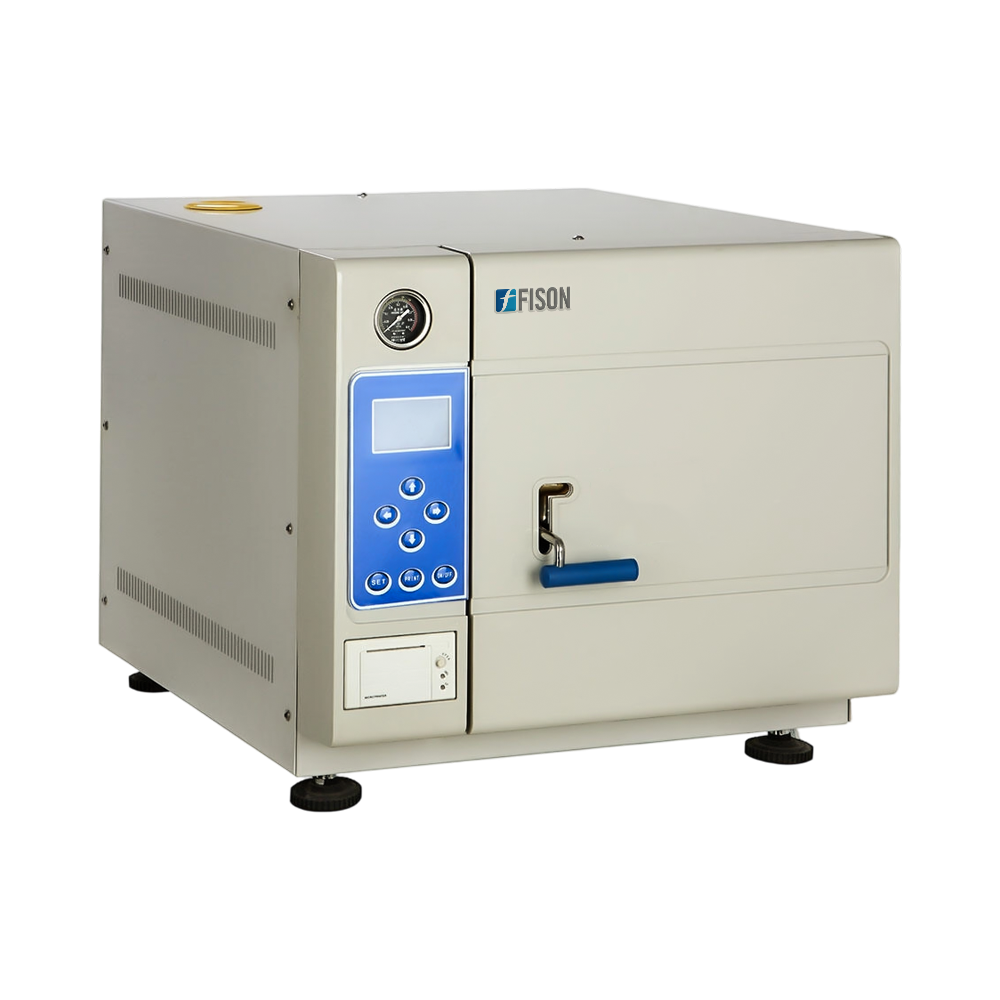

Benchtop Autoclave FM-BA-A101
Benchtop Autoclave FM-BA-A101 is a fully automatic, microprocessor controlled unit with 50 L capacity, 134°C working temperature, and 0.22 MPa working pressure. Made up of stainless steel chamber, offers four stainless steel sterilizing plates. The process of water addition, temperature rise, sterilization, drying steam discharge are controlled automatically. Equipped with steam water inner circulation system, no steam discharge, keeps the surrounding environment clean and dry.
Specifications
| Chamber Capacity | 50 L |
| Chamber dimension | 340 × 550 mm |
| Working pressure | 0.22 MPa |
| Working temperature | 134°C |
| Temperature adjustment range | 105 to 134°C |
| Heating time | 10 to 20 mins |
| Total sterilization time | 40 mins (ready time + heating time + sterilization time) |
| Timer range | 0 to 99 mins |
| Temperature accuracy | ≤ ± 1°C |
| Sterilizing plate | 4 pcs |
| Sterilizing plate dimension | 500 × 250 × 30 mm |
| Dimension | 770 × 600 × 540 mm |
| Packaging dimension | 880 × 730 × 700 mm |
| Power consumption | 2.7 kW |
| Power supply | AC 220 V, 50 Hz |
| Net weight | 86 kg |
| Gross weight | 105 kg |
Features
- Digital LCD display shows working status of autoclave
- Touch type key control panel
- 3 fixed cycles sterilization program, can be adjusted by user
- Automatic controlled processes: water addition, temperature rise, sterilization, drying the steam discharge
- Automatic shut off with beep reminder after completion of sterilization process
- Safety protection against water lacking
- Door safety lock system (hand pull up type handle)
- Four stainless steel sterilizing plates
- Automatically exhausts cool air
Applications
- Used for sterilization of surgical, dental, eye equipment, glassware, culture medium, biological dressing, food etc. across dental clinics, hospitals, school laboratories, scientific research labs, institutes.
