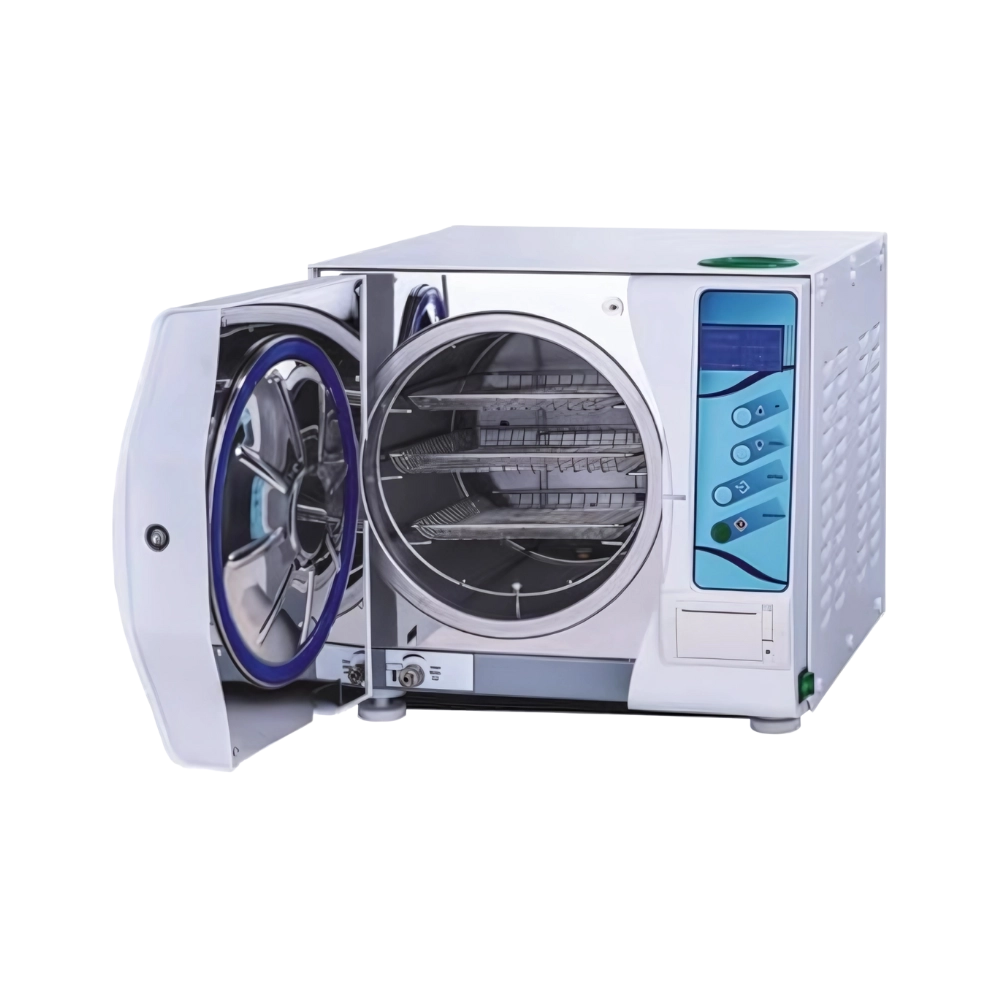

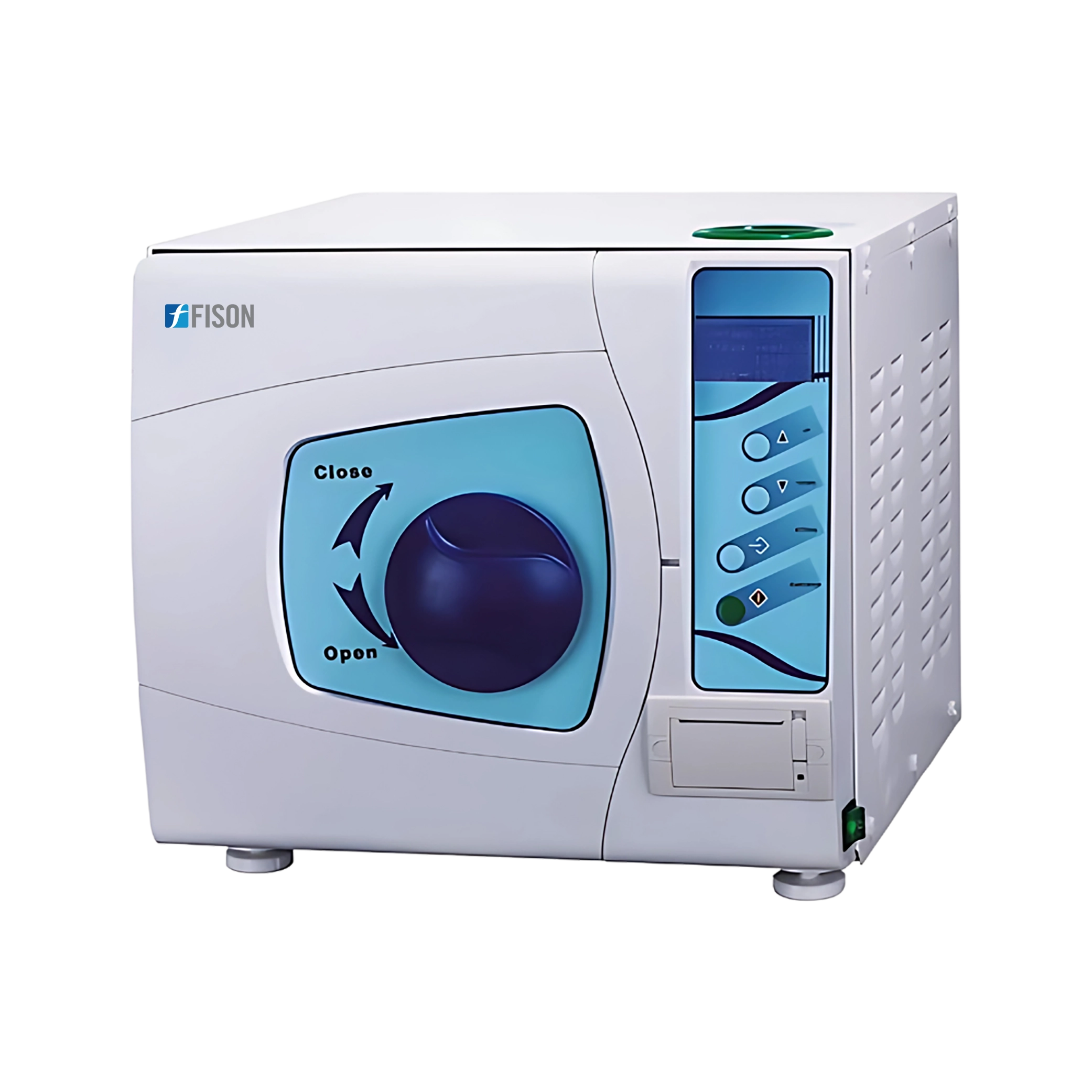

Benchtop Autoclave FM-BA-B102
Benchtop Autoclave FM-BA-B102 is a class B benchtop autoclave, comprising 3 pulsating-vacuum, offers 16 L of capacity and vacuum up to 0.09 MPa. Features B&D test and vacuum test procedures to test the penetrability with double lock door system for safety during operation. Designed with 304 stainless steel chamber, it has jet type of steam generator, ensures the efficient sterilizing. Equipped with imported & advanced 16-bit microprocessor, LCD display, and advanced self-test system, this autoclave has alarm system for waste water tank. With Optional built-in mini-printer or USB connector, it can also record the sterilizing process data.
Specifications
| Capacity | 16 L |
| Temperature Range | 134 °C /121 °C |
| Type | Class B benchtop autoclave |
| Recording Accuracy | ±0.5℃ |
| Sensor accuracy | 0.01℃ |
| Display accuracy | ±0.5℃ |
| Vacuum | up to 0.09 MPa |
| Residual Humidity | <0.2 RH |
| Pulsating vacuum | 3 |
| Test procedures | B&D test and vacuum test procedures |
| Controller | 16-bit microprocessor |
| Alarm system | Yes, for Waste water tank |
| Display | LCD |
| Door lock | Double lock door system |
| Printer | Built-in mini printer (optional) |
| Interface | USB |
| Chamber material | 304 stainless steel |
| Insulation | 2.5 mm |
| Steam-generator | Jet type |
| Power supply | AC220V/110V, 50/60 Hz |
| Power | 1800 W |
| Internal dimension | Φ230×360 mm |
| External dimension (W×D×H) | 445×550×395 mm |
| Packaging dimension (W×D×H) | 670×550×500 mm |
| Gross weight | 47 kg |
Features
- Class B benchtop autoclave, comprising 3 pulsating-vacuum
- B&D test and vacuum test procedures to test the penetrability
- Double lock door system for safety during operation
- 304 stainless steel chamber with jet type of steam generator
- Imported & advanced 16-bit microprocessor, easy to operate
- LCD display and advanced self-test system
- Alarm system for waste water tank, avoids waste water entrance into sterilizing circulation
- Optional inbuilt mini-printer or USB connector for recording the sterilizing process
- Suitable to sterilizing wrap, unwrap, solid, porous, hollow device
- High-efficient, convenient and easy-to-use
Applications
- Benchtop autoclave is used for sterilization of surgical, dental and eye instruments, glassware medicine, culture medium and biological dressing, food, etc. across dental clinics, hospitals, school lab, scientific research institutions and laboratory.
