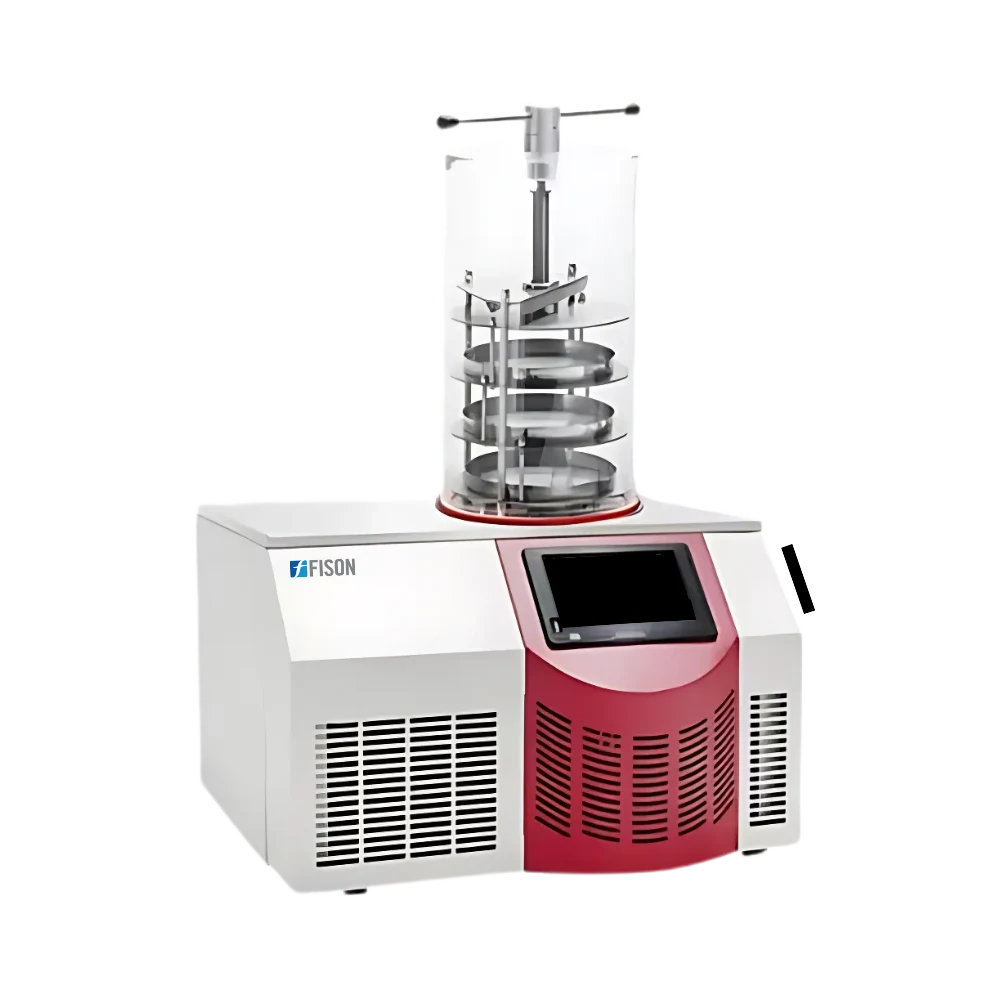

Benchtop Freeze Dryer FM-BFD-A101
Benchtop Freeze Dryer FM-BFD-A101 is equipped with 9 L condenser volume and 3 kg/24 h ice capacity for consistent result. It offers a condenser temperature of -55 °C and vacuum pressure below 10 Pa for optimal drying performance. It features a stoppering chamber for secure vial sealing during freeze drying. A microprocessor touch screen enables intuitive operation. Ideal for pharmaceuticals, biologicals, and lab-scale lyophilization processes
Specifications
| Freeze Drying Area | 0.09 m² |
| Freeze Drying Time | 24 h |
| Final Condenser Temperature | -55 °C |
| Ice Condenser Capacity | 3 kg/24 h |
| Condenser Volume | 9 L |
| Number of shelves | 3 |
| Material Loading Capacity/Shelf | 300 ml |
| Material Loading Capacity | 900 ml |
| Ultimate Vacuum | <10 Pa |
| Vacuum Pump Speed | 2L/S |
| USB Interface | Yes |
| Drying Chamber | Standard |
| Drying Chamber Material | Transparent acrylic |
| Control System | Microprocessor, touch screen |
| Penicillin Bottle Capacity Ø22 | 195 pcs |
| Penicillin Bottle Capacity Ø16 | 360 pcs |
| Penicillin Bottle Capacity Ø12 | 690 pcs |
| Power Supply | 220V/50Hz,60Hz |
| Dimension (W×D×H) | 582 ×541×374/684 mm |
Features
- Transparent acrylic chamber
- USB data interface
- Enhanced vacuum seal
- Easy chamber access
- Consistent drying results
Applications
- Benchtop Freeze Dryer FM-BFD-A101 is specially designed for freeze-drying products that require sealing under vacuum, such as injectable formulations and sterile vials. It is widely used in clinical trial material preparation, personalized medicine production, and small-batch pharmaceutical manufacturing.
