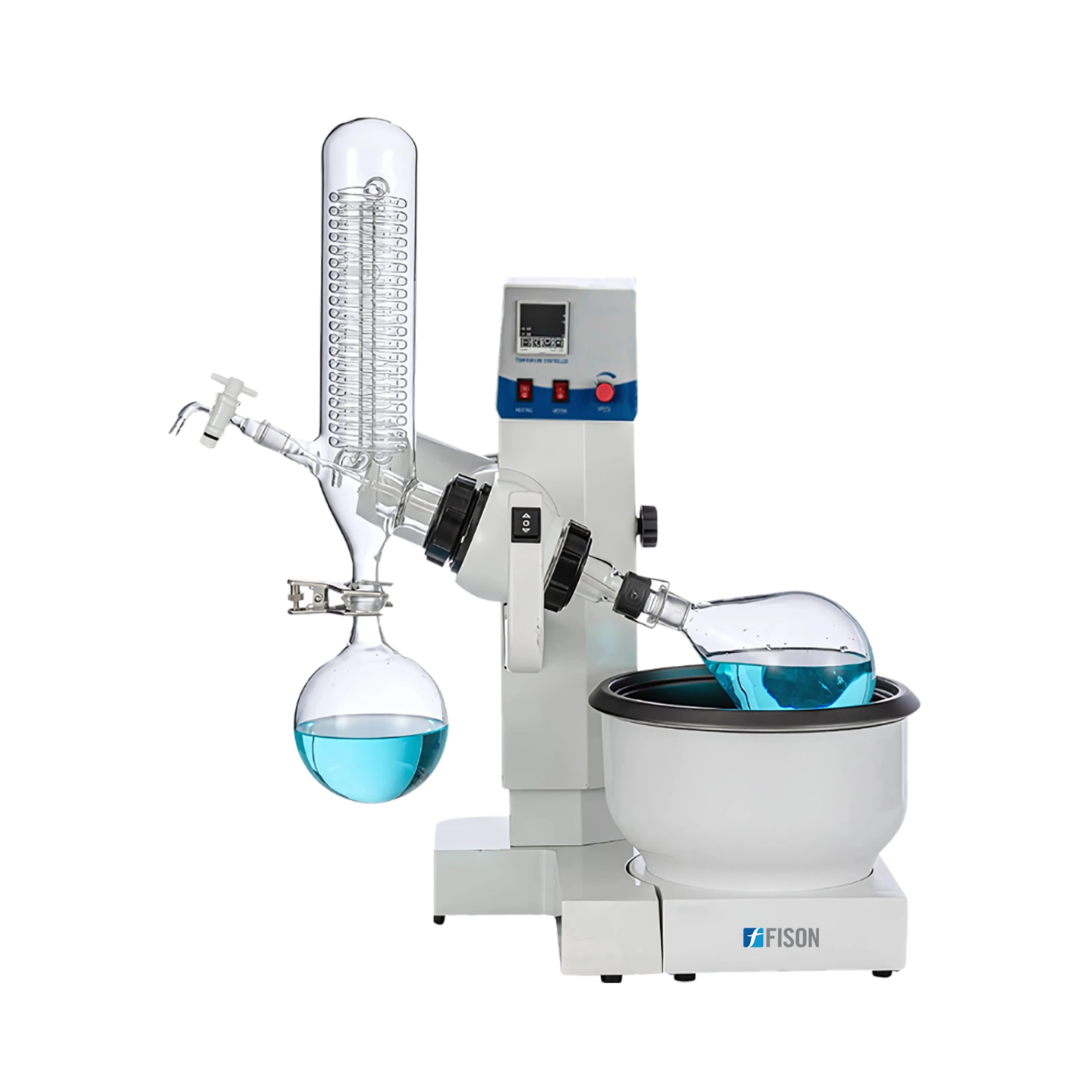

Benchtop Rotary Evaporator FM-BRE-A102
Benchtop Rotary Evaporator FM-BRE-A102 is built for 1-liter evaporation with a rotation speed of 0 to 200 rpm and a vacuum degree of 0.098 MPa. It features a PTFE + fluororubber double-sealing system to maintain vacuum integrity. It includes a 6.2 L bath for stable and uniform heating performance. It provides easy operation with a digital display panel.
$1,312.00
Specifications
| Rotation speed | 0 to 200 rpm |
| Bath size/volume | φ235×145 H mm, 6.2 L |
| Evaporating flask | Eggplant shape 1 L φ133 mm |
| Receiving flask | 1 L φ131 mm |
| Condensing area | 0.17 m² |
| Control panel | Digital display of temperature |
| Vacuum degree | 0.098 MPa |
| Temperature range | RT–99 °C (Water bath) / RT–180 °C (Oil bath) |
| Temp. accuracy | ±1 °C |
| Lifting distance | 120 mm |
| Lifting mode | Electric |
| Rotating motor power | 40 W |
| Lifting motor power | 20 W |
| Heating power | 1200 W |
| Power supply | 220 to 240 V / 50 Hz |
| Overall power | 1260 W |
| Dimensions | 630W×400 D×(690 to 810) H mm |
| Weight | 20.5 kg |
Features
- Digital display panel
- Smooth rotary control
- Compact bench-top design
- PTFE vacuum sealing
- Electric lift operation
- Reliable solvent recovery
Applications
- Benchtop Rotary Evaporator FM-BRE-A102 used for vacuum distillation, solvent removal, drying, and crystallization in pharmaceutical, chemical synthesis, food testing, and university labs.
Frequently Asked Question
1: How does the dual sealing system maintain vacuum integrity during extended runs?
The Bench-top Rotary Evaporator FM-BRE-A102 uses a PTFE and fluororubber seal combination that minimizes permeability under vacuum, ensuring consistent negative pressure and reducing solvent loss over time.
2: What are the operational benefits of dual-mode bath compatibility?
The Bench-top Rotary Evaporator FM-BRE-A102 supports both water and oil baths, allowing precise control of evaporation conditions—from low-temperature aqueous solutions to high-boiling-point solvents.
3: What protections are in place for continuous or unsupervised operation?
The Bench-top Rotary Evaporator FM-BRE-A102 includes independent overheat protection for both the motor and heating unit, preventing thermal overload and ensuring stable performance during long-hour use.
