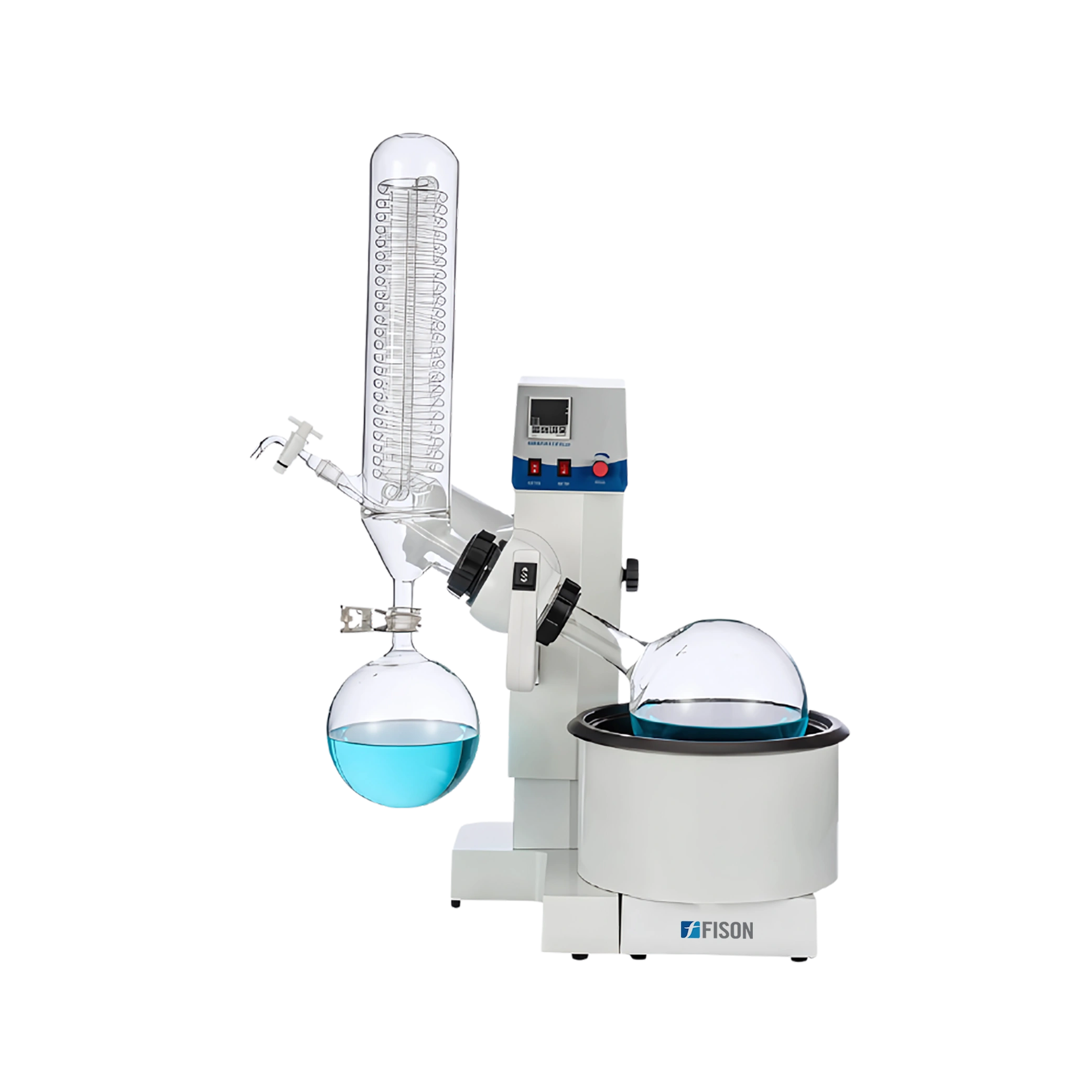

Benchtop Rotary Evaporator FM-BRE-A105 supports up to 3L evaporation with a rotation speed of 0 to 200 rpm and a vacuum degree of 0.098 MPa. It features a 6.2L water or oil bath, 120mm electric lift, PTFE plus fluororubber sealing, and a digital control display for temperature and speed.
$2,372.00
| Rotation speed | 0 to 200 rpm |
| Bath size & volume | φ255 × 155 H mm, 7.9L |
| Evaporating flask | 3L φ195mm |
| Receiving flask | 2L φ166mm |
| Condensing area | 0.26 square meters |
| Control panel | Digital display of temperature & speed |
| Vacuum degree | 0.098 MPa |
| Temperature range | RT to 99 °C (water bath) / 180 °C (oil bath) |
| Temperature accuracy | ±1 °C |
| Lifting distance | 120 mm |
| Lifting mode | Electric |
| Rotating motor power | 40 W |
| Lifting motor power | 20 W |
| Heating power | 1200 W |
| Overall power | 1260 W |
| Power supply | 220 to 240 V / 50 Hz |
| Dimensions (W × D × H) | 690 × 490 × (810 to 915) mm |
| Weight | 21.5 kg |
1: What type of seal is used in Benchtop Rotary Evaporator FM-BRE-A105?
It uses a dual-sealing system of PTFE and fluororubber for reliable vacuum retention.
2: Is the lifting operation manual or automatic?
FM-BRE-A105 features a smooth 120-mm electric lift system for convenience.
3: What protection features does this model include?
It comes with built-in motor and heater overheat protection for extended use.
4: Is FM-BRE-A105 suitable for academic labs?
Yes, it is compact, safe, and perfect for teaching, R&D, and quality control labs.
5: What design features improve user safety and reduce manual handling?
Features like the electric lift, anti-dry heating system, and vacuum release valve reduce exposure to hot surfaces and manual load bearing.
Fison Benchtop Rotary Evaporator is equipped with advanced double fuses and high safety protection performance for efficient rotation and heating. It is constructed with high borosilicate glass for enhanced durability and thermal shock resistance. This unit comes with a fluoro rubber double seal to ensure a high vacuum. They feature an integrated condenser for efficient cooling. Our Benchtop Rotary Evaporator includes a double coil design for a high recovery rate.
