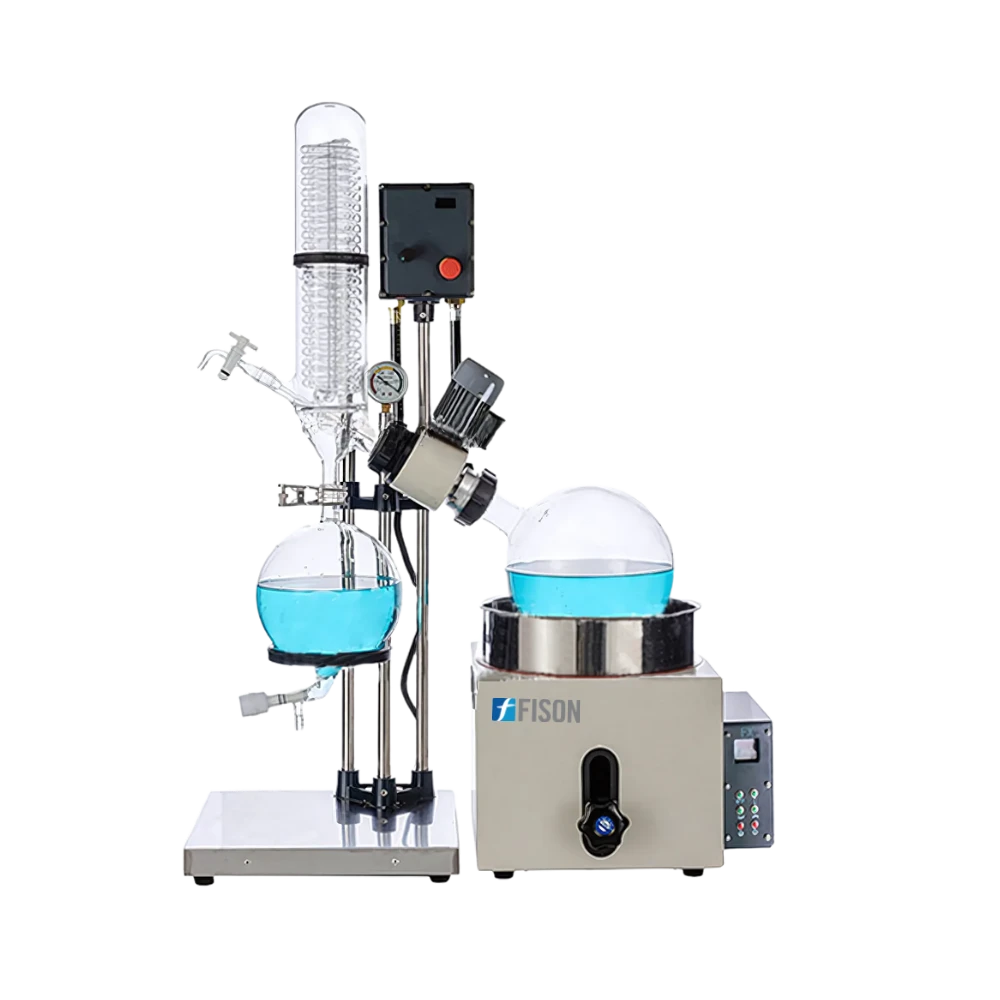

Benchtop Rotary Evaporator FM-BRE-C105
Benchtop Rotary Evaporator FM-BRE-C105 supports a rotation speed of 0 to 120 rpm, delivering smooth and efficient solvent evaporation. It includes a 5L evaporation flask ideal for high-volume chemical recovery. A 10.4L oil bath provides stable thermal performance, while the digital temperature display offers accurate real-time monitoring. It is engineered for secure and controlled operation in chemical, pharmaceutical, and industrial labs.
$2,195.00
Specifications
| Evaporating flask | Eggplant shaped 5 L |
| Receiving bottle | Round shaped 3 L |
| Rotation speed | 0 to 120 rpm |
| Heating bath volume | 10.4 L |
| Temperature range | RT to 180°C (oil bath) |
| Temp. control accuracy | ±1°C |
| Vacuum degree | 0.098 MPa |
| Lifting distance | 200 mm |
| Condensing area | 0.26 m² |
| Rotating motor power | 40 W |
| Heating power | 2000 W |
| Overall power | 2040 W |
| Power supply | 220 to 240V / 50Hz |
| Dimensions ( W × D × H) | 690 × 490 × 1090mm |
| Weight | 51 kg |
Features
- Explosion-proof design
- Wide speed range
- High thermal stability
- Vacuum seal compatible
- Durable lab construction
Applications
- Benchtop Rotary Evaporator FM-BRE-C105 is used for safe and efficient solvent recovery, concentration, and distillation in hazardous environments such as chemical, pharmaceutical, and industrial laboratories.
Frequently Asked Question
1: What explosion-proof standards does the Benchtop Rotary Evaporator FM-BRE-C105 comply with?
The system is engineered using explosion-proof motor and electrical components, compliant with IECEx and ATEX-rated zones for handling flammable solvents in hazardous environments.
2: How does the Benchtop Rotary Evaporator FM-BRE-C105 maintain vacuum stability during operation?
It features PTFE sealing, high-precision motor control, and reinforced glassware to ensure consistent vacuum levels up to 0.098 MPa with minimal leakage.
3: Can this model operate continuously for long periods without thermal drift?
Yes, its digital temperature regulation, high-grade thermal insulation, and motor protection circuit allow stable performance during extended distillation runs.
