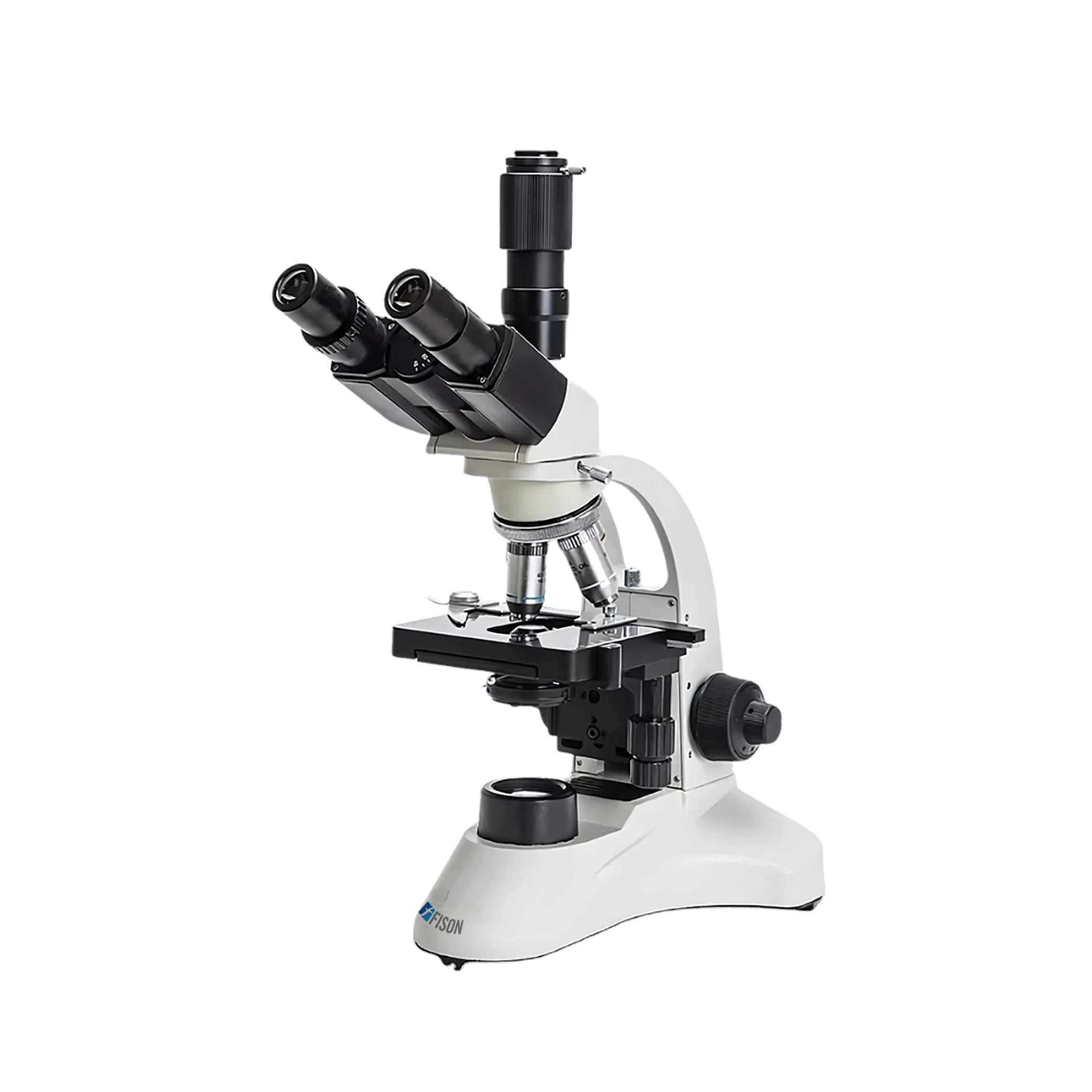

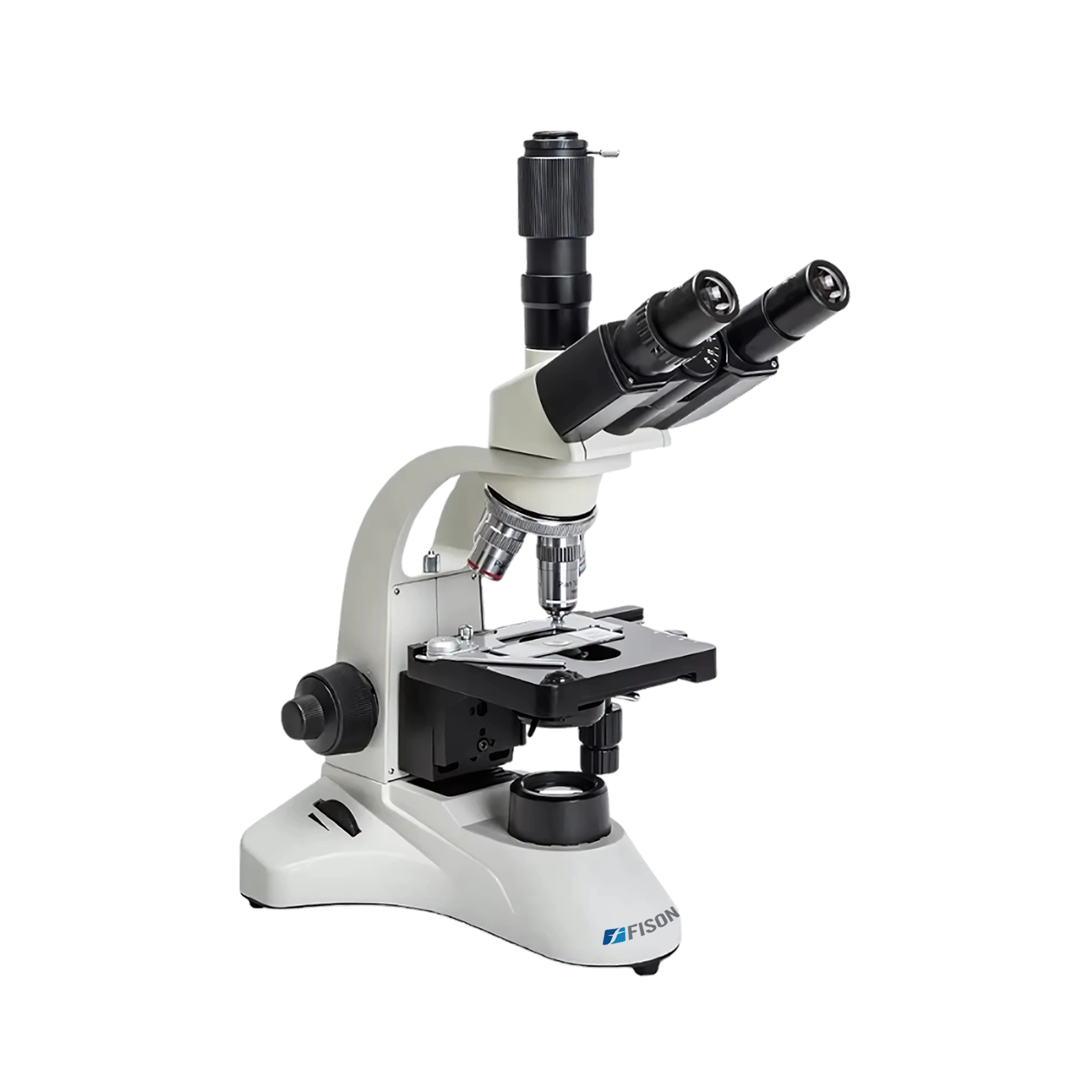

Biological Microscope FM-BM-A103
Biological Microscope FM-BM-A103 comes with trinocular 30° inclined viewing head, 40 to 1600X zoom magnification range, with camera attachment for microscopic observation. With ergonomic design, high quality plan achromatic objectives are used to reduce strain on eyes during observation.
Specifications
| Optical System | Finite Optical System |
| Viewing Head | Trinocular viewing head, 30° inclined, 360° rotation, interpupillary distance 48 to 75 mm |
| Magnification | 40X to 1600X |
| Objectives | Plan Achromatic objectives 4x, 10x, 40x (Spring), 100x (Spring, oil) |
| Eyepiece | Wide field WF10X/18mm and Wide field WF16X/15mm |
| Nosepiece | Inward, Quadruple revolving nosepiece |
| Focusing system | Coaxial coarse & fine focusing knob, coarse focusing range 20 mm, fine focusing graduation 0.002 mm |
| Stage | Double layer mechanical stage size: 115 × 125 mm, range: 76 × 52 mm |
| Condenser | Abbe condenser N.A.1.25, with iris diaphragm, and height adjustment knob |
| Illumination | 3W LED lamp, brightness adjustable |
| Power | External power supply (adapter), AC 100V-240V, DC 5V/2A |
| Voltage | 220 V, 50 Hz |
| Weight | 14 kg |
Features
- Finite optical system
- High zoom magnification range
- Trinocular (30° inclined) viewing head
- Built-in handle for easy access
- CCD camera attachment for digital photography
Applications
- Used for microscopic examination across medical, tissue culture industries, gemology, metallurgy, as well as inspection of electrical board, and others.
Accessories Optional
Accessories no. Name 1 Upper light source 2 Digital Eyepiece 2 MP 3 Digital Eyepiece 3 MP 4 Phone Adapter 5 Digital Camera 3 MP for Trinocular 6 Digital Camera 5 MP for Trinocular
