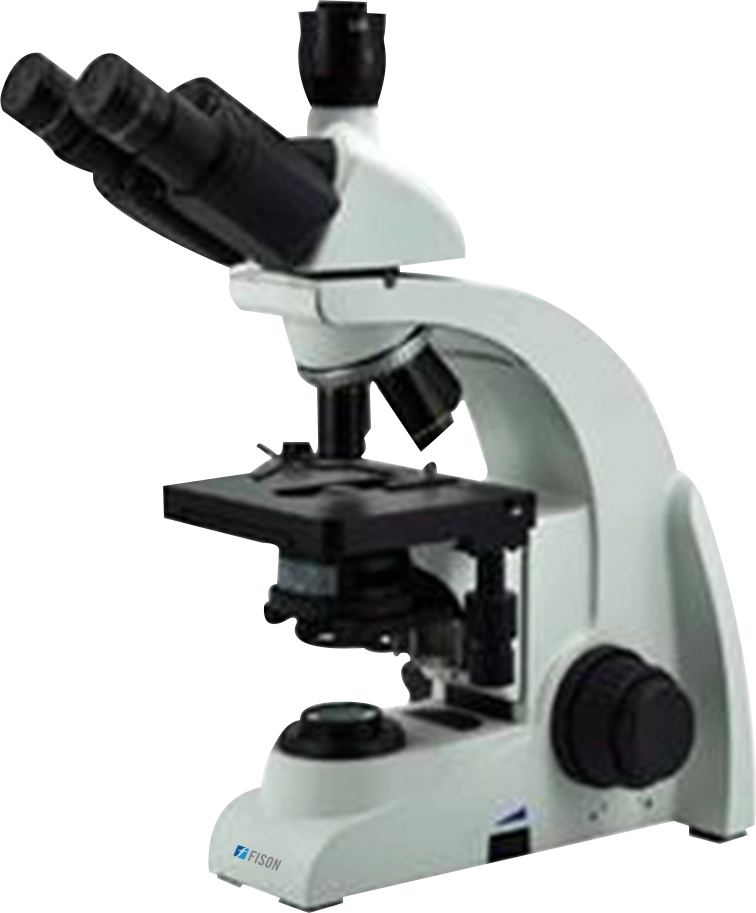

Biological Microscope FM-BM-C101
Biological Microscope FM-BM-C101 offers infinity plane achromatic optical system F = 200 mm. It has Siedentopf Trinocular Head, Inter-pupillary distance 52 to 75 mm, 30° inclined, trinocular light is split 50/50 by a high quality prism. Designed with infinite achromatic objectives 4X/0.13, 10X/0.30, 40X/0.70, 100X/1.25 (S, O) and a WF10X/18 mm eyepiece with the high point to provides better observation. Coarse and fine knob focusing with Division: 0.001 mm, Max: 20 mm. Swing type NA = 1.25 (O) with the Iris diaphragm with blue filter increases its quality of result.
Specifications
| Optical System | Infinity Optical System, F = 200 mm |
| Viewing Head | Siedentopf Trinocular Head, inter-pupillary distance 52 to 75 mm, 30° inclined, trinocular light is split 50/50 by a high quality prism. |
| Eyepiece | WF 10X/18 mm with the high point |
| Objective | Infinite Plan Achromatic Objective 4X / 0.13, 10X / 0.30, 40X / 0.70 (S), 100X / 1.25 (S,O) |
| Nosepiece | Quadruple Inward |
| Stage | Stage size: 142×135 mm, Moving Range: 76×52 mm |
| Focusing | Coarse and fine focusing knob, Division: 0.001 mm, Max: 20 mm |
| Condenser | Swing type NA = 1.25 (O) with the Iris diaphragm |
| Filter | Blue |
| C-mount | 1X |
| Illumination | 6 V 20 W Halogen Lamp, Adjustable |
| Packaging Dimension | 480×470×280 mm |
| Gross Weight | 9.1 kg |
| Net Weight | 6.7 kg |
Features
- Infinity Plane achromatic optical system
- Chromatic aberration and curvature of field are ideally corrected
- Objectives own higher NA and clear image with minimal flare
- Various accessories to meet applications for observations of light field, phase contrast, dark field and simply polarization attaches
- Heat-sink design maintain lower temperature after long time work
- Preferred for eyepieces observing as well as digital camera or computer capturing
Applications
- Biological microscopes are used to study organisms and their vital processes. Microscopes used in this field range widely, from relatively simple optical microscopes to very advanced imaging systems used in cell research, forensic medicine, and state-of-the-art high resolution molecular studies, etc.
Accessories Optional
Filter No. Name 1 Green 2 Yellow 3 Gross Glass
