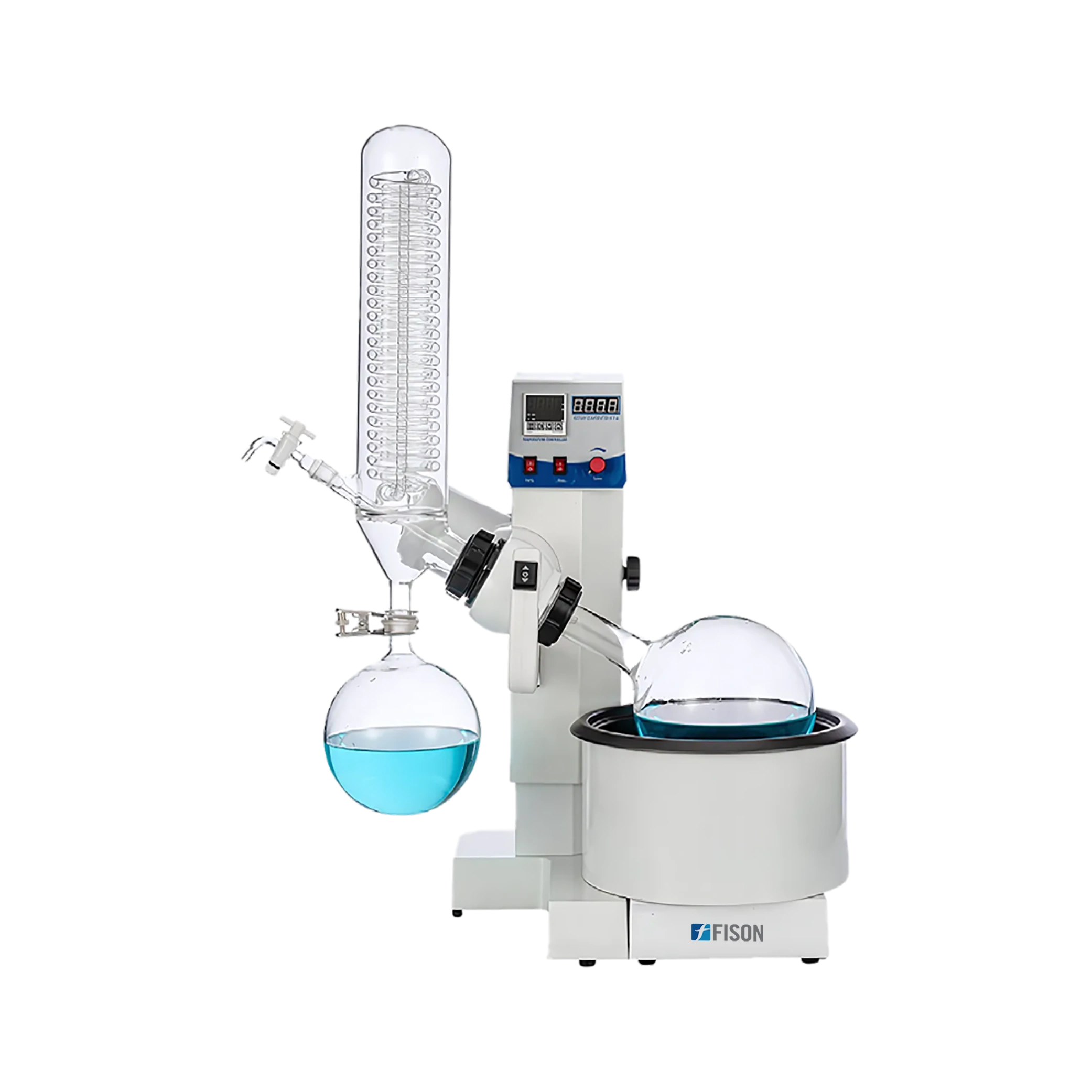

Benchtop Rotary Evaporator FM-BRE-A106 features a 3L evaporating flask, 2L receiving bottle, 200 rpm rotation speed, and 0.098MPa vacuum capability. It is engineered for efficient solvent recovery, distillation, and concentration in lab settings. The 7.9L heating bath and 120mm electric lift ensure smooth operation, while the digital display provides accurate, real-time control of temperature and speed.
| Rotation speed | 0 to 200 rpm |
| Evaporating flask | 3L φ195mm |
| Receiving bottle | 2L φ166mm |
| Temperature range | RT to 99°C (Water bath) / RT to180°C (Oil bath) |
| Temp. control accuracy | ±1°C |
| Lifting distance | 120mm |
| Lifting mode | Electric |
| Condensing area | 0.26m² |
| Bath size & volume | φ255×155H mm, 7.9L |
| Vacuum degree | 0.098MPa |
| Control panel | Digital display of temperature and speed |
| Overall power | 1260W |
| Rotating motor power | 40W |
| Lifting motor power | 20W |
| Heating power | 1200W |
| Power supply | 220 to 240V / 50Hz |
| Dimensions (L×W×H) | 690×490×(810 to 930) mm |
| Weight | 21.5kg |
Benchtop Rotary Evaporator FM-BRE-A106 Used for efficient solvent distillation, concentration, crystallization, and extraction in pharmaceutical, chemical, and academic labs.
