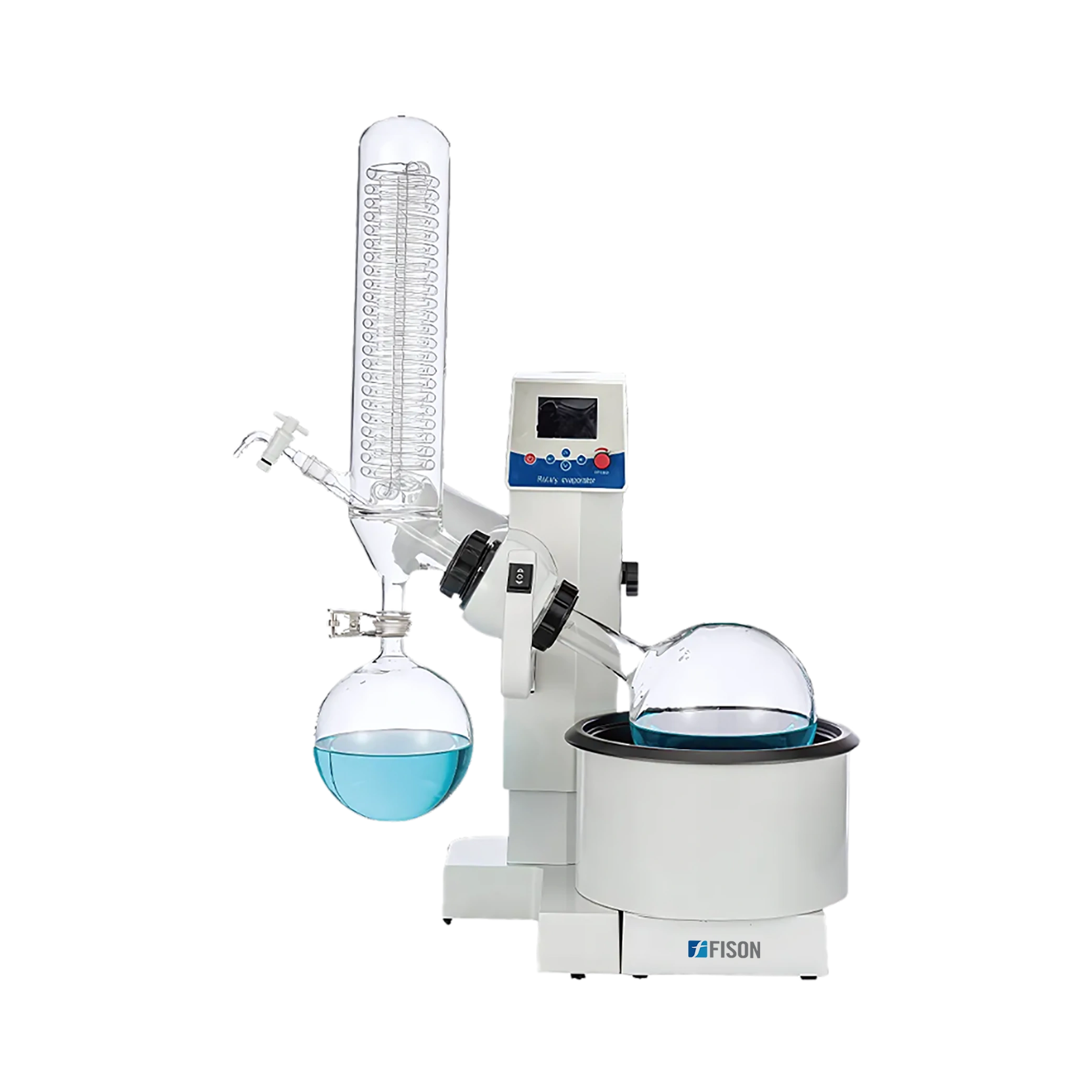

Benchtop Rotary Evaporator FM-BRE-A107 is tailored for controlled evaporation processes, offering a 3L evaporating flask, 2L receiving bottle, 200 rpm rotational speed, and a vacuum capacity of 0.098MPa. Its 7.9L heating bath and 120mm electric lift provide consistent thermal performance and ease of use. Ideal for demanding lab environments, it features a LCD display for seamless monitoring of operational parameters.
| Rotation speed | 0 to 200 rpm |
| Evaporating Flask | 3L φ195mm |
| Receiving bottle | 2L φ166mm |
| Temperature range | RT to 99°C (Water bath) / RT to180°C (Oil bath) |
| Temp. control accuracy | ±1°C |
| Lifting distance | 120mm |
| Lifting mode | Electric |
| Condensing area | 0.26m² |
| Bath size & volume | φ255×155H mm, 7.9L |
| Vacuum degree | 0.098MPa |
| Control panel | LCD display of temperature and speed |
| Overall power | 1260W |
| Rotating motor power | 40W |
| Lifting motor power | 20W |
| Heating power | 1200W |
| Dimensions (L×W×H) | 690×490×(810 to 930) mm |
| Weight | 21.5kg |
LCD panel with real-time metrics
Clean, modern benchtop profile
Fast-lifting motorized design
Oil and water bath compatible
PTFE seal for secure vacuum
Benchtop Rotary Evaporator FM-BRE-A107 Used in pharmaceutical, chemical, and academic laboratories for precise evaporation, distillation, crystallization, and solvent recovery operations.
