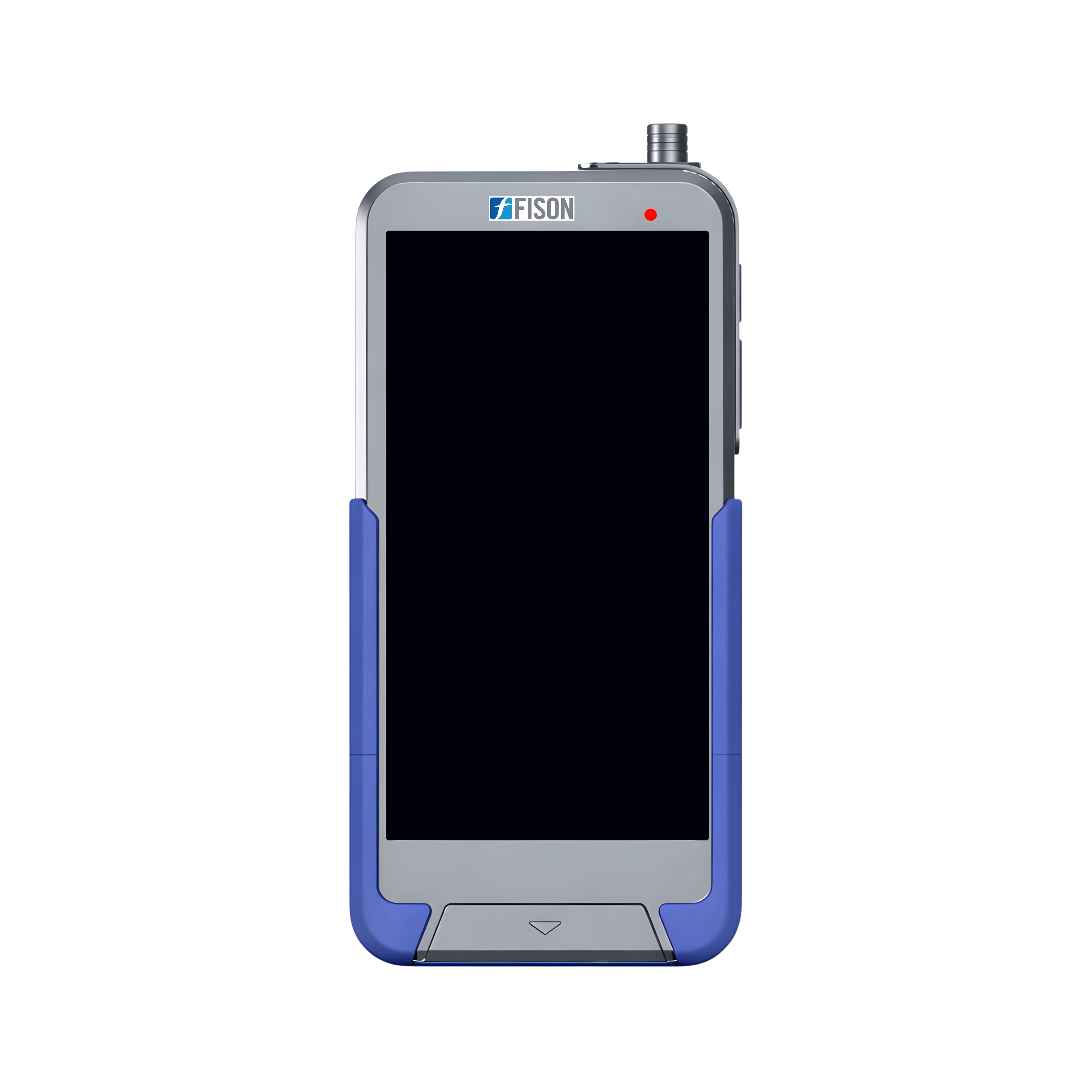

Fison Handheld Raman Spectrometer FM-HRS-A100 uses a 1064 nm excitation laser with output below 500 mW, which allows scanning of fluorescent materials. As a handheld Raman spectroscopy device, it covers a spectral range of 200 to 2500 cm-1, and the built-in library holds more than 13,000 species for spectral matching. A rechargeable lithium-ion battery runs 4 to 6 hours per charge. The spectrometer identifies substances by matching measured Raman spectra against the stored library.
| Excitation wavelength range | 1064nm (allows scanning of fluorescent materials) |
| Spectral range | 200 to 2500cm-1 |
| Laser power | <500mW |
| Screen | 5-inch capacitive touchscreen |
| Battery | 6700mA rechargeable lithium-ion batteries, 4 to 6 hours |
| Built-in libraries | >13,000 species |
| Data transfer | Wi-Fi, Bluetooth, USB, 4G |
| Dimension (L×B×H) | 175×84×33mm |
| Weight | 740g (battery included) |
Handheld Raman Spectrometer FM-HRS-A100 is used in pharmaceutical analysis, raw material verification, hazardous substance identification, customs inspection, forensic testing, drug detection, gemstone assessment, polymer analysis, and on-site chemical identification.
