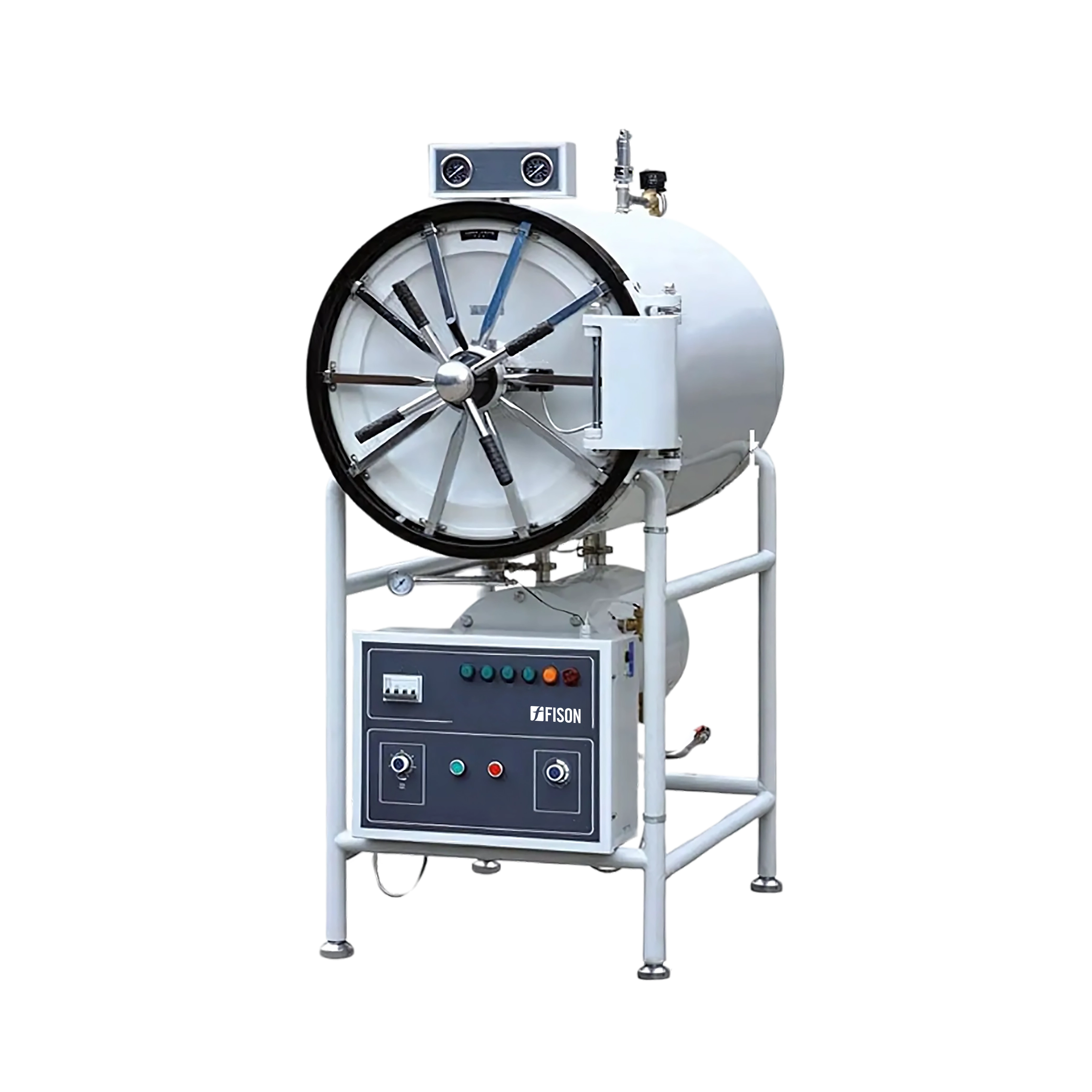

Fison Horizontal Autoclave FM-HA-A104 is equipped with a 500 L corrosion-resistant stainless steel chamber, adjustable sterilization temperatures from 105°C to 134°C, and a 0.22 MPa working pressure for high-capacity steam sterilization. Featuring a steam jacket, multi-port valve, automatic door release, pressure gauge, moisture trap, and integrated safety mechanisms, it supports efficient sterilization cycles with safe and consistent operation.
| Chamber capacity | 500 L |
| Inner tank dimension | 700×1300 mm |
| Design | Cylindrical orientation |
| Working pressure | 0.22 MPa |
| Working temperature | 134℃ |
| Adjustment of temperature | 105℃ to 134℃ |
| Chamber construction | Corrosion resistant 304 grade stainless steel |
| Chamber tray | 1 perforated stainless steel tray |
| Timer range | 0 to 60 min |
| Control Precision: Temperature | ≤ ±1℃ |
| Maximum power consumption | 18 kW |
| Power supply | 380 V/50 Hz |
| Dimension | 1800×900×1820 mm |
| Packaging dimension | 1850×1050×2100 mm |
| Net weight | 470 kg |
| Gross weight | 580 kg |
Horizontal Autoclave FM-HA-A104 is used for sterilizing surgical instruments, glassware, laboratory equipment, dressings, linen, and rubber or plastic items. It is suitable for laboratories, hospitals, nursing homes, pharmaceutical facilities, food and beverage industries, and research institutions.
