Horizontal Autoclave FM-HA-A201 Catalog

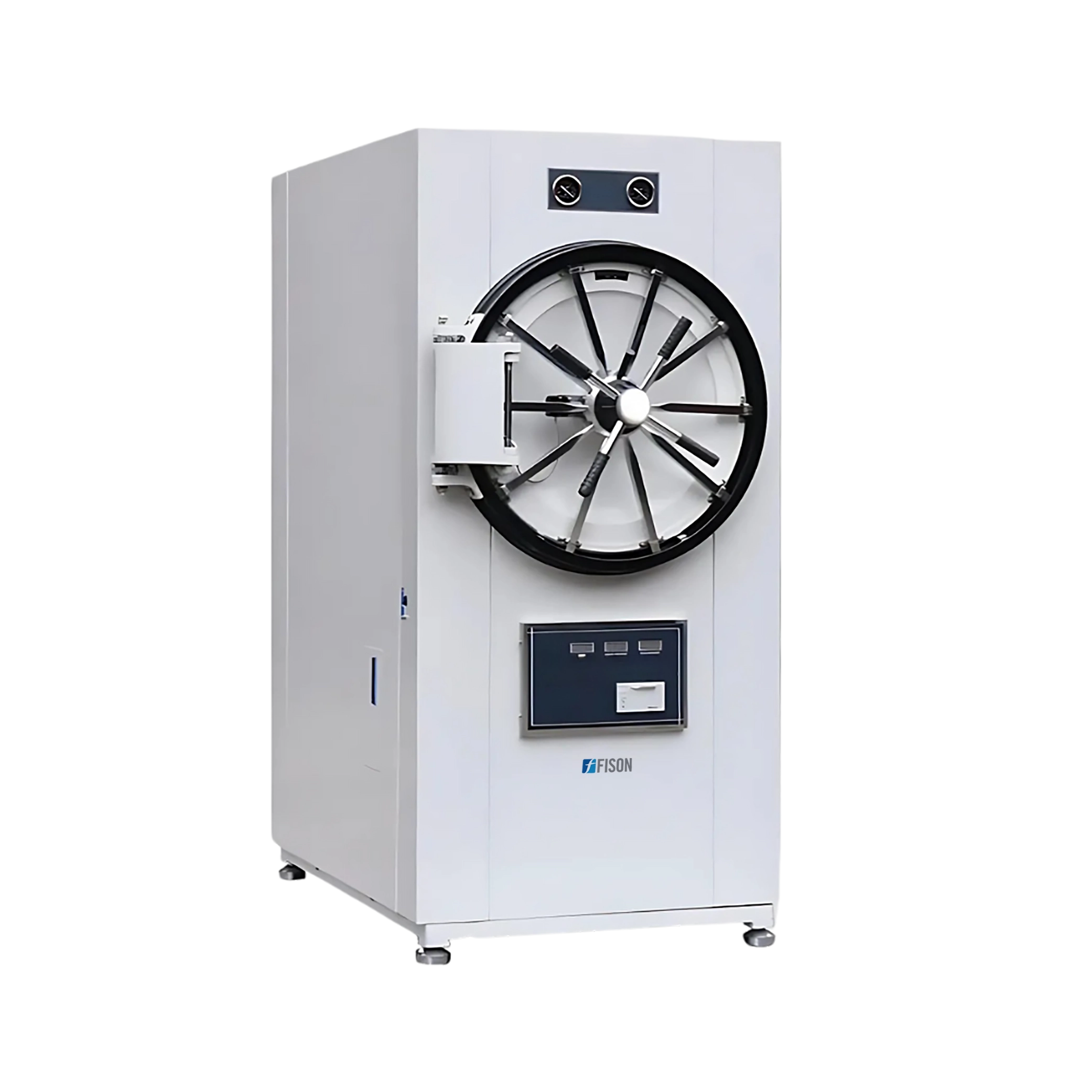

Horizontal Autoclave FM-HA-A201

Horizontal Autoclave FM-HA-A201

www.fison.com | info@fison.com

Overview

Fison Horizontal Autoclave FM-HA-A201 features a 200 L rectangular stainless steel chamber with an adjustable temperature range of 40°C to 134°C and 0.22 MPa working pressure for controlled steam sterilization. Equipped with microprocessor control, LED display, automatic door release, radial locking system, multi-port valve, and integrated safety features, it supports efficient sterilization cycles with consistent performance.

Specifications:

Chamber  capacity 200 L
Inner tank dimension 515×1000 mm
Design Single door rectangular autoclave
Working pressure 0.22 MPa
Working  temperature 134℃
Adjustment of temperature 40 to 134℃
Chamber construction 304 grade stainless steel
Chamber tray 1 perforated stainless steel tray
Sterilization period 0 to 99 min
Time of drying 0 to 99 min
Control Precision: Temperature ≤ ±2℃
Maximum power consumption 9 kW
Power supply 380V/50Hz
Dimension 1400×750×1700 mm
Packaging dimension 1560×910×1880 mm
Net weight 350 kg
Gross weight 436 kg

Features:

  • Computer-controlled sterilization process enables simple and convenient operation
  • Supports effective drying of medical dressings after sterilization
  • Enhances operational safety with over-temperature and over-pressure protection
  • Door safety mechanism prevents opening until the chamber pressure drops to 0.027 MPa and prevents operation if the door is not securely closed
  • Safety valve automatically releases steam into the water tank when the chamber pressure exceeds 0.24 MPa
  • Automatically cuts off power and activates an alarm when the water level is insufficient
  • Stainless steel chamber provides durability and corrosion resistance
  • Integrated printer enables convenient printing of sterilization records

Applications:

Horizontal Autoclave FM-HA-A201 is used for sterilizing laboratory instruments, medical equipment, and hospital waste using saturated steam. It is suitable for research centers, universities, pharmaceutical and biotechnology facilities, medical research laboratories, and hospitals.
