Biological Microscope FM-BM-A104

Biological Microscope FM-BM-A104

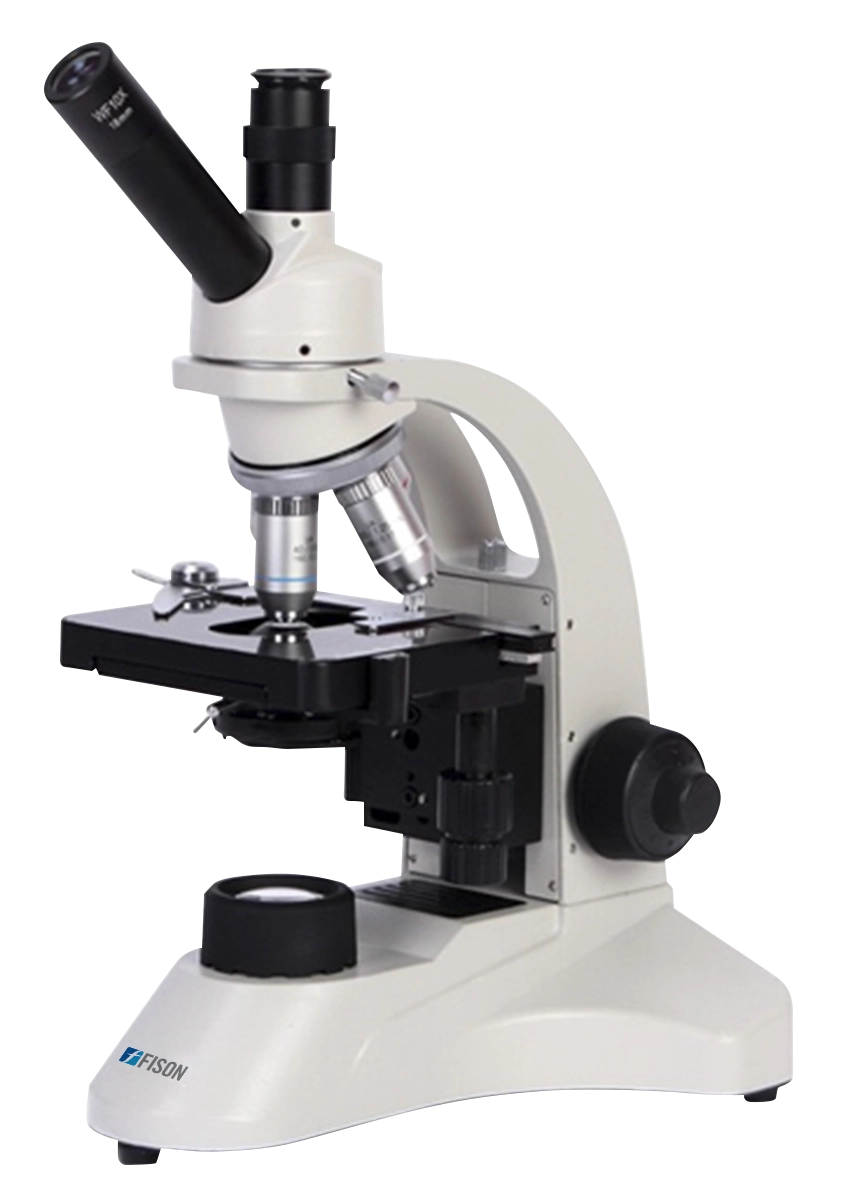

Biological Microscope FM-BM-A104 comes with 45° inclined monocular viewing head, 40 to 1600X zoom magnification range, with camera attachment for microscopic observation. With ergonomic design, high quality 195 achromatic objectives are used to reduce strain on eyes during observation.

Specifications

Optical System Finite Optical System
Viewing Head Monocular viewing head, 45° inclined, 360° rotation
Magnification 40X to 1600X
Objectives 195 Achromatic objectives 4x, 10x, 40x (Spring)
Eyepiece Wide field WF10X/18mm and Wide field WF16X/15mm
Nosepiece Inward, three revolving nosepiece
Focusing system Coaxial coarse & fine focusing knob, coarse focusing range 20 mm, fine focusing graduation 0.002 mm
Stage Double layer mechanical stage size: 115 × 125 mm, range: 76 × 52 mm
Condenser Abbe condenser N.A.1.25, with iris diaphragm, and height adjustment knob
Illumination 3W LED lamp, brightness adjustable
Power External power supply (adapter), AC 100V-240V, DC 5V/2A
Voltage 220 V, 50 Hz
Weight 10 kg

Features

  1. Finite optical system
  2. High zoom magnification range
  3. Monocular (45° inclined) viewing head
  4. Built-in handle for easy access
  5. CCD camera attachment for digital photography

Applications

  • Used in clinical research, education, teaching field, life science research institutes, laboratories, centers, and colleges.

Accessories Optional

  • Accessories no. Name
    1 Upper light source
    2 Phone Adapter
    3 Digital Camera 3 MP for Trinocular
    4 Digital Camera 5 MP for Trinocular
Biological Microscope FM-BM-A104

Biological Microscope FM-BM-A104

Alternative Models Of Biological Microscopes

Fison Biological Microscopes are specifically constructed for observing biological specimens. Our routine range of microscopes have classroom-friendly utility as well as special design considerations for reduced strain on user’s eyes. They feature both finite and infinite ocular systems with a wide field of view. Equipped with dynamic lens system having different types of objectives (4X to 100X) and condenser types. We provide you with additional blue filter with our C series, phase contrast condenser with our D series, on demand digital cameras setups and much more.
