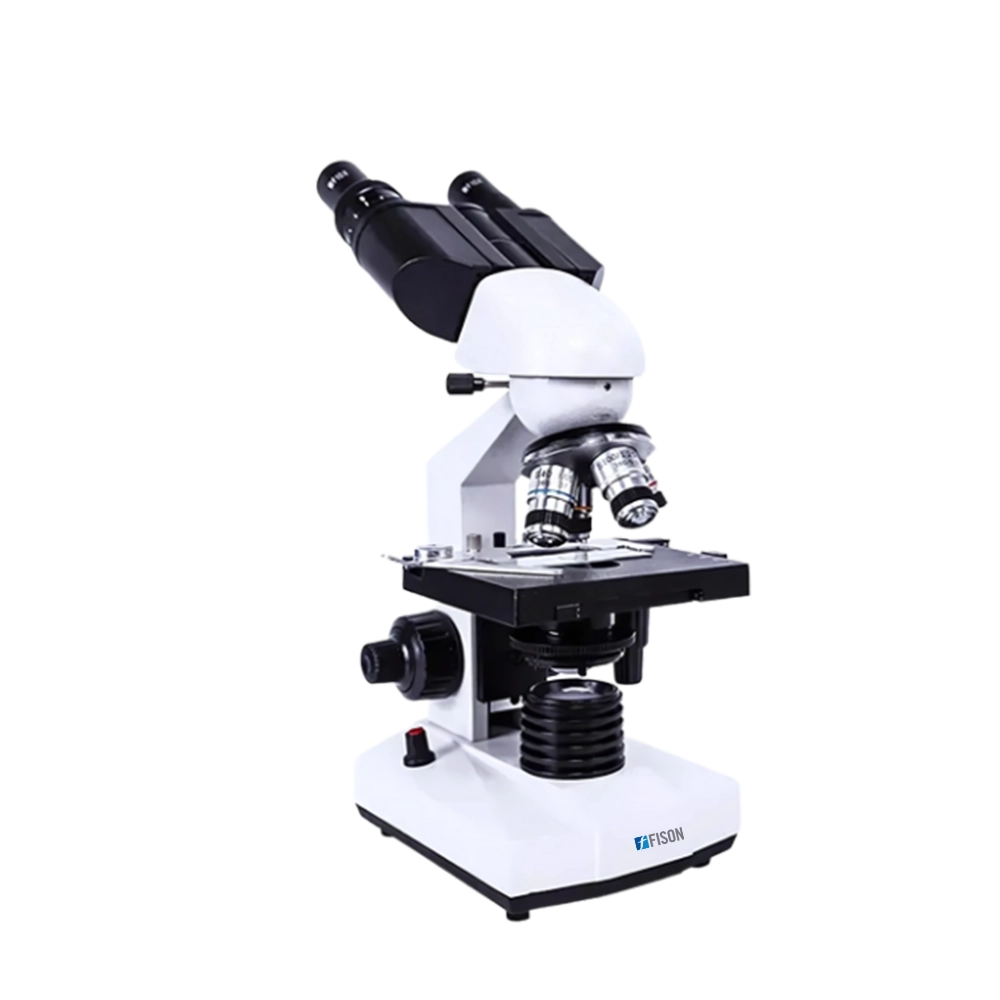

Biological Microscope FM-BM-C105

Biological Microscope FM-BM-C105 is a high-performance microscope that contains high-point oculars with 10× magnification for comfortable, extended viewing. It is equipped with a Koehler light source, providing uniform illumination for clear and accurate observations. This features a precise mechanical stage for smooth and accurate sample movement. Our Microscope has flexible rubber knobs for a comfortable, reducing fatigue during extended use.

$2,275.00

Download Catalog

Biological Microscope FM-BM-C105 - Specifications

High Point Ocular WF10× / 20mm (23.2)
Infinity Plan Objectives 4× / 0.10 (Working Distance = 12.10mm), 10× / 0.25 (Working Distance = 4.64mm), 20× / 0.40(S) (Working Distance = 2.41mm), 40× / 0.66(S) (Working Distance = 0.65mm), 100× / 1.25(S, Oil) (Working Distance = 0.12mm)
Binocular Head Inclination Angle 30°, Rotation Angle 360°, Interpupillary Distance: 48mm to 75mm
Nosepiece Quintuple
Mechanical Stage Size: 185×145mm, Traveling Range: 78mm×55mm, Coaxial Coarse, Fine Focus, Two-Slide Holders
Abbe Condenser N.A. 1.25, iris diaphragm
Microscope Filters Blue
Power Supply 100V to 240V, 12V/20W Halogen Light, 6V/30W Halogen Light, 3W-LED Light System
Dimensions (L×W×H) 542 × 265 × 355mm
Weight 11kgs

Biological Microscope FM-BM-C105 - Features

  1. Clearfield adjustable condenser
  2. Independent phase contrast device
  3. Multi-purpose camera attachment
  4. Advanced illumination system
  5. Customizable objective turret

Biological Microscope FM-BM-C105 - Applications

  • Biological Microscope FM-BM-C105 is used for studying cells, bacteria, and tissues in labs, medical diagnostics, education, and industrial testing.

Biological Microscope FM-BM-C105 - Accessories Optional

  • 0.5X/0.35X/0.75X C-mount
    Polarizing unit
    Quintuple turret phase contrast unit including 10X/20X/40X/100X(oil) phase contrast objective
Biological Microscope FM-BM-C105

Biological Microscope FM-BM-C105

Alternative Models Of Biological Microscopes

Fison Biological Microscopes are specifically constructed for observing biological specimens. Our routine range of microscopes have classroom-friendly utility as well as special design considerations for reduced strain on user’s eyes. They feature both finite and infinite ocular systems with a wide field of view. Equipped with dynamic lens system having different types of objectives (4X to 100X) and condenser types. We provide you with additional blue filter with our C series, phase contrast condenser with our D series, on demand digital cameras setups and much more.
