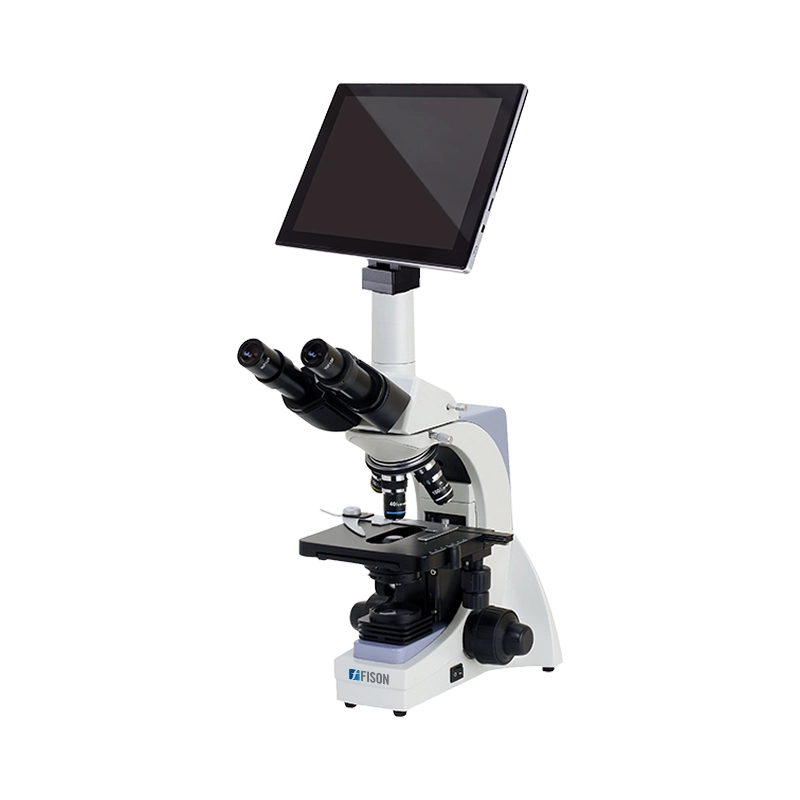

Digital Microscope FM-DM-A101 is equipped with 8 inch TFT touch LCD screen and easy to use software to view and study the specimen without straining the eyes. Illumination is provided by S-LED system with adjustable brightness. Sharp and clear images of the specimen are obtained using coarse and fine focusing adjustment.
$2,825.00
| Optical system | Infinite optical system | ||
| Viewing head | Seidentopf Binocular head, 30° inclined, Interpupillary 48 to 75 mm | ||
| LCD Touch pad Screen | 8 Inch TFT Touching screen, 5.0 Mega Pixel CMOS Chip | ||
| Digital system software |
|
||
| Eyepiece | Wide field eyepiece WF 10X/ 18 mm | ||
| Objective | Infinitive Plan Achromatic Objectives 4×, 10×, 40×, 100× | ||
| Nosepiece | Quadruple nosepiece | ||
| Stage | Double layer mechanical stage: 140 × 140 mm, Travel stage: 75 × 75 mm | ||
| Condenser | Sliding-in centerable condenser N.A. 1.25 | ||
| Focusing system | Coaxial Coarse and Fine focusing Adjustment, Fine Division 0.002 mm, Coarse Stroke 37.7 mm per Rotation, Fine Stroke 0.2 mm per Rotation, Moving Range 20 mm | ||
| Illumination | S-LED Illumination, brightness adjustable | ||
| Dimension without LCD Pad | 360 × 230 × 196 mm | ||
| Dimension with LCD Pad | 480 × 230 × 196 mm | ||
| Weight | 11 kg | ||
| Power supply | 220 V, 50 Hz |
| Accessories No. | Name |
| 1 | Eyepiece WF 10X with pointer |
| 2 | Eyepiece WF 10X with micrometer |
| 3 | Infinite Plan Achromatic Objective 20X |
| 4 | Infinite Plan Achromatic Objective 60X |
| 5 | Dark Field Condenser NA 0.7 to 0.9 (Dry) |
| 6 | Dark Field Condenser NA 1.25 to 1.36 (Oil) |
| 7 | Sliding Phase Contrast Kit |
| 8 | Simple Polarization Set: Polarizer and Analyzer |
| 9 | LED Epi-Fluorescent attachment FL-LED |
| 10 | Epi-Fluorescent attachment X Y-2 |
| 11 | 1X C-Mount |
| 12 | 0.5X C-Mount |
| Hardware | CPU | RK3288 Quad-core 1.8 Hz |
| Display | High resolution (2048 × 1536) color LCD with touch screen | |
| Storage | RAM 2 GB DDR3, ROM 8 GB, 32 GB extension storage | |
| Camera | 5 MP color cameras | |
| Network | W i-Fi, Bluetooth | |
| Interface | USB 2.0 (OTG) ×2, Support USB keyboard mouse | |
| TF card | ||
| DC 12 V power input | ||
| Audio | ||
| Mini HDMI output | ||
| Software | Operating system | Android 5.1 |
| Software | Built-in camera software, support take photos, videos and measurement | |
| Sensor size | 1/ 2.5 inch (4:3) |
| Effective imaging size | 5.70 (H) × 4.28 (Y) |
| 7.13 mm (diagonal) | |
| Effective pixel | 2592 (H) × 1944 (V) |
| Pixel size | 2.2 um × 2.2 um |
| Dynamic range | 66.5 dB |
| SNR (maximum) | 40.5 dB |
| A/D conversion resolution | 12-bit, on-chip |
| Sensitivity | 0.53 V/ Lux-sec (550 nm) |
| Frame rate | 2048 × 1536 @15 fps, 1024 × 768@30 fps |
| Exposure range and manner | Electronic rolling shutter (ERS) , automatic |
| White balance | Manual/ Automatic |
Fison Digital Microscopes are engineered with built in camera and IPS/LCD touch screens for live specimen viewing. They are incorporated with zoom controls, auto-focus, intelligent illumination systems for enhanced clarity. Sophisticated software integration systems produce undistorted, high-resolution images. They feature advanced optical systems with binocular/trinocular heads for multi-angle visualization of specimens. Our digital scopes support Wi-Fi, Bluetooth, USB, HDMI and more, for real time documentation and analysis.
