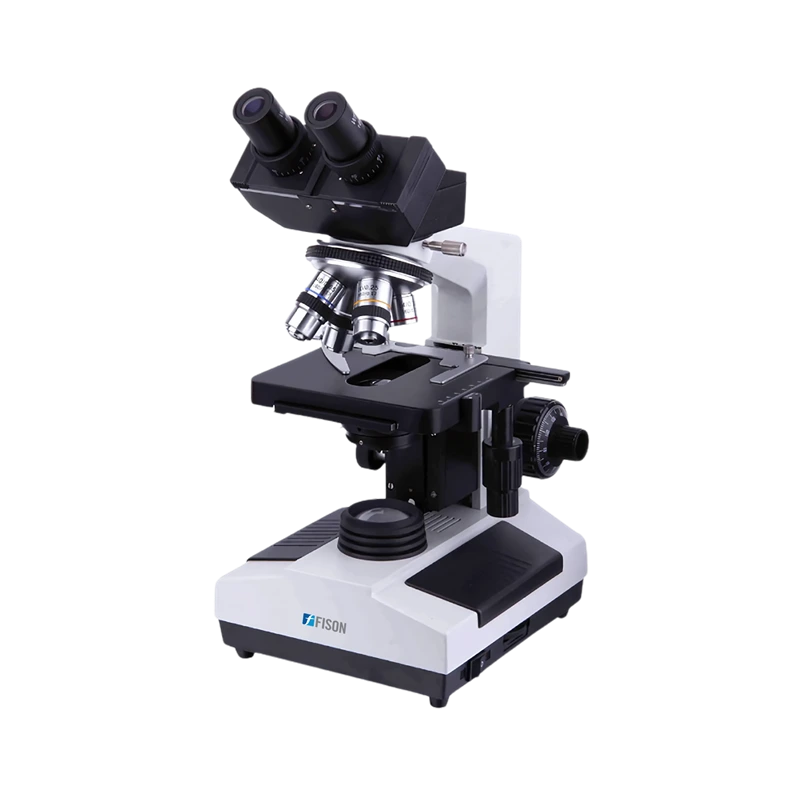

Biological Microscope FM-BM-E100
Biological Microscope FM-BM-E100 has a 45° inclined binocular head with a sliding rod for flexible eyepiece or camera viewing. It includes wide field WF10X/18mm eyepieces with rubber eyecups for comfortable viewing. Our microscope features LED illumination, providing bright, adjustable lighting suitable for a variety of specimen observations.
Specifications
| View Head | Binocular head, 45° inclined tube. Two-position sliding rod (100% to eyepiece / 100% to camera). Interpupillary adjustment: 55 to 75 mm, with diopter adjustment. |
| Eyepieces | Wide field WF10X/18mm with rubber eyecups. Pointer in one eyepiece |
| Magnifications | 40X, 100X, 400X, 1000X |
| Objectives | DIN Achromatic, parfocalled & parcentered, color-coded: 4X/0.10, 10X/0.25, 40X/0.65 (S), 100X/1.25 (S, Oil immersion) |
| Nosepiece | Reverse-facing quadruple revolving nosepiece |
| Stage | 3D mechanical stage, low profile with ball-bearing mount Movement: 70 mm (X) × 50 mm (Y), 0.1 mm graduation. Stage dimensions: 140 × 135 mm |
| Focusing System | Coaxial coarse and fine focus with rack & pinion; limit stopper Coarse focus: 20 mm stage movement Fine focus resolution: 0.002 mm |
| Illumination | Köhler illumination, 1W LED with on/off switch & intensity control Power supply: AC 100–220V, 50/60Hz |
| Condenser | Abbe condenser 1.25 N.A., rack-and-pinion focusing, iris diaphragm, blue filter |
| Camera | 5.0 MP digital camera Output formats: BMP, JPG, MIG Interface: USB 2.0, 7.5 MB/sec data transfer |
| Power Supply | AC 100–240V, 50/60Hz |
| Dimensions (L×W×H) | 350 × 290 × 450 mm |
| Weight | 6 kg |
Features
- Color corrected infinity optical system
- Anti-vibration rubber feet
- Dust-proof and anti-fungal treated optics
- Durable metal body
Applications
- Biological Microscope FM-BM-E100 is used to observe and study cells, tissues, microorganisms, and is widely used in educational institutions, hospitals and clinical labs, research laboratories, pharmaceutical companies, veterinary clinics, and environmental labs.
Accessories
Power cord -1 pc
Dust cover – 1 pc
Immersion oil – 1 bottle
- 5MP camera- 1 pc
Accessories Optional
Laptop (8 GB RAM) -1 pc
Frequently Asked Question
1: What type of head does the FM-BM-E100 have?
FM-BM-E100 has a 45° inclined binocular head with a sliding rod for eyepiece or camera viewing.
2: What magnifications are available on the FM-BM-E100?
FM-BM-E100 offers 40X, 100X, 400X, and 1000X magnifications with DIN Achromatic objectives.
3: Does the FM-BM-E100 include a digital camera?
Yes, the FM-BM-E100 includes a 5.0 MP digital camera with a USB 2.0 interface.
4: What stage and focusing system does the FM-BM-E100 use?
FM-BM-E100 features a 3D mechanical stage and coaxial coarse/fine focusing with 0.002 mm resolution.
5: What illumination system is in the FM-BM-E100?
FM-BM-E100 uses 1W LED Köhler illumination with adjustable brightness.
6: What type of condenser is used in the FM-BM-E100?
FM-BM-E100 includes a 1.25 N.A. Abbe condenser with iris diaphragm and blue filter.
