Multi-viewing Biological Microscope FM-MBM-A102

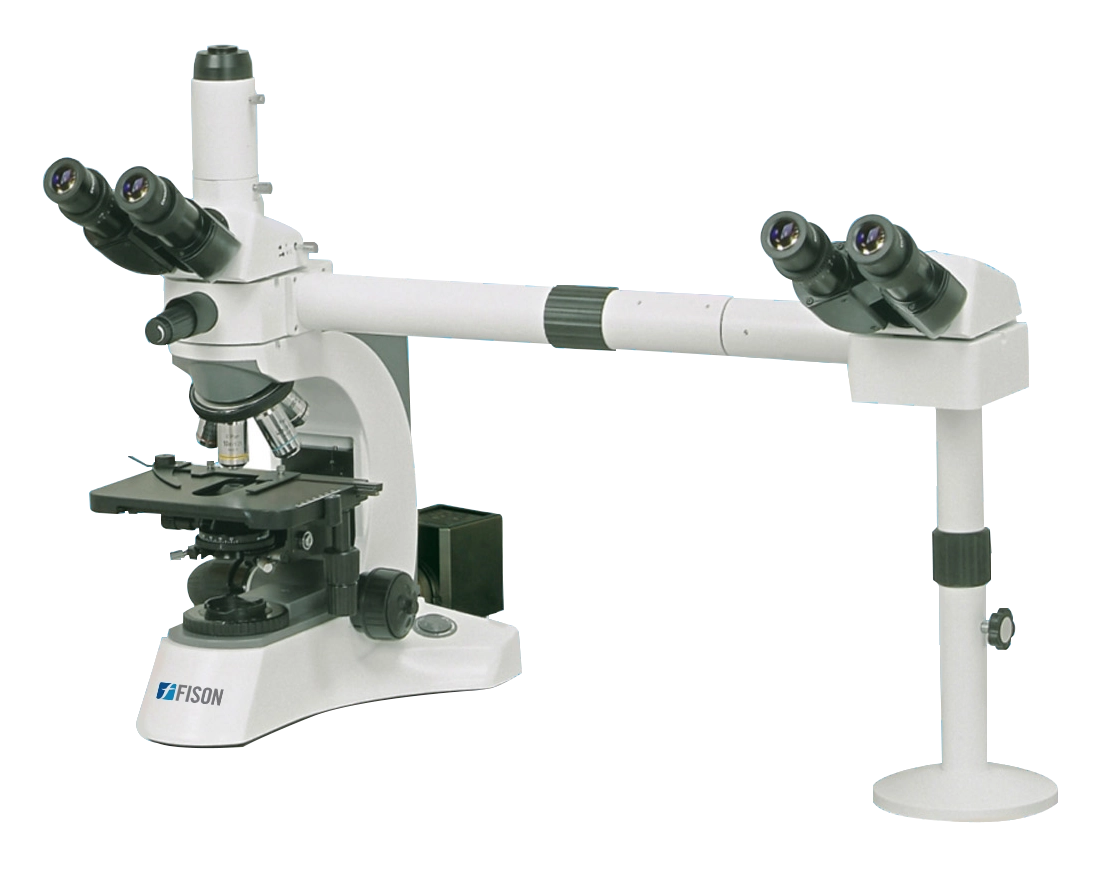

Multi-viewing Biological Microscope FM-MBM-A102 offers observation of single specimen by multiple people at a time. It has two viewing head: 1 piece trinocular head and 1 piece of binocular head inclined at 30° and 360° rotatable. With coaxial coarse and fine focus adjustment, it delivers sharp and clear image of the specimen. Equipped with built in LED green light pointer with adjustable brightness. Kohler external illumination aspherical collector, and halogen lamp 24 V/ 100 W acts as illumination source. Used in pathology, medical diagnostic, molecular biology, other scientific institute for demonstration and research purpose.
Specifications
| Optical system | Infinite optical system | ||||||
| Trinocular viewing head |
|
||||||
| Binocular viewing head |
|
||||||
| Eyepiece | Extra wide field EW10X/22, Eyepiece tube diameter 30 mm (4 pcs) | ||||||
| Nosepiece | Quintuple nosepiece, Sextuple nosepiece | ||||||
| Objective | Achromatic objective 4X, 10X, 40X and 100X | ||||||
| Condenser | Swing condenser N.A.0.9/ 0.25 | ||||||
| Focusing | Coaxial coarse and fine focus adjustment, fine division 0.001 mm | ||||||
| Stage | double layer mechanical stage 185 × 142 mm, moving range 75 × 55 mm | ||||||
| Illumination | Kohler external illumination aspherical collector, halogen lamp 24 V/ 100 W | ||||||
| Pointer | Green LED pointer, brightness adjustable | ||||||
| Net weight | 11 kg | ||||||
| Gross weight | 14 kg |
Features
- Infinite optical system
- Compensation free trinocular & binocular 30° inclined, 360° rotatable head
- Double layer mechanical stage
- Inverse quintuple and sextuple nosepiece
- Extra wide field eyepiece EWF10X/22
- Eyepiece tube diameter 30 mm
- Interpupillary distance 48 to 75 mm
- Infinite plan objective 4X, 10X, 40X, 100X
- Green LED pointer system
Applications
- Used in pathology, medical diagnostic, molecular biology, other scientific institute for demonstration and research purpose.
Accessories Optional
Accessories no. Accessories name Unit 1 Infinite Plan Achromatic Objective 20X 1 2 External Illumination, Aspherical Collector 1 3 Halogen Lamp 24V/ 101W 1 4 3W LED Illumination 1 5 5W LED Illumination 1 6 Dual Color Pointer , Brightness Adjustable 1 7 Photo Attachment 1 8 Video Adapter C mount 1X 1 9 Video Adapter C mount 0.5X 1 10 Polarization attachment 1 11 Turret Phase contrast kit 1 12 Dark field condenser (Oil) 1 13 Dark field condenser (Dry) 1
