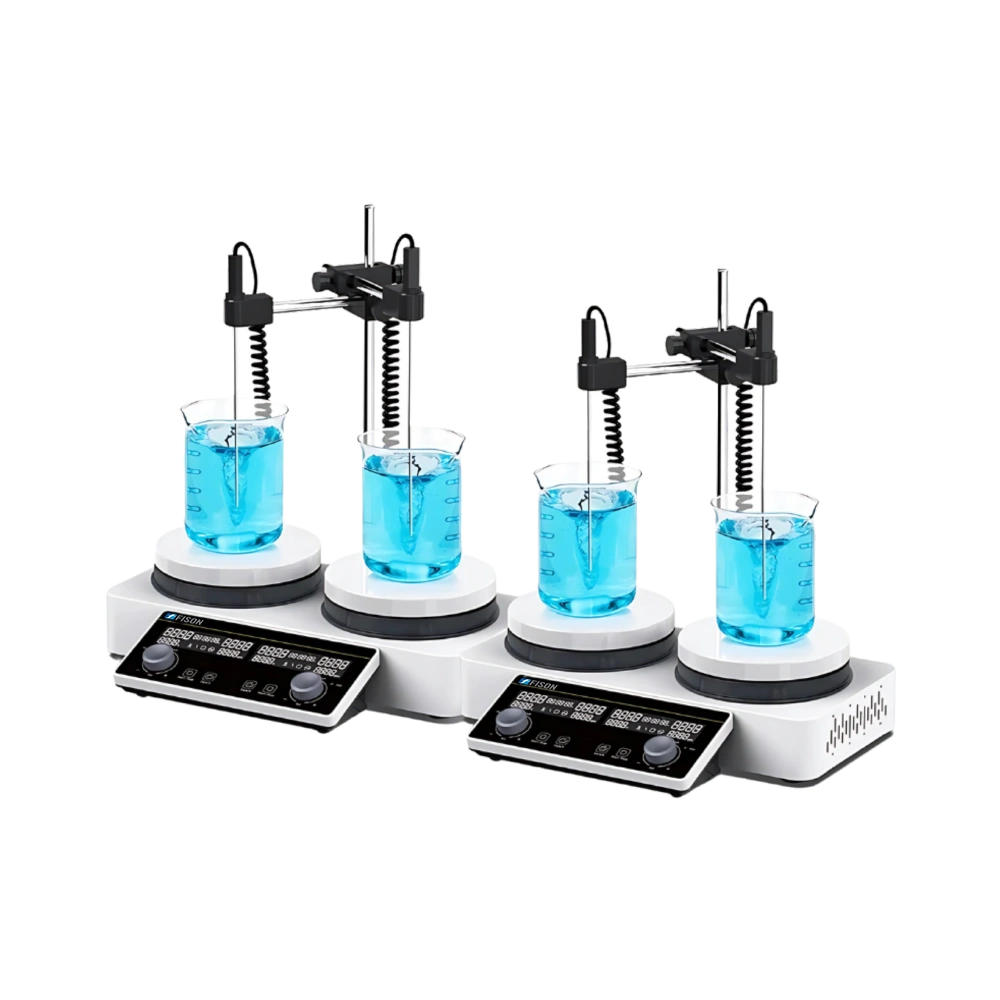

Hotplate Magnetic Stirrer FM-HMS-D102 Catalog

Overview

Hotplate Magnetic Stirrer FM-HMS-D102 provides a temperature control range from room temperature to 330°C. It supports a speed range of 100 to 1500 rpm, allowing flexible stirring for various laboratory needs. It is equipped with a PID temperature control system to ensure accurate and consistent heating. It has an LCD display screen that offers clear visibility of all operating parameters for easy monitoring and control.

Specifications:

Temperature Control Range RT to 330 °C
Speed Range 100 to 1500 rpm
Max Stirring H20 Volume 5 × 4 L
Timing Range 1 to 99h59min
Motor Type DC Brushless Motor
Power Consumption 3600 W
Power Supply AC220 : 50 Hz
Dimension φ150 mm

Features:

  • Adjustable speed and temperature
  • Multi-sample experiment support
  • Dust-proof mesh design
  • Heat dissipation holes
  • Waterproof hotplate stirrer
  • High-efficiency heating system

Applications:

Hotplate Magnetic Stirrer FM-HMS-D102 is ideal for mixing, heating, and maintaining uniform solutions in laboratory settings. It supports precise temperature and speed control, making it suitable for chemical synthesis, sample preparation, and research experiments.
