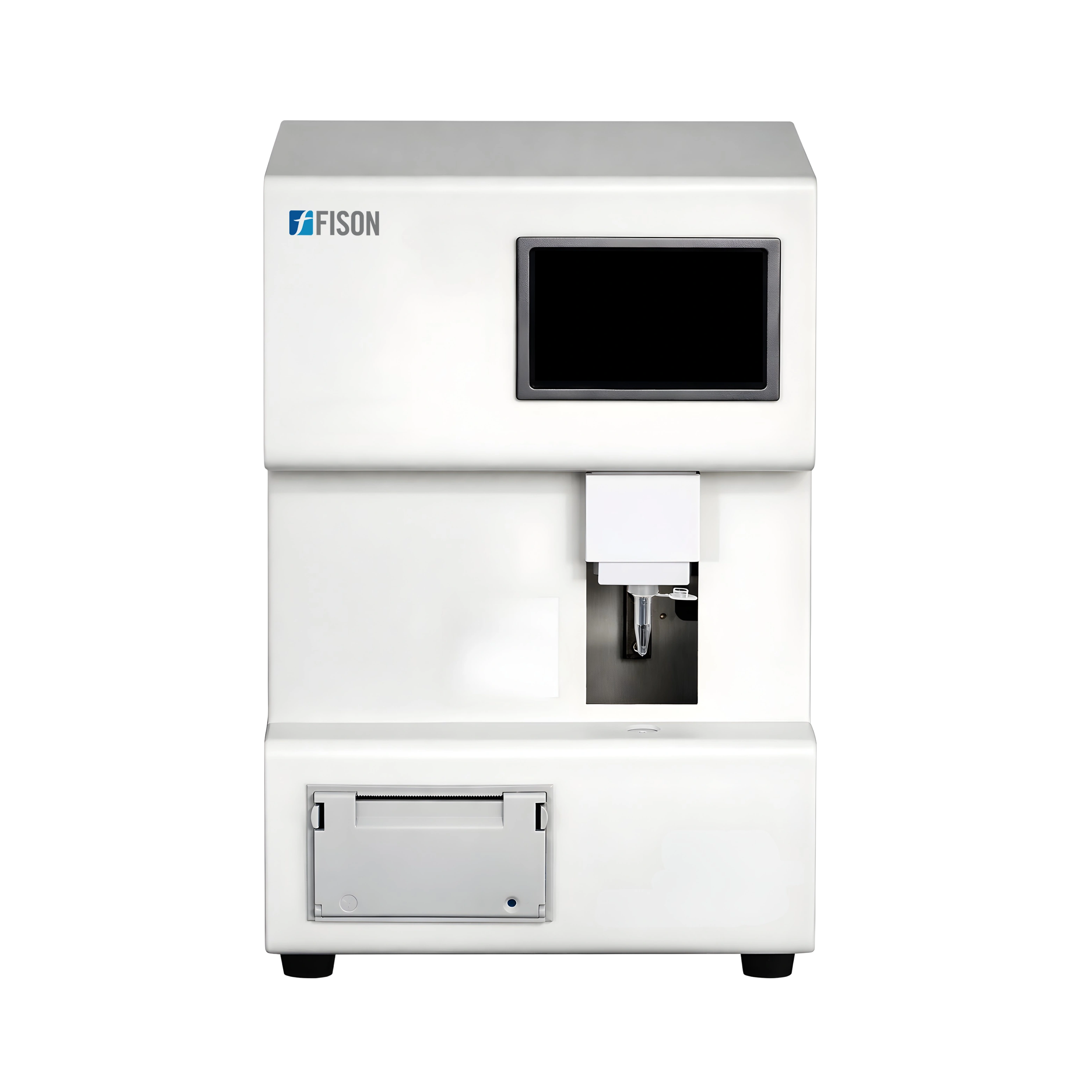

Fison Osmometer FM-OSM-A100 measures osmolality from 0 to 3000 mOsmol/kg H2O on a 50 μl sample, with a testing time under 1.5 minutes. The dual cooling system keeps pre-cooling under 3 minutes, so this freezing point osmometer is ready for the next sample sooner. Concentration and freezing point are monitored in real time during each run. The instrument determines the osmotic concentration of liquid samples.
| Measuring Range | 0 to 3000 m Osmol/kg H2O |
| Sample Quantity | 50 μl (50μl to 100 μl) |
| Testing Time | < 1.5 min |
| Pre-cooling Time | < 3 min |
| Repeatability | RSD ≤ ± 1% (300 m Osmol/kg) |
| Accuracy | ±2 m Osmol /kg (≤400 m Osmol /kg)±1% (> 400 m Osmol /kg) |
| Resolution | 1 m Osmol /kg |
| Linearity | < 1 % line |
| Ambient Temperature | 10 to 30 ℃ |
| Environment Humidity | 5 to 80% |
| Power | < 80 W |
| External Size (W × D × H) | 250 × 250 × 370 mm |
| Net Weight | 20 kg |
| Gross Weight | 22 kg |
Osmometer FM-OSM-A100 is designed for osmolality measurement and chemical analysis in pharmaceutical, chemical, and biotechnology laboratories.
