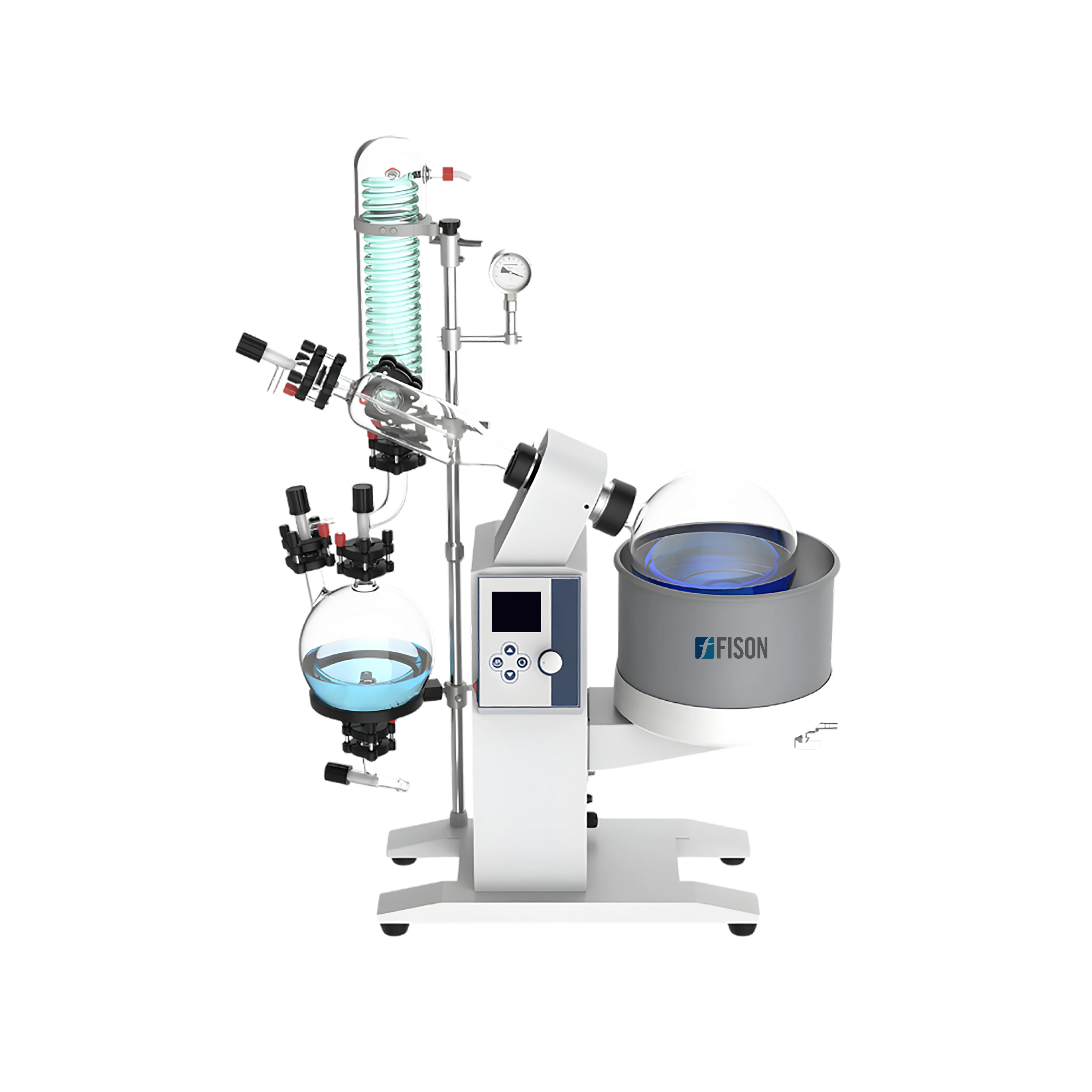

Pilot Scale Rotary Evaporator FM-PRE-118 features a 5 L evaporating flask, making it suitable for small to medium-scale solvent recovery and concentration in pilot laboratories. It is equipped with a 12 L heating bath and a maximum rotation speed of 140 rpm. It delivers efficient evaporation with precise temperature control, ensuring stability during continuous operation. It is ideal for routine use in pharmaceutical research, chemical processing, and academic laboratories, where reliable and accurate solvent recovery is essential.
| Rotation flask capacity | 5 L |
| Receiving flask capacity | 3 L |
| Temperature sensor | PT-100, 3-wire |
| Sealing parts | PTFE |
| Glass material | 3.3 borosilicate glass |
| Bath dimensions | Φ300 × 170 mm |
| Heating capacity | 2000 W |
| Rotation control | Electric |
| Vacuum leakage | ≤0.033 kPa/min |
| Heat resource | Deionized water |
| Nominal adjustment | ±1.5°C |
| Temperature range | RT to 180°C (oil bath) |
| Rotation speed | 20 to 140 rpm |
| Over-voltage category | I |
| Protection grade | IP20 |
| Overall power | 2300 W |
| Power supply | 110V,60Hz or 220 to 240V, 50Hz |
| Dimensions (with glass parts) (W × D × H) | 840 × 520 × 1440 mm |
| Weight (with glass parts) | 35 kg |
The Pilot Scale Rotary Evaporator FM-PRE-A118 is designed for solvent recovery, concentration, and purification processes, making it ideal for pharmaceutical, chemical, biotechnology, and food industry research and pilot-scale production.
