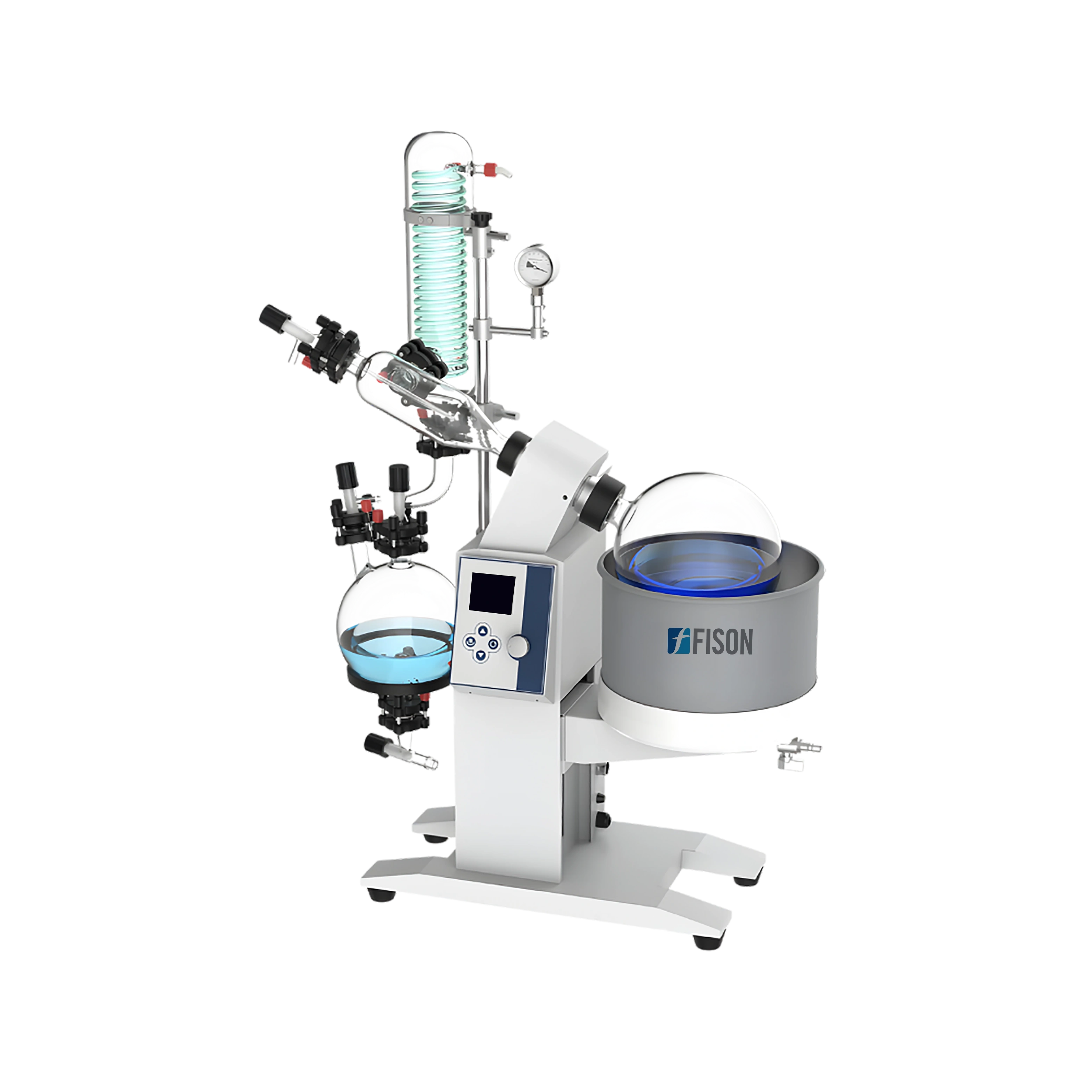

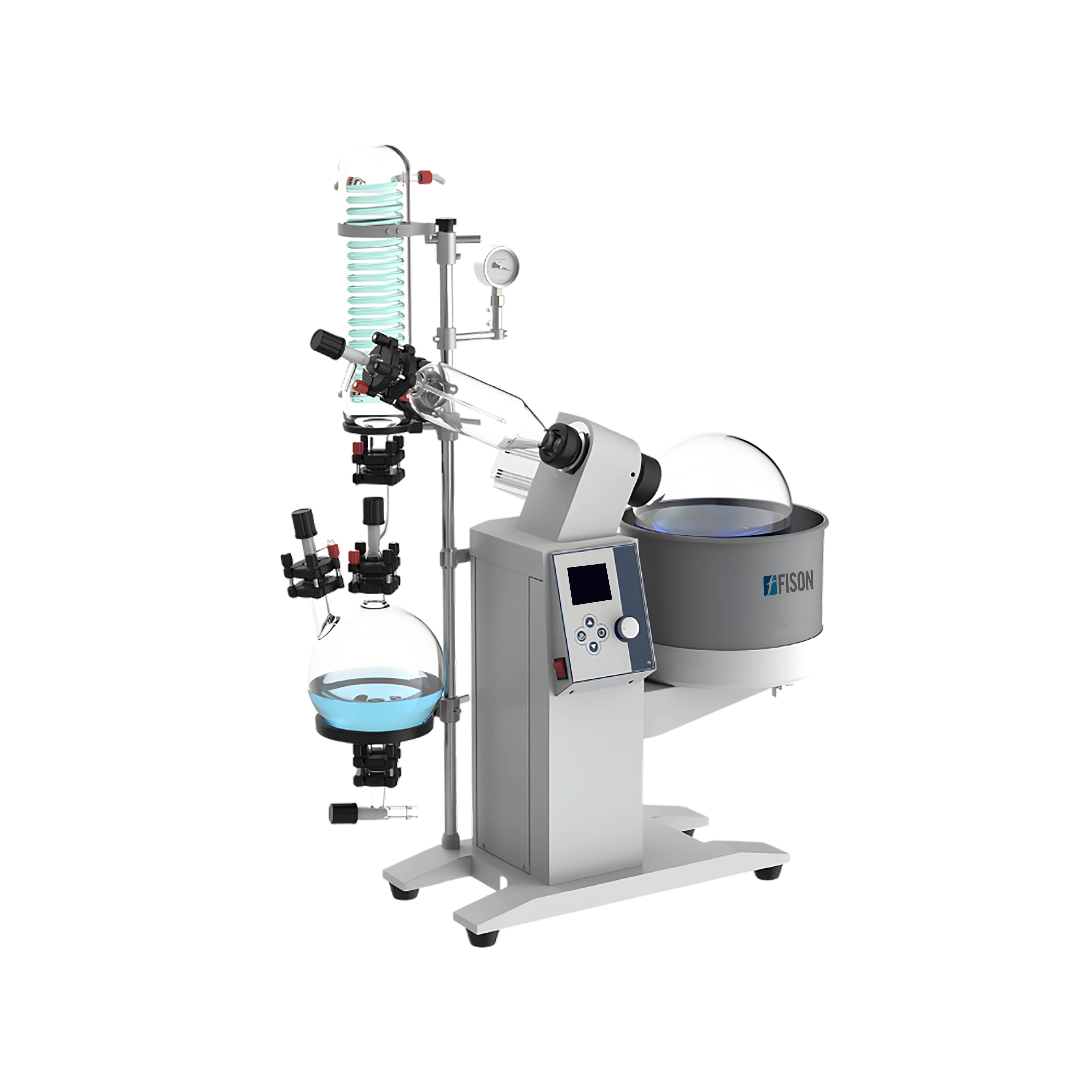

Pilot Scale Rotary Evaporator FM-PRE-118 features a 5 L evaporating flask, making it suitable for small to medium-scale solvent recovery and concentration in pilot laboratories. It is equipped with a 12 L heating bath and a maximum rotation speed of 140 rpm. It delivers efficient evaporation with precise temperature control, ensuring stability during continuous operation. It is ideal for routine use in pharmaceutical research, chemical processing, and academic laboratories, where reliable and accurate solvent recovery is essential.
$3,400.00
| Rotation flask capacity | 5 L |
| Receiving flask capacity | 3 L |
| Temperature sensor | PT-100, 3-wire |

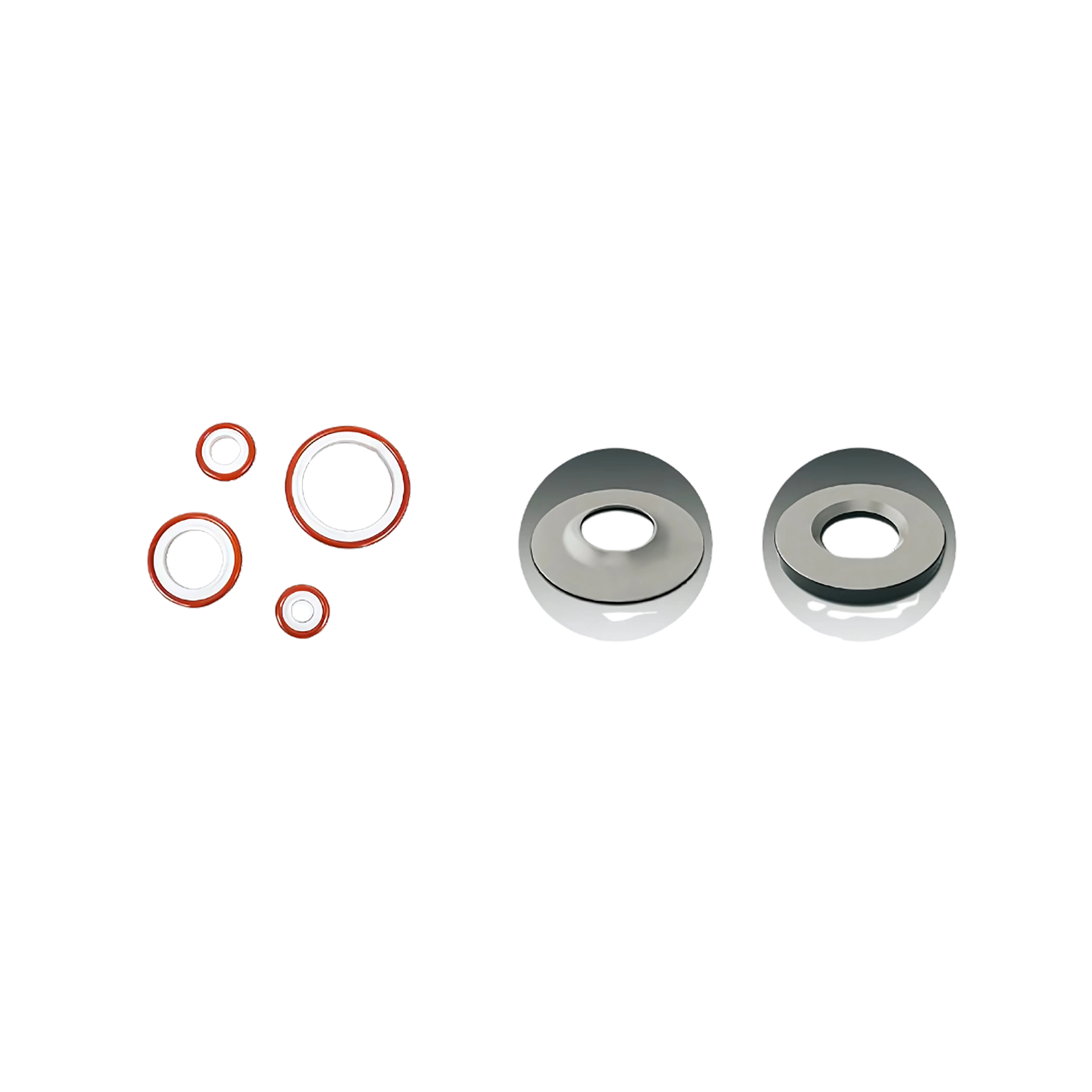

| Sealing parts | PTFE |

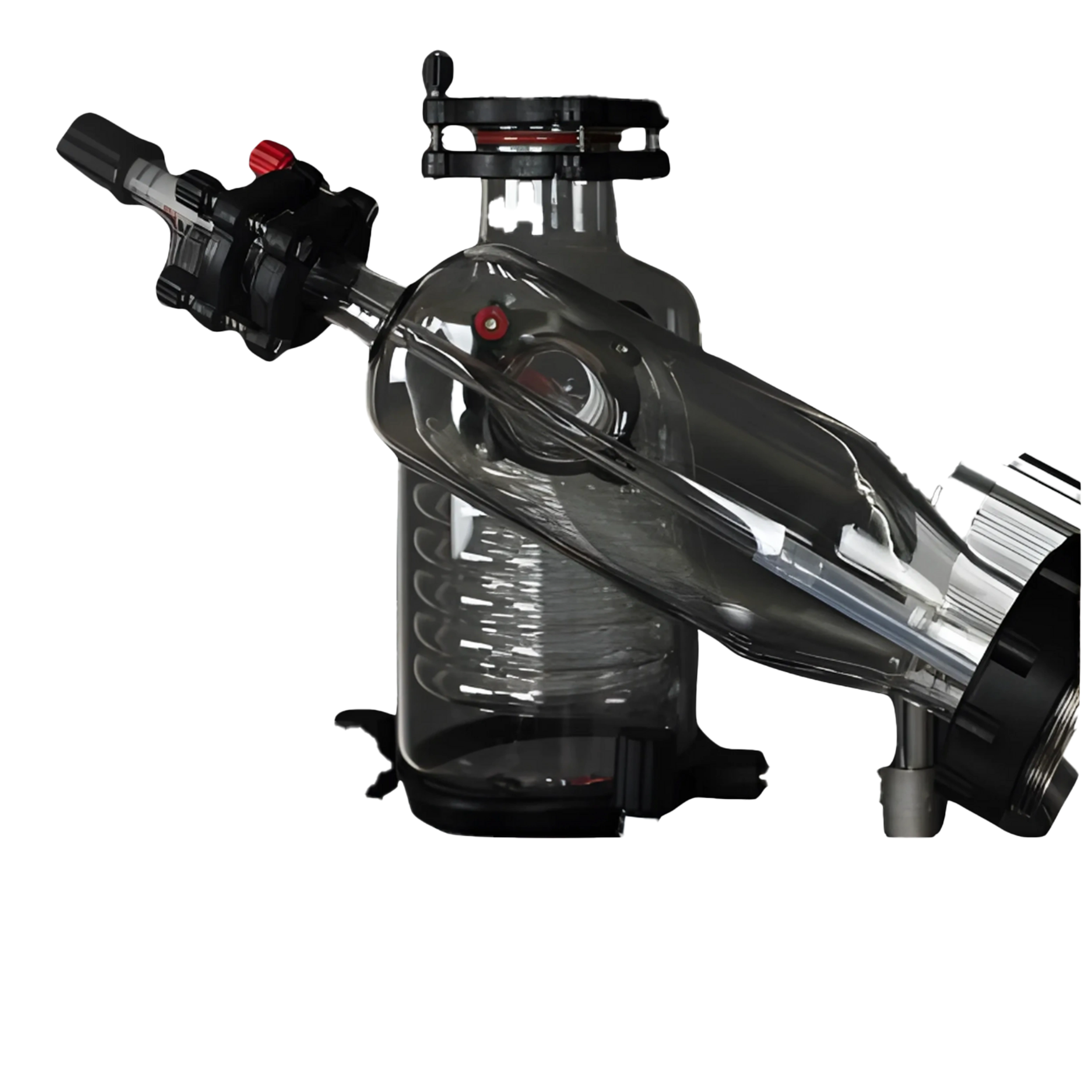

| Glass material | 3.3 borosilicate glass |
| Bath dimensions | Φ300 × 170 mm |
| Heating capacity | 2000 W |
| Rotation control | Electric |
| Vacuum leakage | ≤0.033 kPa/min |
| Heat resource | Deionized water |
| Nominal adjustment | ±1.5°C |
| Temperature range | RT to 180°C (oil bath) |
| Rotation speed | 20 to 140 rpm |
| Over-voltage category | I |
| Protection grade | IP20 |
| Overall power | 2300 W |
| Power supply | 110V,60Hz or 220 to 240V, 50Hz |
| Dimensions (with glass parts) (W × D × H) | 840 × 520 × 1440 mm |
| Weight (with glass parts) | 35 kg |

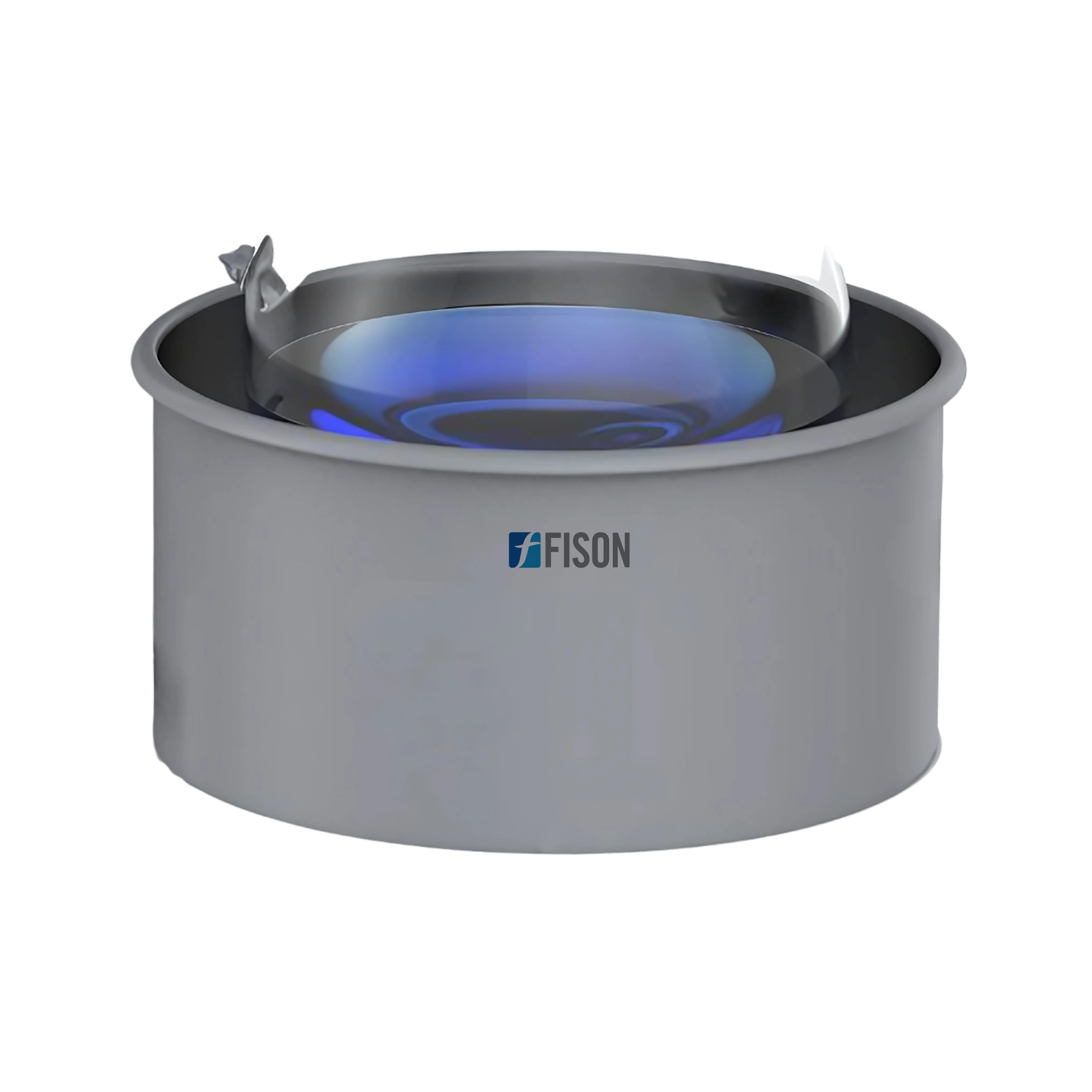

1: How does the heating bath of the Pilot Scale Rotary Evaporator FM-PRE-118 ensure accurate evaporation?

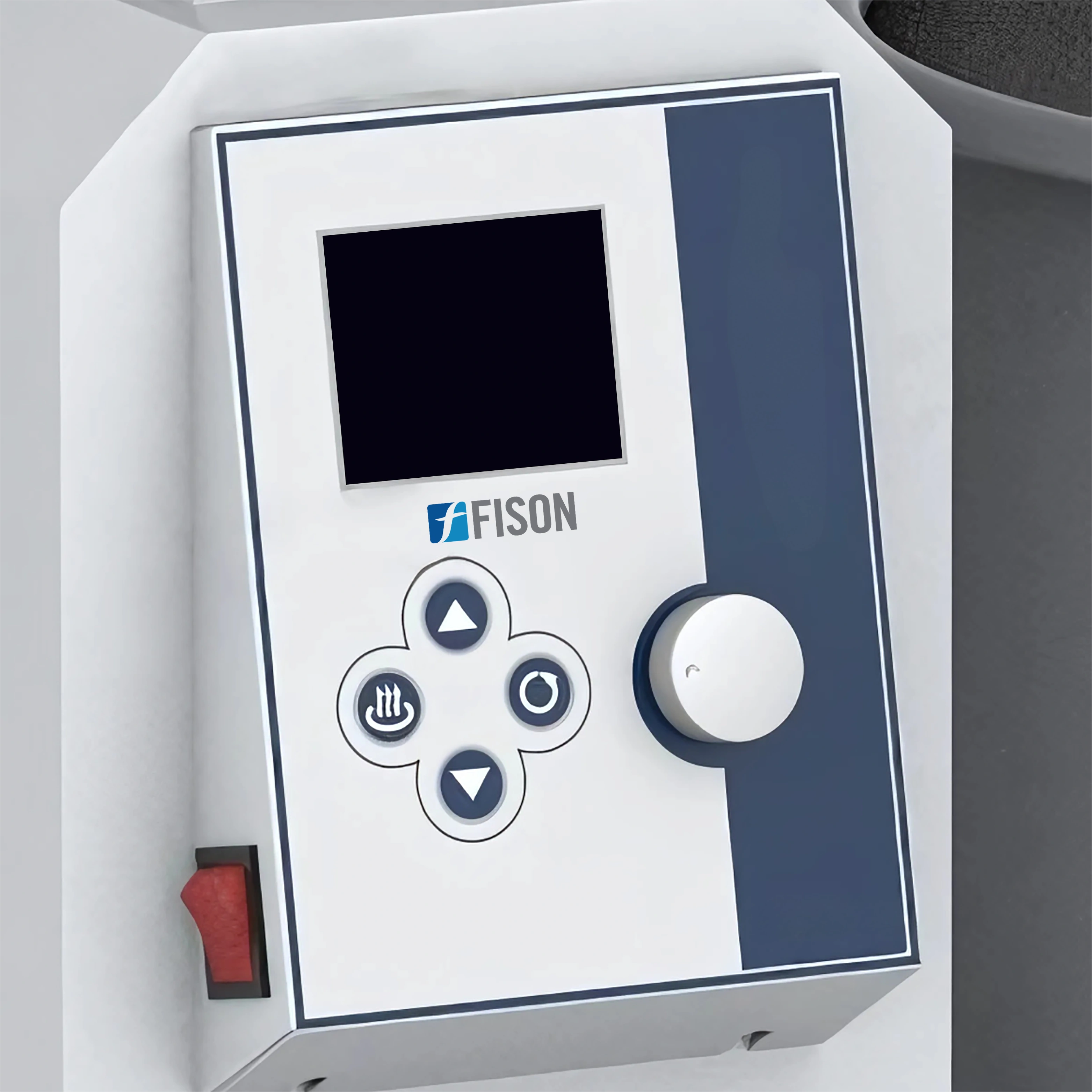

The bath provides digital temperature control with ±1°C stability, allowing precise evaporation of heat-sensitive solvents.
2: Can the Pilot Scale Rotary Evaporator FM-PRE-118 handle solvents with low boiling points?
Yes, with a maximum vacuum of 0.098 MPa, it efficiently evaporates low-boiling-point solvents under reduced pressure.
3: What are the typical applications of the Pilot Scale Rotary Evaporator FM-PRE-118 Rotary Evaporator?
Pilot Scale Rotary Evaporator FM-PRE-118 is widely used for pharmaceutical intermediate synthesis, botanical extraction, chemical process development, and pilot-scale solvent recovery.
Pilot Scale Rotary Evaporators are designed to support high-volume solvent evaporation under controlled vacuum conditions. They are built to handle evaporation capacities ranging from 10 to 50 liters, making them suitable for demanding applications. With electric lift mechanisms and intuitive digital controls, they offer precise, user-friendly operation. These systems maintain excellent thermal stability and efficient condensation through advanced sealing and glassware design. Reliable and performance-driven, they are ideal for pharmaceutical production, chemical synthesis, and large-scale laboratory use.
