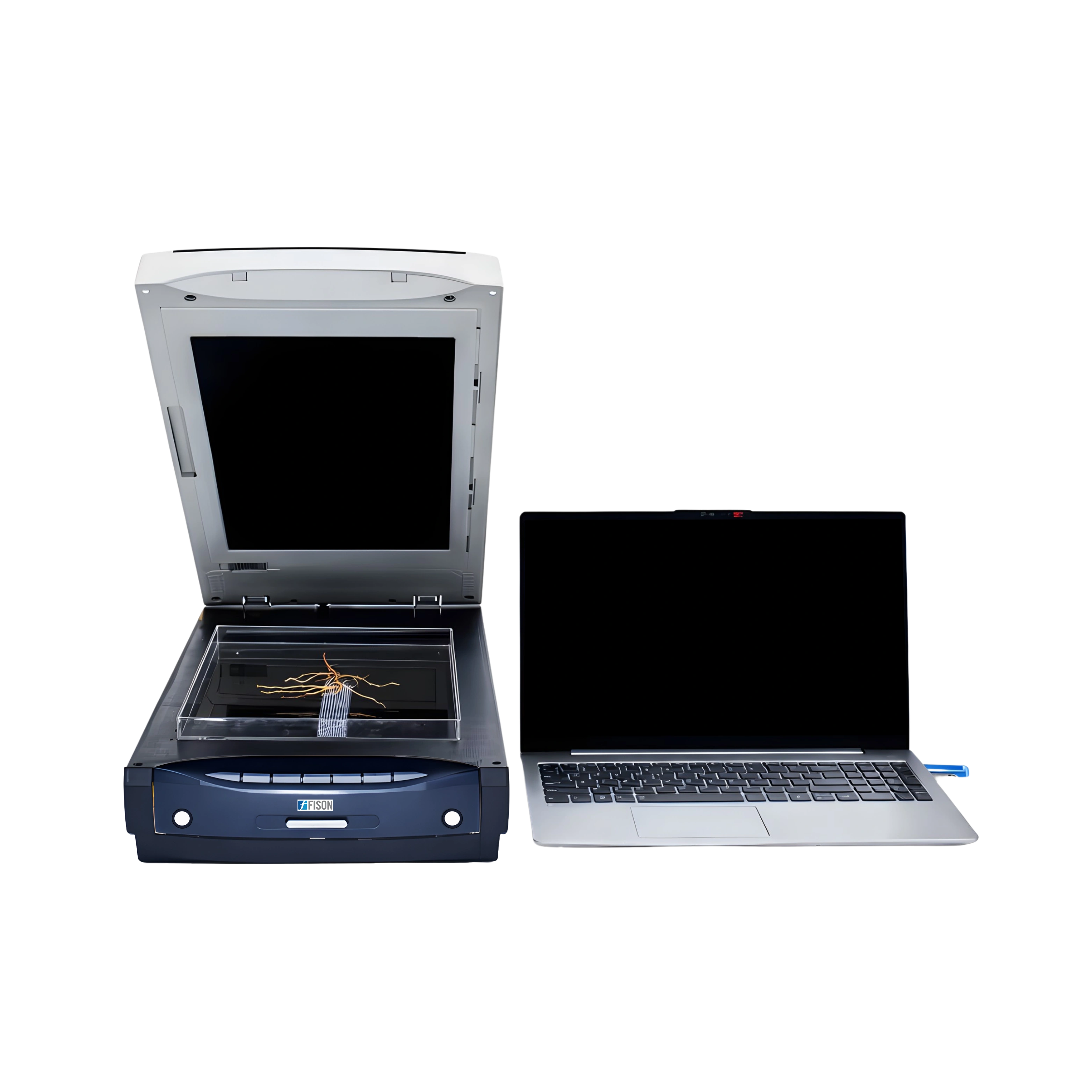

Fison Plant Root Scanner FM-PRS-A101 features 4800 × 9600 dpi optical resolution, dual-light source imaging, and a 0.005 × 0.0026 mm minimum pixel size. The integrated root analysis software supports measurement of root length, diameter, area, volume, branching, and root morphology, enabling detailed analysis of plant root characteristics and structure.
| Scanner Type | Dual-light source color scanner |
| Scanner Format | A4 extended format |
| Optical Resolution | 4800 × 9600 dpi |
| Maximum Resolution | 12800 × 12800 dpi |
| Reflective Scan Area | 355.6 × 215.9 mm |
| Transmissive Scan Area | 320.0 × 203.2 mm |
| Minimum Pixel Size | ≥0.005mm × 0.0026 m |
| Scanning Element | 6-line alternating microlens CCD |
| Scanning Range | 216 × 297 mm |
| Interface | USB 2.0 |
| Scanning Light Source | White cold cathode fluorescent lamp (CCFL) |
| Color Depth | 48-bit |
| Image Formats | TIFF, JPEG |
| Root Diameter | Average, median and maximum diameter |
| Root Topological Analysis | Root connections and relationship angles |
| Batch Analysis | Automated root-system analysis with batch saving |
| Data Export | Excel spreadsheet |
| Operating System | Windows 10 Professional or Ultimate |
Plant Root Scanner FM-PRS-A101 is suitable for plant physiology, botanical, agronomy, and plant science laboratories for root morphology and structural analysis. It supports analysis of root length, diameter, area, volume, branching, and related plant parameters.
