Vacuum Oven FM-VO-B100 Catalog
Overview

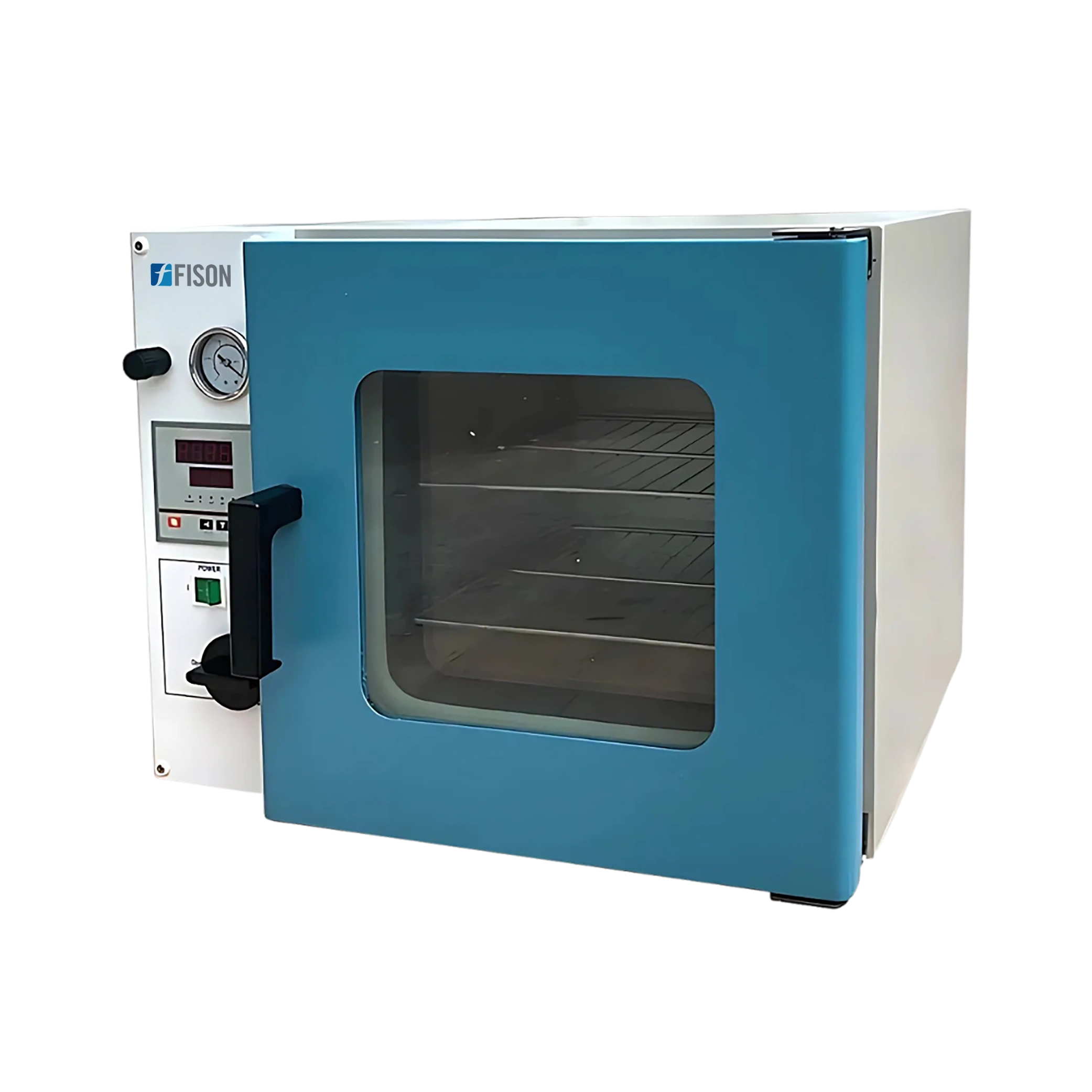

Vacuum Oven FM-VO-B100 operates within a temperature range of 50 to 180℃, ensuring precise thermal control for various processes. It features a 25L capacity, ideal for small to medium-scale drying and heating tasks. It comes without a built-in vacuum pump, allowing users to connect their preferred external pump for customized operation. Our vacuum oven features a digital temperature display showing both the set and actual values for precise monitoring and control.
Specifications:
| Capacity | 25L |
| Temperature range | 50 to 180℃ |
| Temperature fluctuation | ±1% |
| Vacuum degree | <133Pa |
| Vacuum pump | Without |
| Timer | 0 to 999 min |
| Power Consumption | 1000W |
| Power Supply | 220V 50Hz |
| Working size | 300 × 300 × 275 mm |
| Dimension (L×B×H) | 570 × 460 × 460 mm |
| Packing Dimension (L×B×H) | 670 × 540 × 570 mm |
| Net Weight | 42 kg |
| Gross Weight | 54 kg |
Features:
- Microprocessor control
- Glass window door
- Digital running timer display
- PID self-tuning
- Over-temperature alarm
- Automatic operation completion alarm
Applications:
Vacuum Oven FM-VO-B100 is suitable for drying, baking, dewaxing, sterilization, and heat treatment under vacuum conditions. It can be used in pharmaceutical laboratories, electronics manufacturing, and materials research for the heat treatment of sensitive samples.
