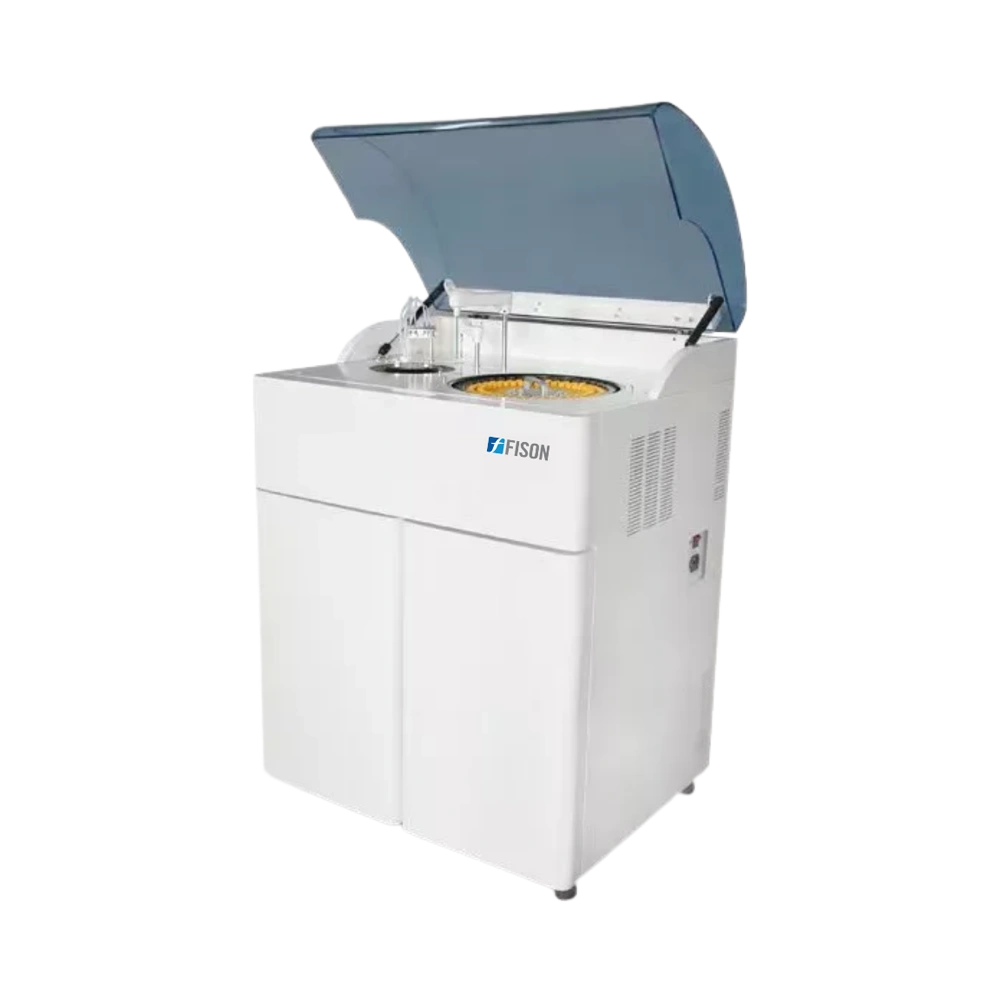

Automatic Chemistry Analyzer FM-ACA-B200
Automatic Chemistry Analyzer FM-ACA-B200 offers 200 tests per hour, enabling high-throughput clinical diagnostics. Supports STAT and routine analysis with seamless workflow integration. Closed reagent system enhances safety and result reliability. Built-in quality control ensures consistent performance. User-friendly interface and LIS connectivity optimize operational efficiency.
Specifications
| Sample Volume | 2 to 30 µl (0.1 µl step) |
| Throughput | 200 tests/hour |
| Sample Dilution | Automatic |
| Sample Positions | 40 pcs |
| Reagent Positions | 80 pcs |
| Reagent Volume | 20 to 300 µl (1 µl step) |
| Water Consumption | 8 L/h |
| Analysis method | One-point end, Two-point end, Fixed-Time, Kinetics |
| Temperature | 2 to 14°C |
| Reusable Cuvettes | 44 pcs |
| Reaction volume | 150 to 350µL |
| Reaction time | Less than or equal to 15 minutes |
| Reaction temperature | 37+0.1°C |
| Light source | Halogen lamp |
| Wavelength | 340 to 700 nm |
| Absorbance range | 0. to 4.0 Abs |
| Resolution | 0.0001 Abs |
| Calibration | Linear and non-linear |
| Mixer | Independent mixer |
| Washing System | Automatic 3 to 4 step washing |
| Interface | Bi-directional LIS USB |
| Operation system | Windows XP, Windows 7, Windows 8 |
| Probe Features | Automatic cleaning, liquid level detection, collision protection, Automatic depth adjusting |
| Power consumption | 1000 VA |
| Power supply | 100 to 220 V, 50/60 Hz |
Frequently Asked Question
1: How Automatic Chemistry Analyzer FM-ACA-B200 STAT samples handled during routine runs?
Automatically prioritizes STAT without interrupting ongoing tests.
2: How Automatic Chemistry Analyzer FM-ACA-B200 long-term accuracy ensured?
Auto-calibration and built-in QC maintain consistent precision.
3: How Automatic Chemistry Analyzer FM-ACA-B200 ensures safety during reagent replacement?
Sealed system prevents exposure and contamination.
4: How are clots or bubbles detected?
Sensors flag abnormal samples before processing.
5: How Automatic Chemistry Analyzer FM-ACA-B200 tracking managed?
Barcode scanning and LIS ensure fast, error-free data flow.
