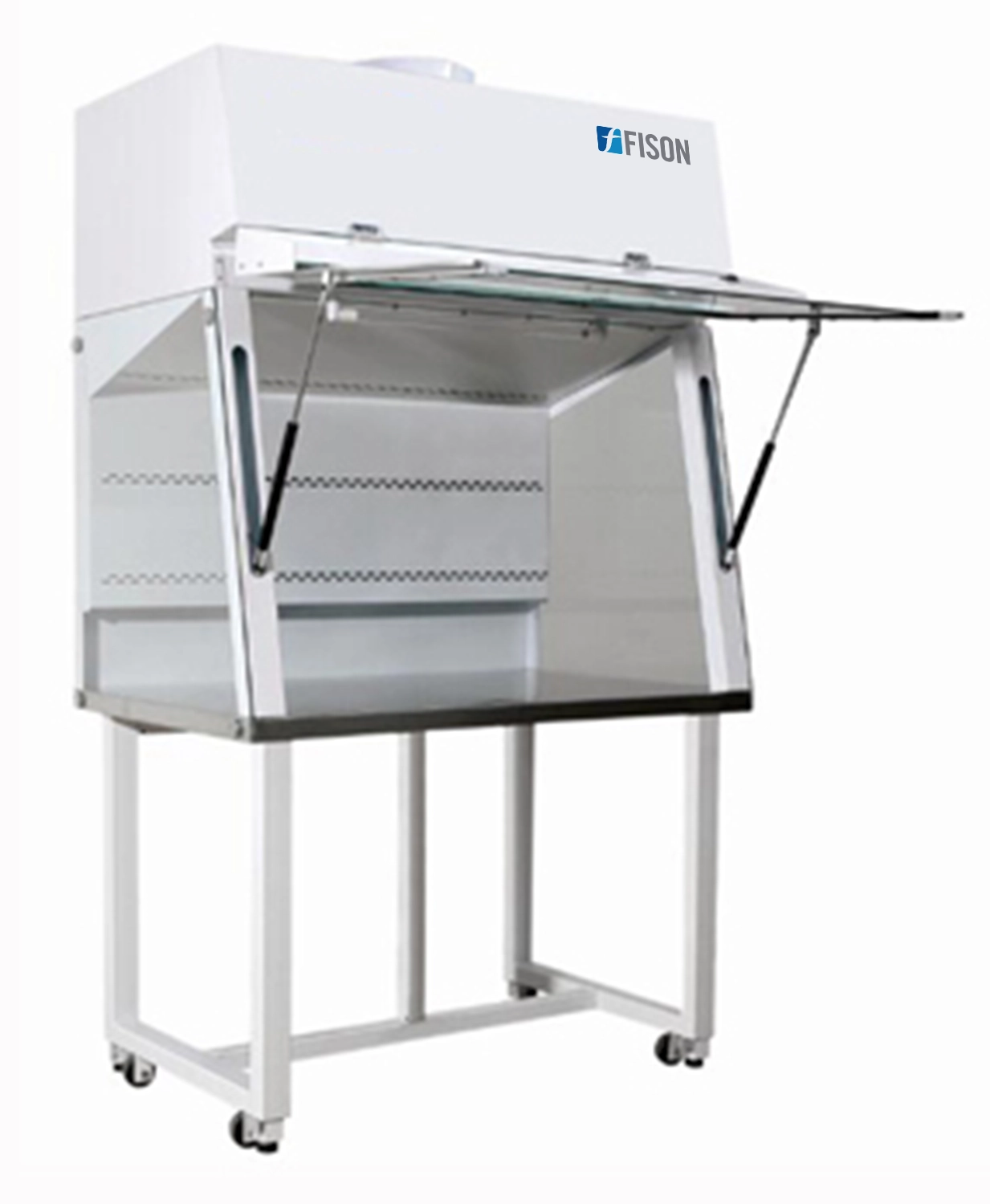

Class I Biosafety Cabinet FM-BSC-A103
Class I Biosafety Cabinet FM-BSC-A103 is Class I type of Biosafety Cabinet suitable for work involving low to moderate risk agent biosafety Levels 1, 2 and 3. It has 99.999 % efficiency at 0.3 μ m HEPA Filter and offers fluorescent 21 W × 2 illuminating lamp. Equipped with negative pressure, personnel protection is made possible by constant movement of air into the work area. It does not protect the product from contamination because un-purified room air constantly enters into work area. Built-in with floor standing type positioned on cold-rolled steel base stand and portable universal caster wheels.
Specifications
| Class type | Class I |
| Biosafety levels | BSL I, II and III |
| HEPA filter | 99.999% efficient at 0.3 µm |
| Airflow velocity | 0.75 to 1.0 m/s |
| Noise | ≤67 dB |
| Illuminating lamp | 21 W ×2 |
| UV lamp | 20 W×1 (emission of 253.7 nm for most efficient decontamination) |
| Body material | Cold-rolled steel with anti-bacteria powder coating |
| Work table material | 304 stainless steel |
| Base stand | Cold-rolled steel |
| Work surface height | 750 mm |
| Caster | Universal caster |
| Power consumption | ≤ 350 W |
| Power supply | 110/220 V±10%; 60/50 Hz |
| Internal dimension (W×D×H) | 968×695×630mm |
| External dimension (W×D×H) | 1100×695×1924 mm |
| Packaging dimension (W×D×H) | 1270×880×2230 mm |
| Gross weight | 185 kg |
Features
- Designed with LCD display with soft touch control panel
- UV lamp for sterilization
- High efficiency, energy saving and low noise
- Equipped with memory function in case of power-failure
- Material used 304 stainless steel work stable and easy for cleaning
- Designed with the negative pressure and unlike conventional fume hood
- Stable air flow system and protecting the environment
Applications
- Used for day to day clean room activities involving high risk pathogens, etiological agents, nonvolatile radio nuclides and limited degree of low toxic chemicals for various applications in research labs of all the branches of medical, agriculture, basic and applied science.
Accessories
- Illumination lamp
UV lamp
Base stand
